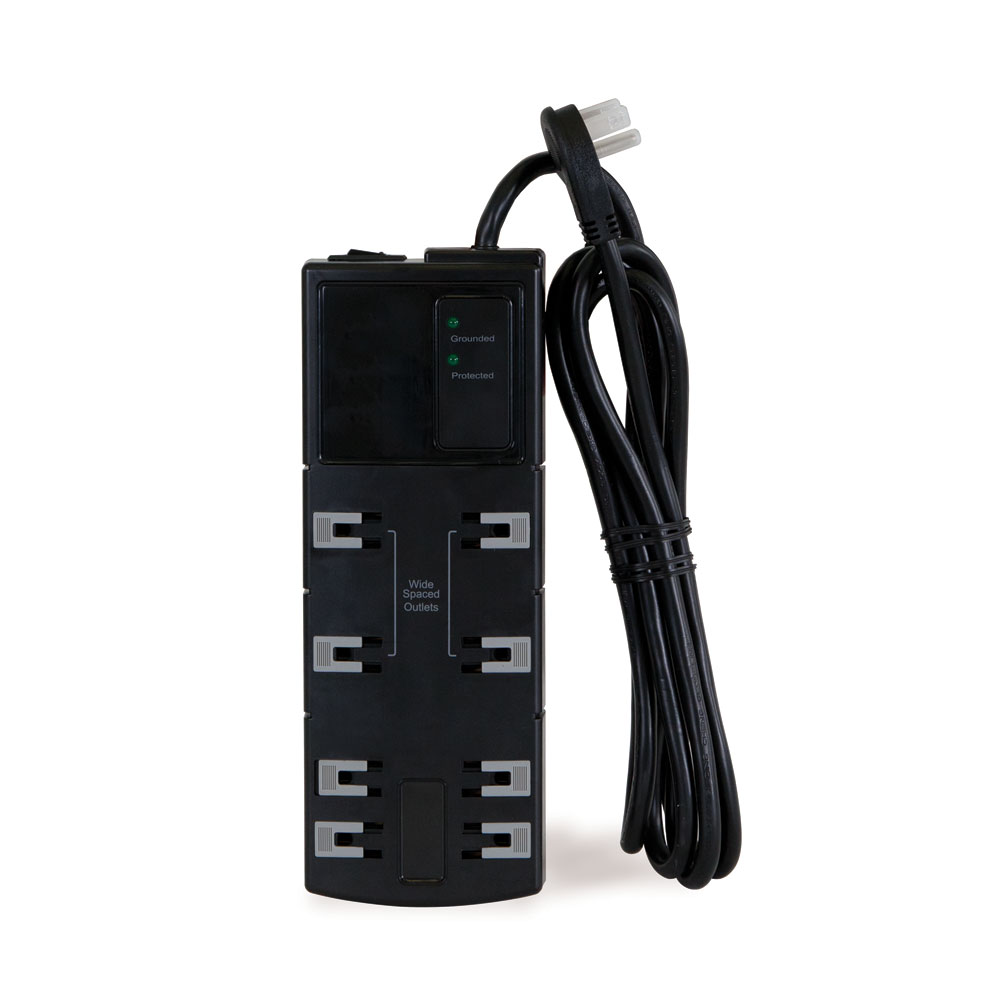

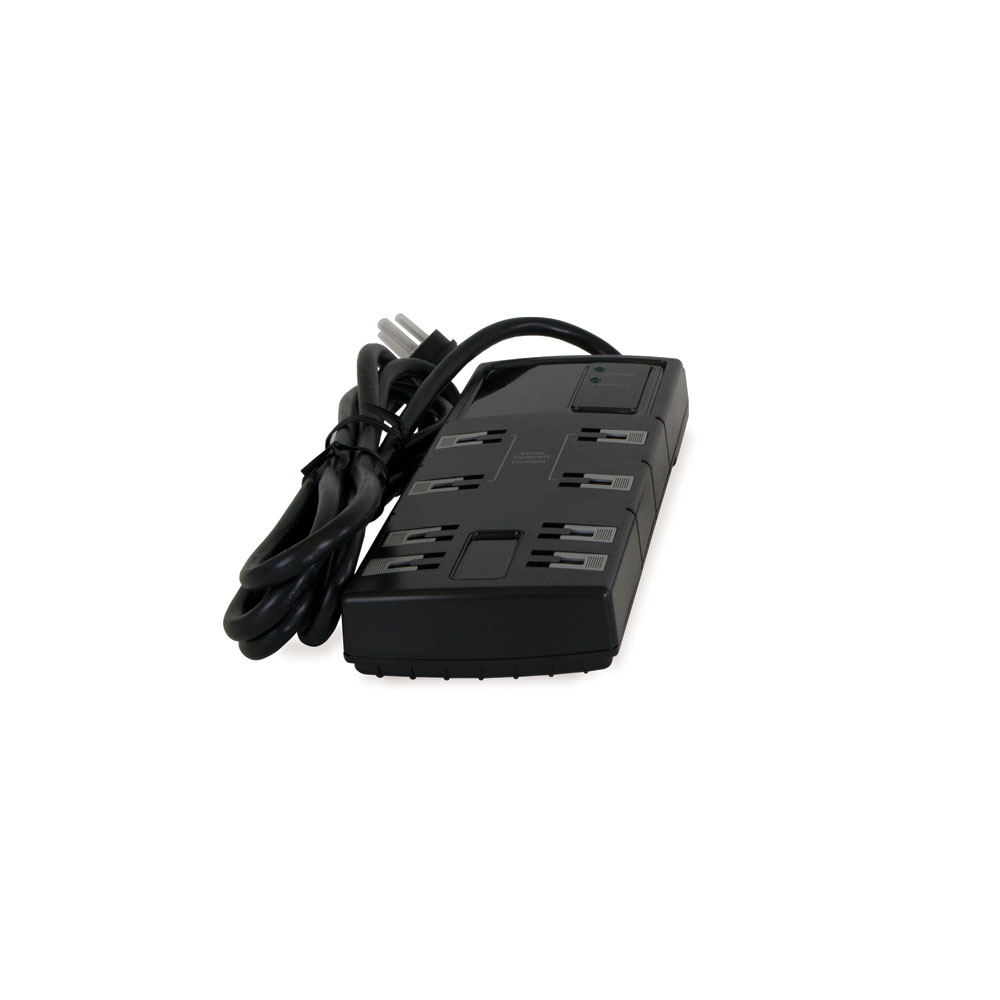

8 Outlet Power Strip
8 Outlet Power Strip
The 8 Outlet Power Strip can charge devices directly inside your network cabinet or enclosure.
Limited Lifetime Warranty
Description
With the 8 Outlet Power Strip you can charge devices directly inside your network cabinet or enclosure. This power strip has an eight foot cord giving you room to maneuver it from inside the cabinet to a wall outlet. The 8 Outlet Power Strip is suitable with many network products including a LINIER® Full Size Server Cabinet, SOHO Cabinet, Corner Wall Mount Cabinet, and the Wall Mount Charging Station.
- Eight outlets
- 8 ft. power cord
- 1,800 Joules Surge Protection
- MOV surge protection
- 125 volt clamping voltage
- 15 amp circuit breaker
- UL Listed: UL1449 3rd Edition, cUL
- EMI/RFI noise filters
- RoHS compliant
- Limited Lifetime Warranty
Features
Quality Surge Protector
This 125V/15A surge protector is equipped with eight outlets to keep multiple devices running at their optimal level.
Compact Design
The 8 Outlet Power Strip has a sleek and compact design making it easy to store on rackmount shelves and between installed components if necessary.
Specifications
| Part Number | 1918-1-000-08 |
| Width | 3.92" |
| Depth | 11.07" |
| Height | 1.45" |
| Weight | 3.0 lbs. |
| Shipping Dimensions | 3" L x 9" W x 20" H |
| Material(s) | Molded Injected Plastic |
| Color/Finish | Black Casing |
| UPC | 879447005578 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
| TAA Compliant | Yes |
| Voltage | 125V |
| Switch | Non Lighted On/Off - Reset |
| Circuit Breaker | 15 Amp |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle - 45° Offset |
| Outlets - Total | 8 |
| Outlet Type | NEMA 5-15R |
| Outlets - Widely Spaced | 4 |
| Surge Suppression | 1,800 Joules |
| Maximum Surge Current | 90,000 Amps |
| Maximum Surge Current H-N | 30,000 Amps |
| Maximum Surge Current H-G | 30,000 Amps |
| Maximum Surge Current N-G | 30,000 Amps |
| Clamping Voltage | 400V (L-N, L-G, N-G) |
| Response Time | < 1 nanosecond |
| EMI/RFI Filtration | 150KHz to 100MHz |
| Attenuation | Up to 32dB |
| Indicators | Protected (Green), Grounded (Green) |
| Keyhole Mounting Slots | Yes |
| Cord Management | Yes |
| Safety Covers | Yes |
What's in the Box
| Item | Quantity |
|---|---|
| 8 Outlet Power Strip | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 8 Outlet Power Strip (1918-1-000-08) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 517.19 KB |
Download |
Title 8 Outlet Power Strip (1918-1-000-08) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 51.97 KB |
Download |
Title 8 Outlet Power Strip (1918-1-000-08) Instructions |
Type Instructions |
Date 04/22 |
Version 1 |
File Size 266.16 KB |
Download |
Title 1918-1-000-08.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 976.52 KB |
Download |
