12-24 Cage Nuts - 2500 Pack

Item #:0200-1-003-03

12-24 Cage Nuts - 2500 Pack

Item #:0200-1-003-03
Made in the USA
Certifications
RoHS Compliant
Add to List
Description

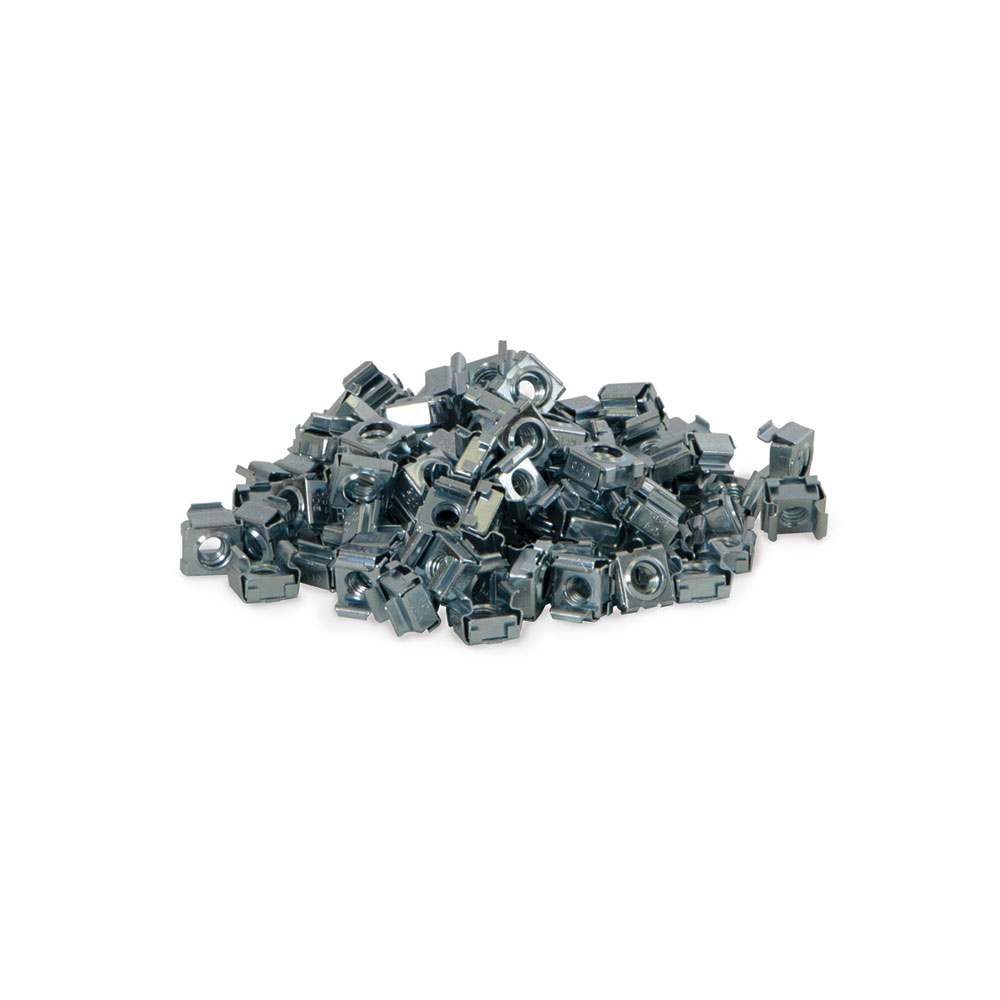

The Kendall Howard 12-24 cage nuts create a threaded mounting hole for mounting equipment on to universal rack rails commonly found in server enclosures, open frame racks, and wall mount cabinets. Universal mounting rails, also known as cage nut style rails, are the most common and preferred type of rails used on the market today.
  • Quantity: 2500
  • Thread Size: 12-24
  • Snap-in Design
  • RoHS compliant
  • Made in the USA
Features
Snap-in Design

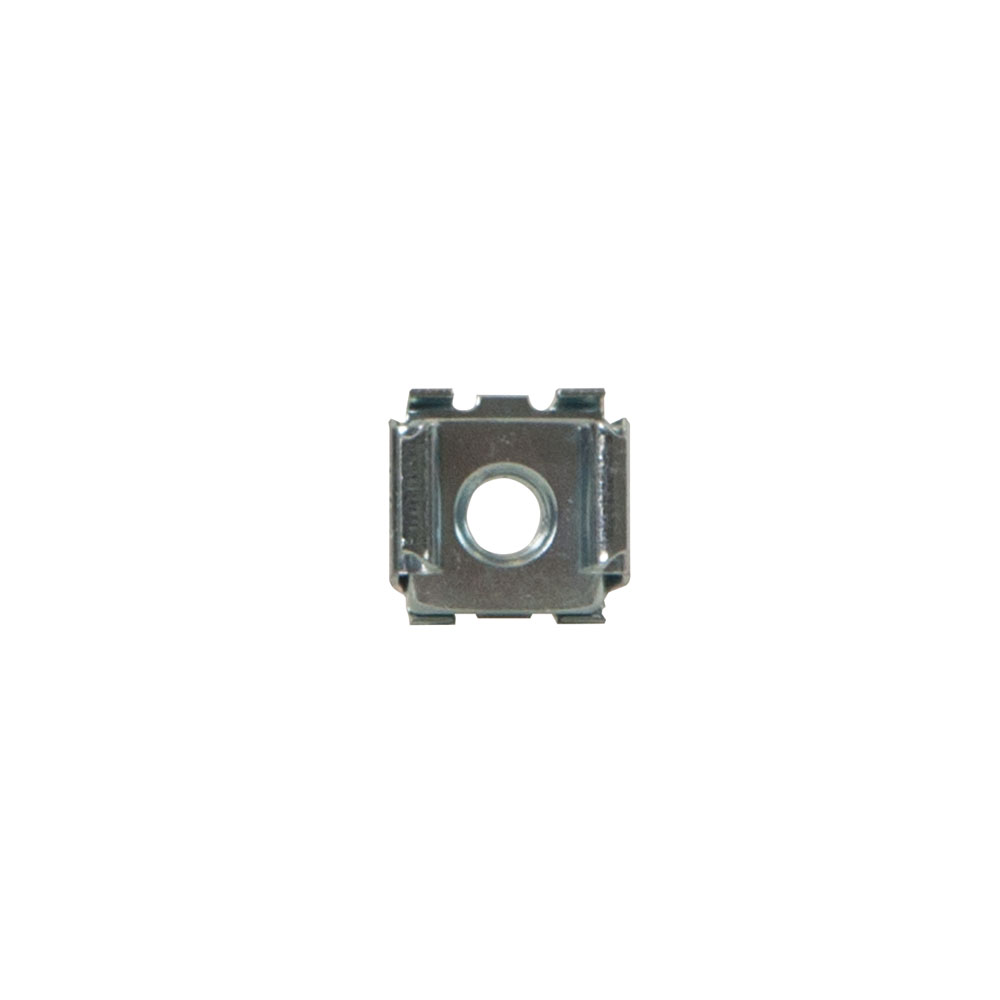

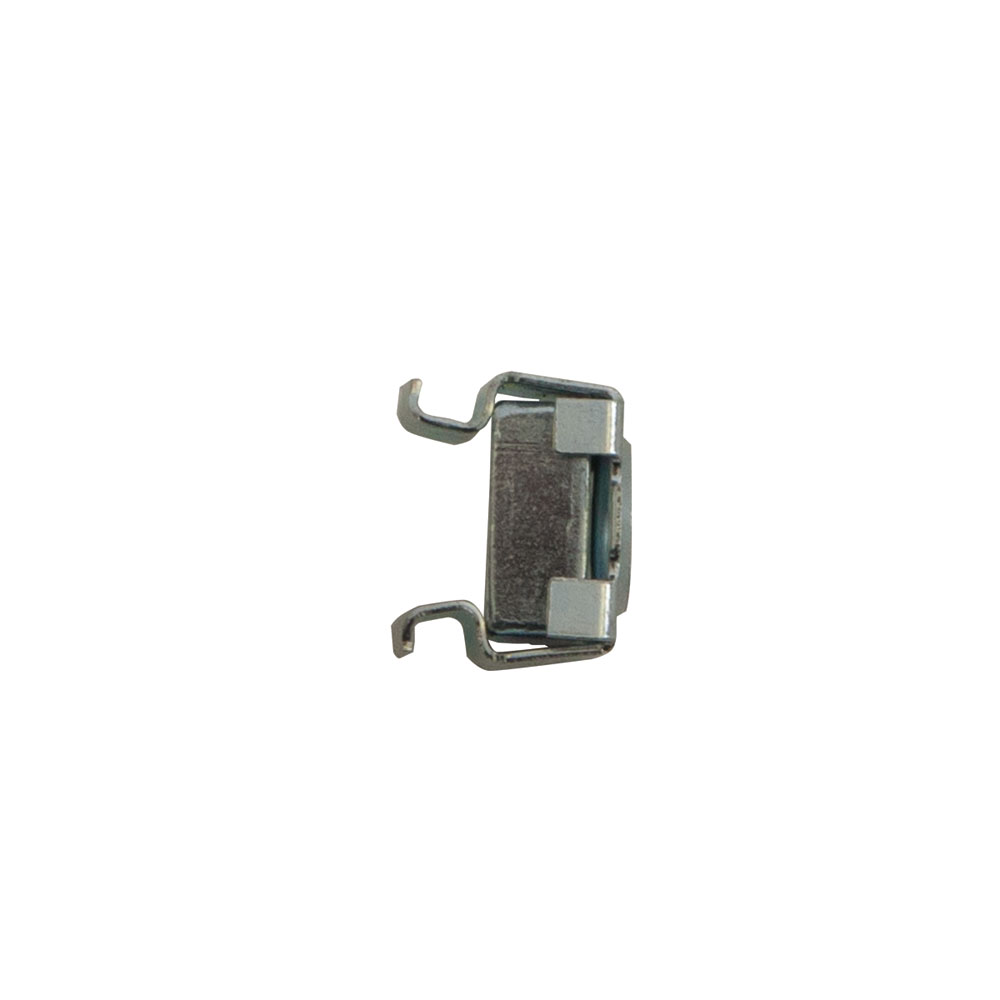

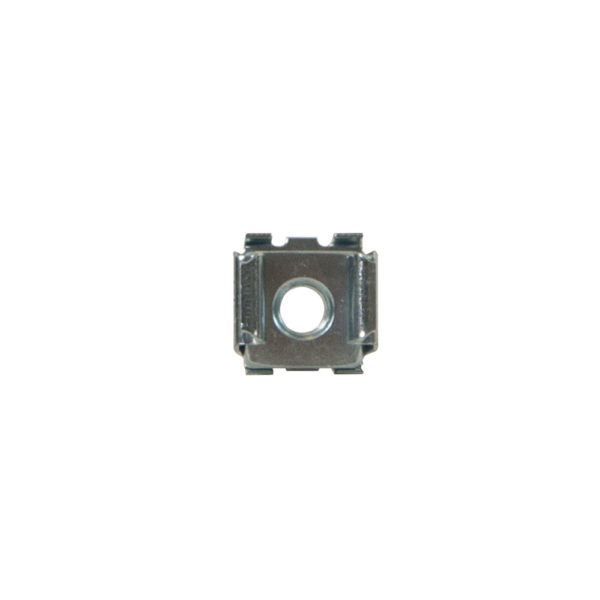

Captive nut and spring steel cage feature wings that can be compressed to snap into the square holes found in universal/punched panel rails. Unlike slide on cage nuts, this design locks the nut securely in place.

Easily Replaced

Take away the hassle of dealing with stripped holes in tapped rails. If you strip a cage nut they can easily be replaced in the field, saving you time and money.

Choose Your Size

Using universal rack rails and cage nuts gives you the flexibility to use whatever size hardware you prefer. You can even use multiple sizes in the same installation. So now you can use smaller rack screws and cage nuts for lightweight rack shelves, cable managers, and spacer blanks, and larger hardware for heavier equipment such as servers, UPS’s and KVM switches.

Added Strength

The construction and materials used are better suited for threading than what is used in full size tapped rails. This provides a stronger, more durable fastening solution.

Specifications
Part Number 0200-1-003-03
Width 0.52"
Depth 0.36"
Height 0.5"
Weight 25.50 lbs.
Shipping Dimensions 9" L x 9" W x 9" H
Material(s) Steel
Color/Finish Clear Zinc Finish
UPC 879447003154
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
12-24 Cage Nuts 2500
