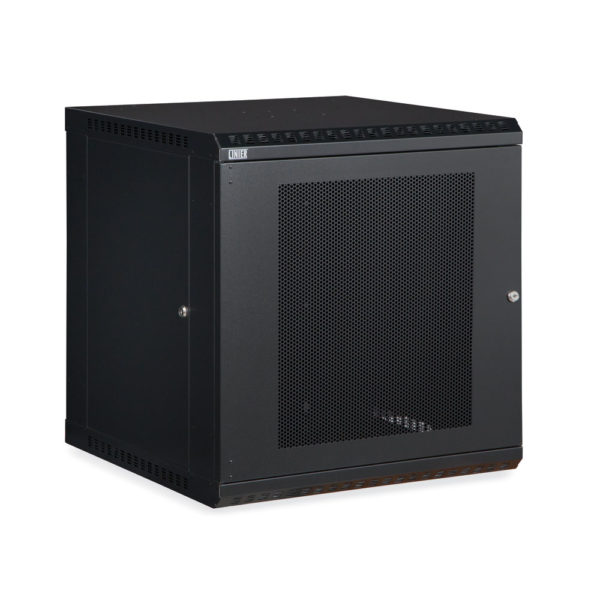

12U LINIER® Fixed Wall Mount Cabinet - Vented Door
12U LINIER® Fixed Wall Mount Cabinet - Vented Door
- Includes one locking vented door
- Locking side panels
- 250 lb. weight capacity
- One set of cage nut style mounting rails
- Mounting depth: 22.50"
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Innovative engineering and outside-of-the-box thinking paved the way for this durable, American-made yet economical wall mount enclosure.
Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
The included cage nut style rails fully adjust in 1″ increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.
Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
The locking feature provides additional security for all three access points to keep your valuable rack mounted equipment safe from unauthorized use.
Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.
| Part Number | 3142-3-001-12 |
| Width | 23.50" |
| Depth | 23.50" (Usable 22.50") |
| Height | 24.71" |
| Weight | 56.00 lbs. |
| Shipping Dimensions | 28" L x 28" W x 31" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447005363 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | FedEx Ground |
| Item | Quantity |
|---|---|
| 12U LINIER Fixed Wall Mount Cabinet - Vented Door | 1 |
| Hardware Included | 1 |
| Set of Cage Nut Style Mounting Rails | 1 |
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 12U LINIER® Fixed Wall Mount Cabinet - Vented Door (3142-3-001-12) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 12U LINIER® Fixed Wall Mount Cabinet - Vented Door (3142-3-001-12) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 12U LINIER® Fixed Wall Mount Cabinet - Vented Door (3142-3-001-12) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 1 MB |
Download |
Title 3142-3-001-12.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 8 MB |
Download |
-
