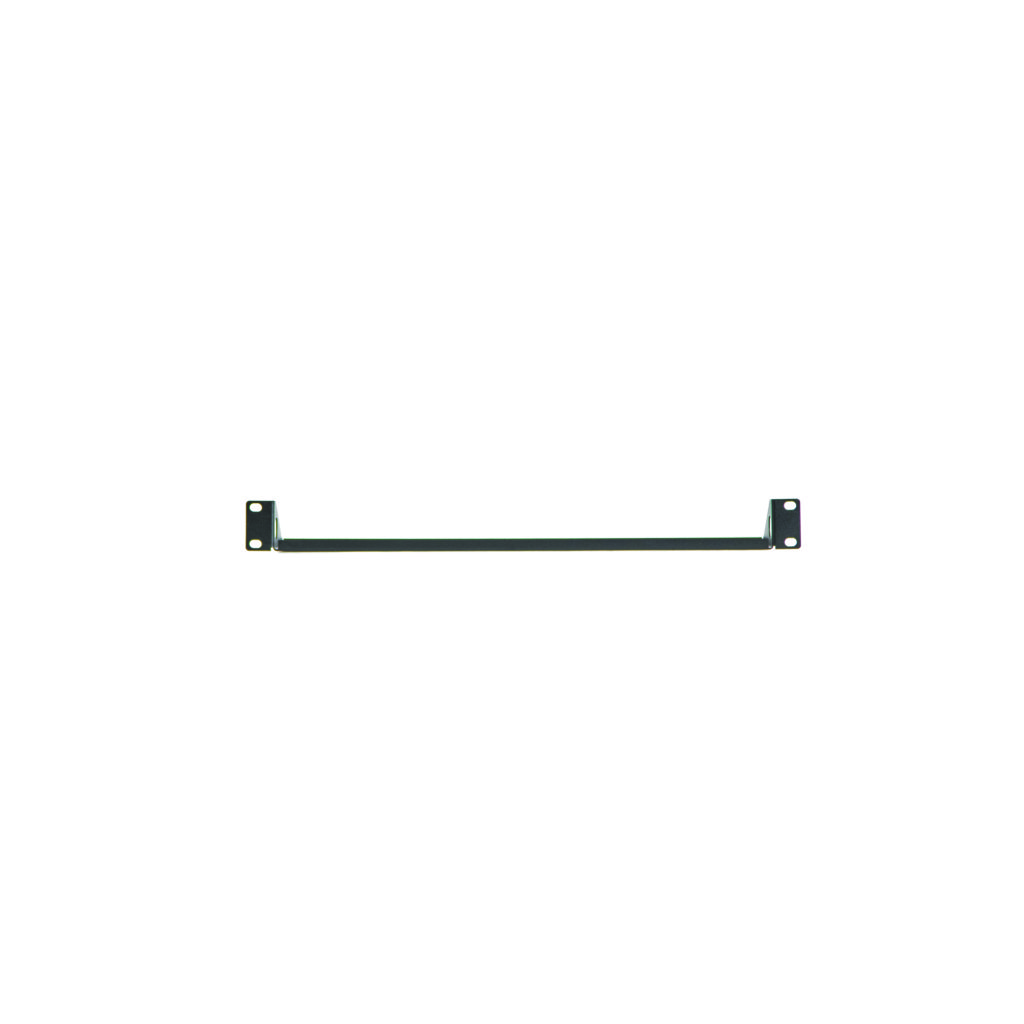

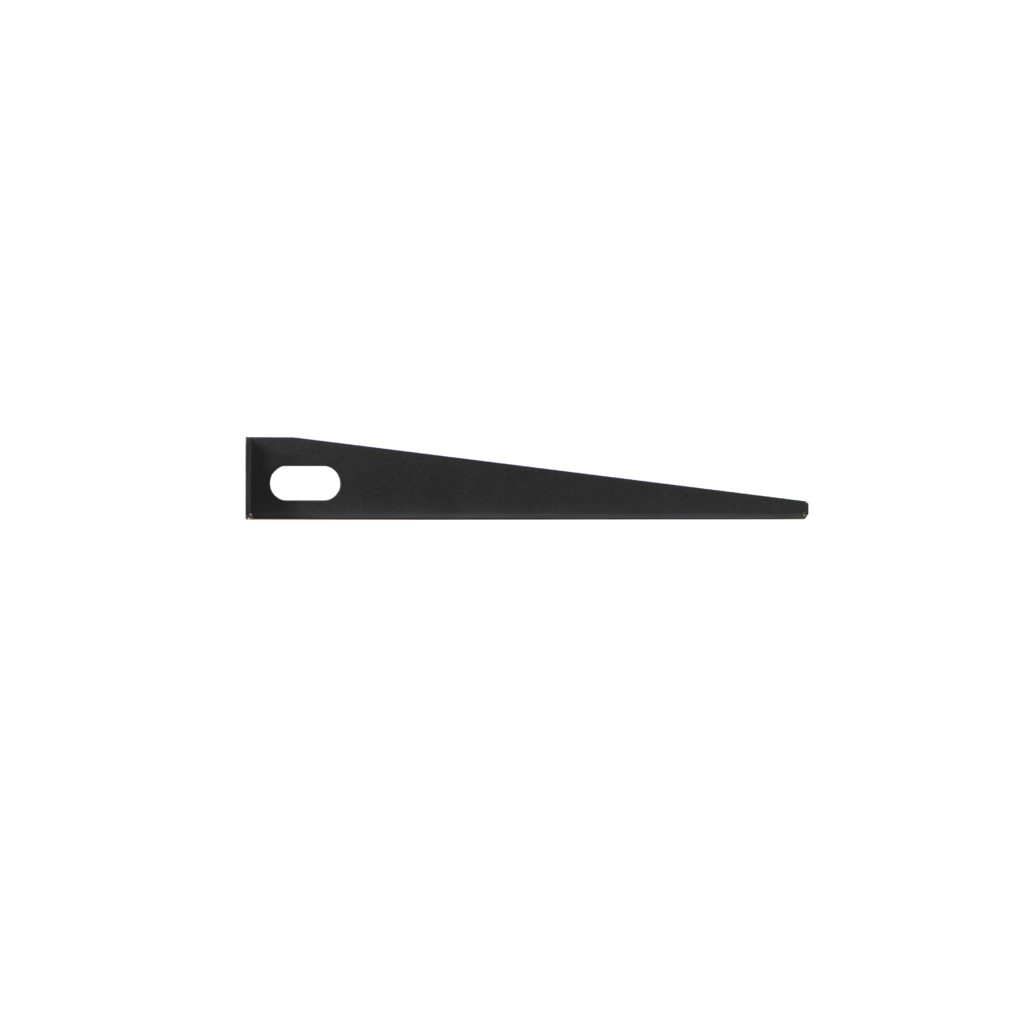

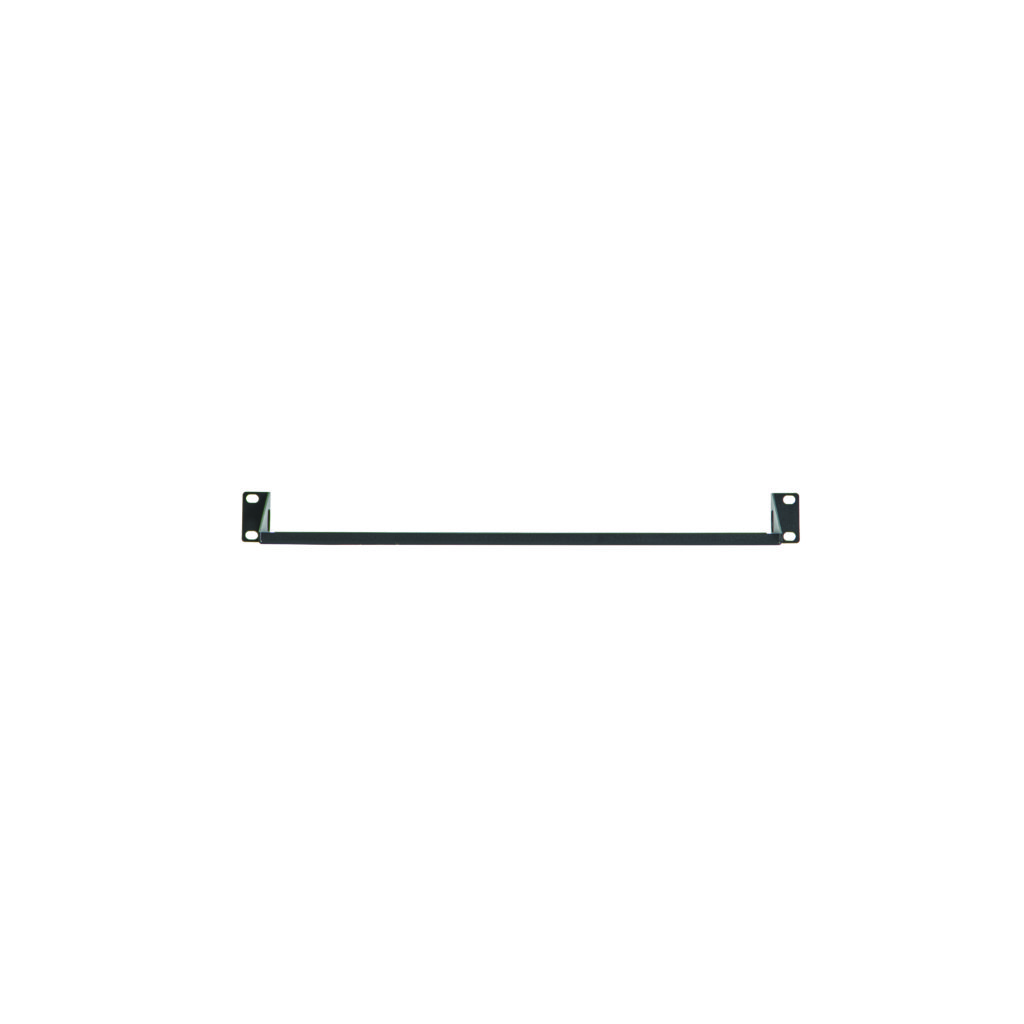

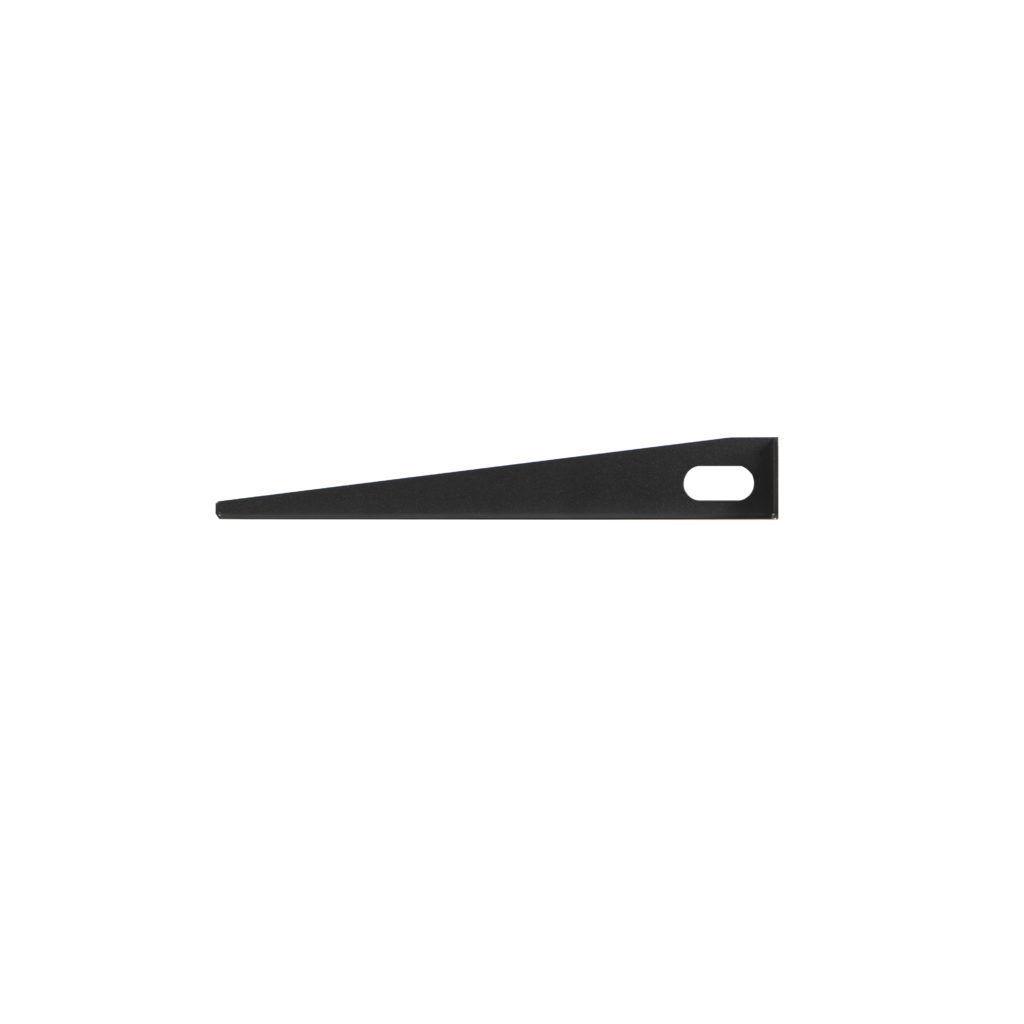

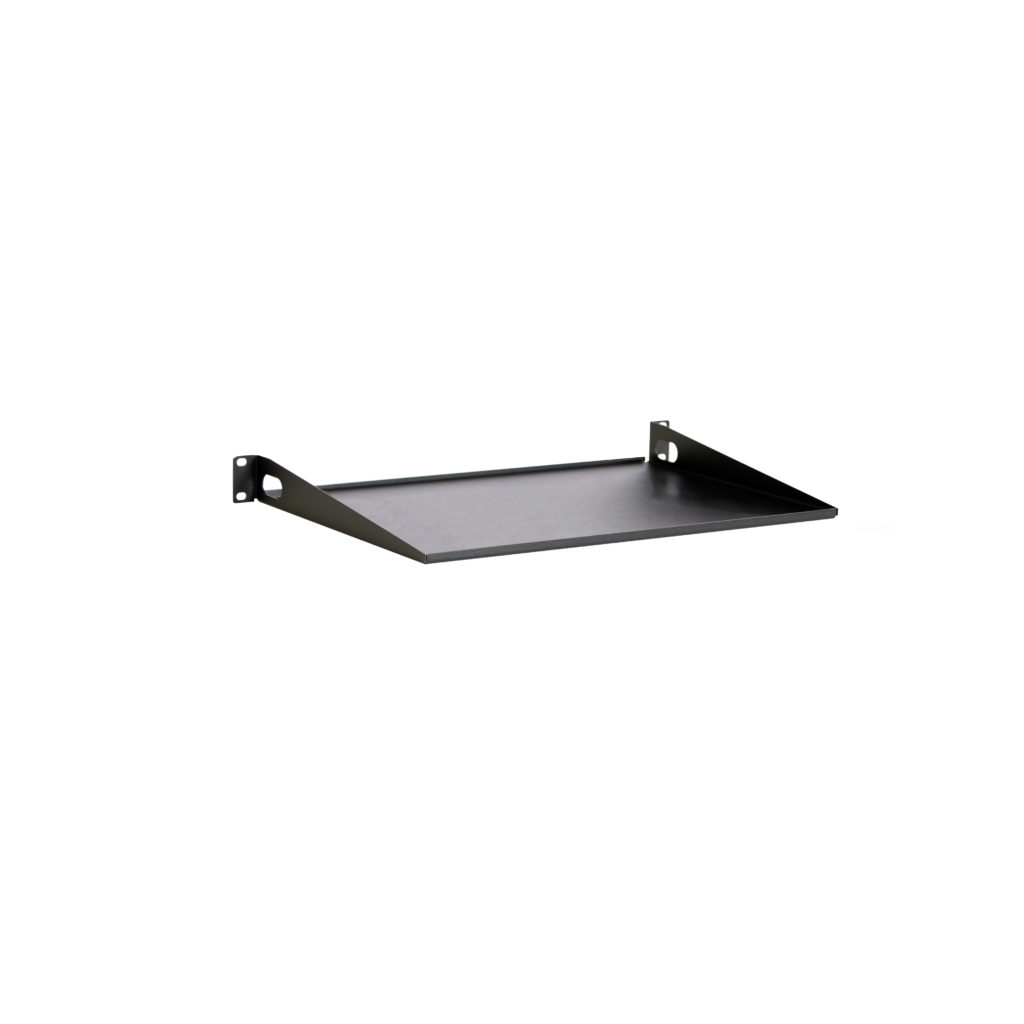

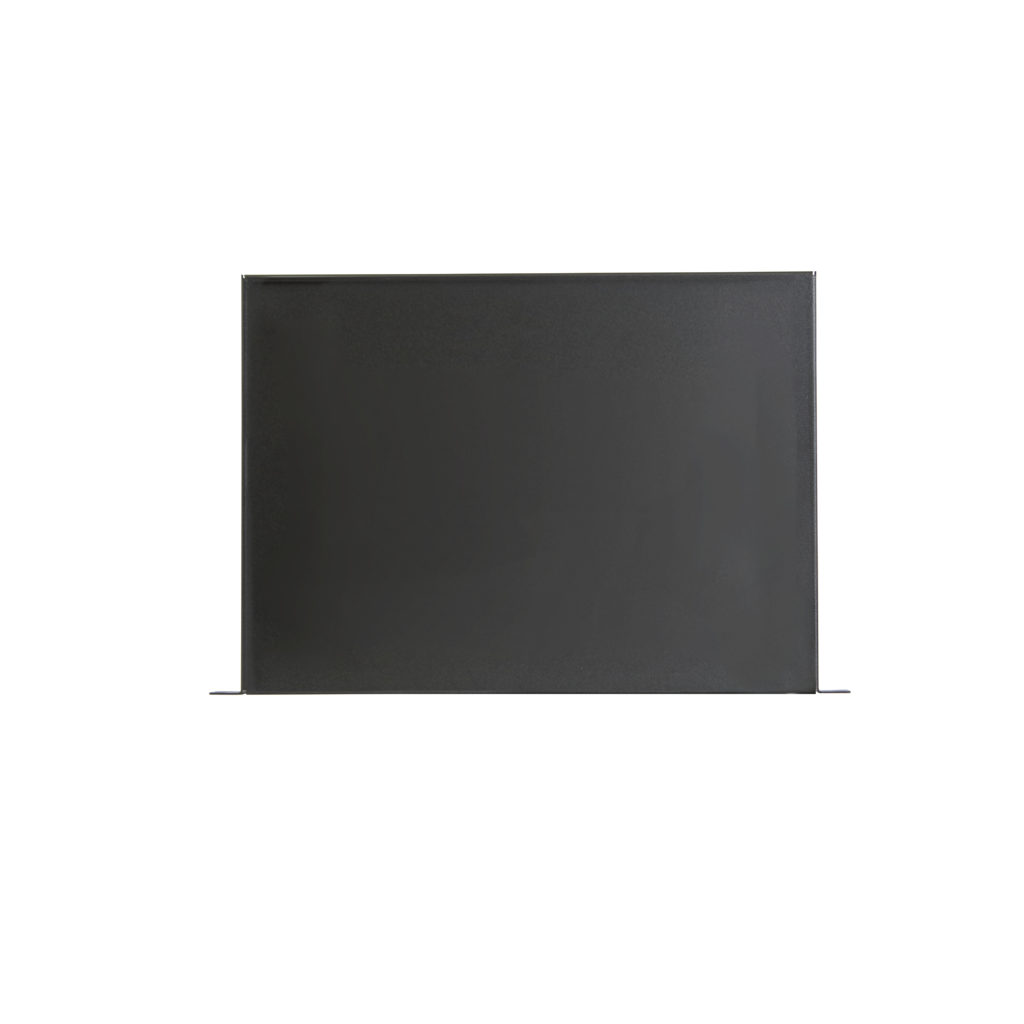

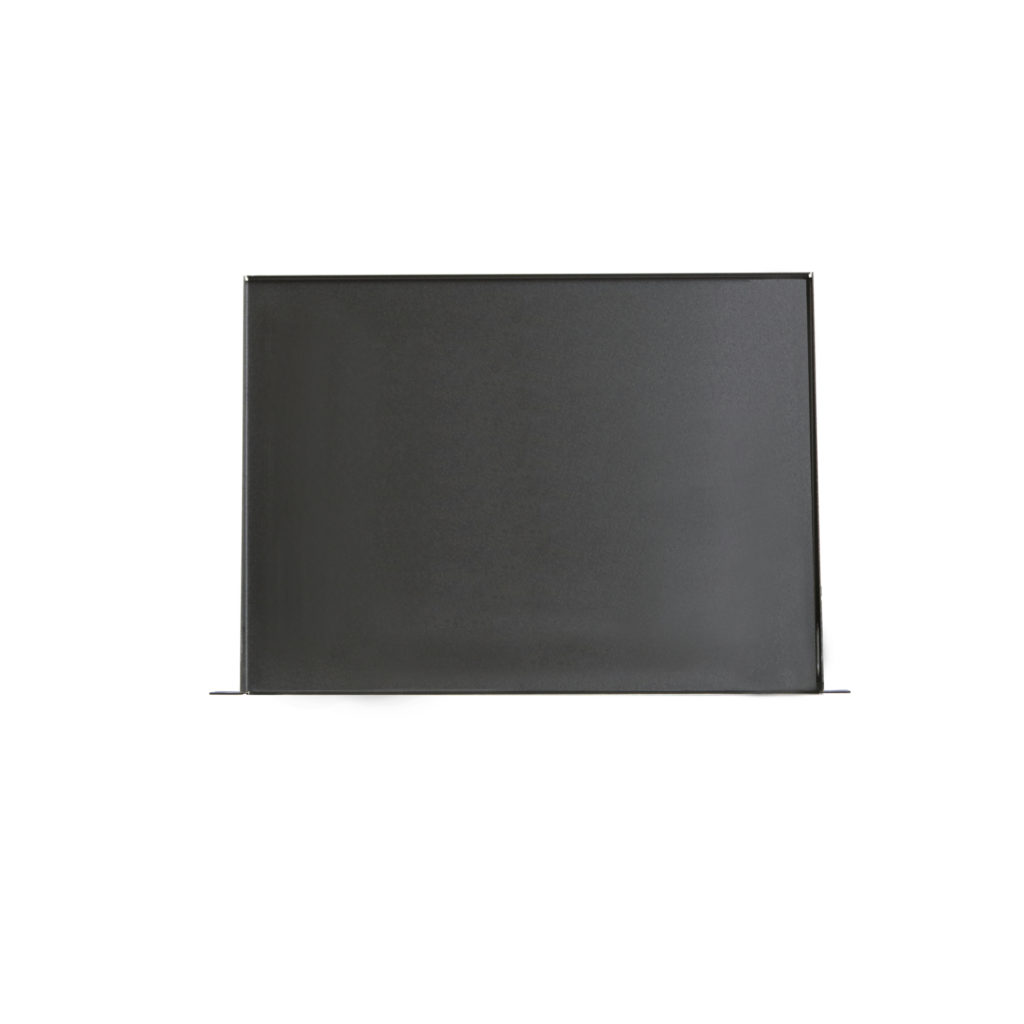

1U 12" Light Duty Rack Shelf
1U 12" Light Duty Rack Shelf
Rated to hold up to 45 lbs., this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 1U 12" Light Duty Rack Shelf constructed of top grade US steel. Rated to hold up to 45 lbs., this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment.
- 12" depth
- 46 lb. weight capacity
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Medium Duty
Constructed of a top grade US steel providing a quality shelf to support your non-rack mount equipment at a cost conscious price point.
Easy to Install
Four mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
2-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Rounded Corners
Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers’ hands while handling.
Specifications
| Part Number | LDRS1U12 |
| Width | 19" |
| Depth | 12" |
| Height | 1.72" |
| Weight | 4.00 lbs. |
| Shipping Dimensions | 12.5" L x 20.25" W x 2.5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447001693 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 1U 12" Component Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1U 12" Light Duty Rack Shelf (LDRS1U12) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 171 KB |
Download |
Title 1U 12" Light Duty Rack Shelf (LDRS1U12) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title Light Duty Rack Shelf LDRS Instructions |
Type Instructions |
Date 04/20 |
Version 1 |
File Size 628 KB |
Download |
Title LDRS1U12.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 39 KB |
Download |
