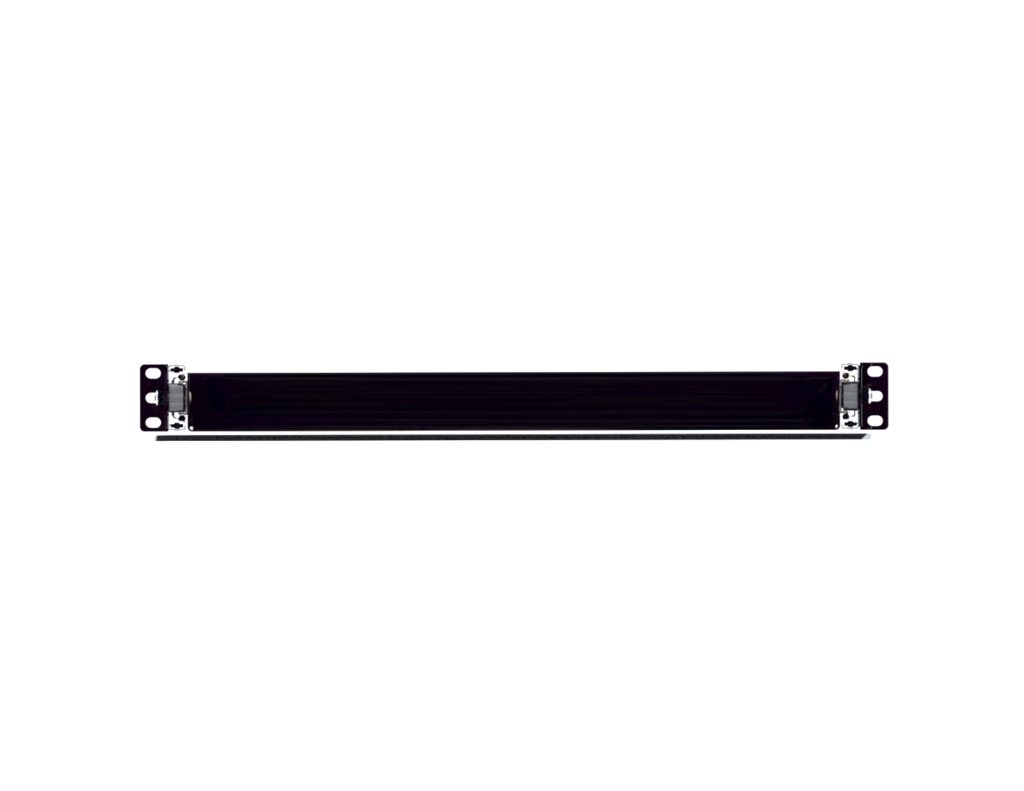

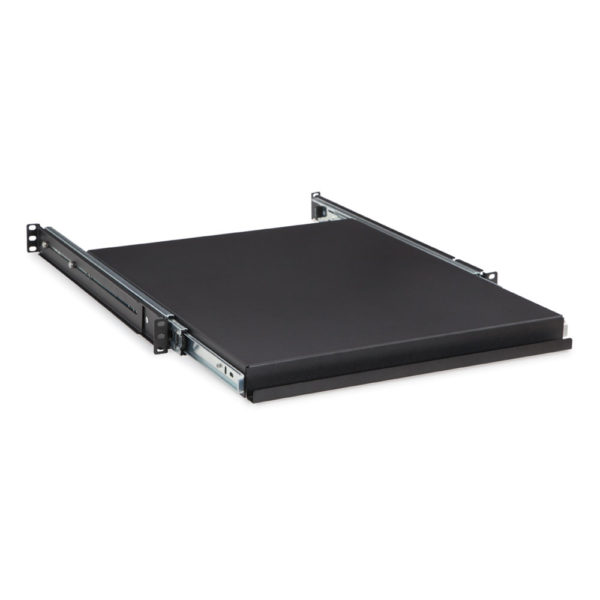

1U 20" Rack Mountable Sliding Shelf
1U 20" Rack Mountable Sliding Shelf
The 1U 20" Rack Mountable Sliding Shelf is perfect for servers, keyboards, KVM's, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 1U 20" Rack Mountable Sliding Shelf is perfect for servers, keyboards, KVM's, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment. The built-in front lip makes sliding the shelf in and out easy, and the 4-point adjustable mounting make this sliding rack shelf a smart addition to any network rack or cabinet.
- 20" depth
- 100 lb. weight capacity
- 17.72" maximum slide extension
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Adjustable Mounting Depth
The sliding shelf can be mounted in 4-post racks and cabinets with various depths. The 4-point mounting style can adjust from 19″ to 28″ deep to suit your particular network racking solution.
18" Extension
The ball-bearing rail extension smoothly slides out 18″ to easily access the back of components and devices.
Rounded Corners
Sharp edges cannot only cause damage to cabling and/or equipment, but can also be a safety hazard for users. At Kendall Howard, we round these corners for a better quality product.
Optional Drawer
The innovative design can be flipped over to be used as a small rack mountable drawer.
Ventilation
The venting pattern allows for maximum air flow, especially helpful for heat generating equipment.
Specifications
| Part Number | 1922-3-300-01 |
| Width | 19" |
| Depth | Adjustable 19" - 28" |
| Height | 1.72" |
| Weight | 15.00 lbs. |
| Shipping Dimensions | 23" L x 24" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000399 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 20" Rackmountable Sliding Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1U 20" Rack Mountable Sliding Shelf (1922-3-300-01) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 308.96 KB |
Download |
Title 1U 20" Rack Mountable Sliding Shelf (1922-3-300-01) Data Sheet |
Type Data Sheet |
Date 11/21 |
Version 1 |
File Size 77.84 KB |
Download |
Title 1922-3-300-01.STEP |
Type 3D CAD |
Date 12/21 |
Version 1 |
File Size 6.35 MB |
Download |
Title 1U 20″ Rack Mountable Sliding Shelf 1922-3-300-01/1922-3-400-01 |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 266.39 KB |
Download |
