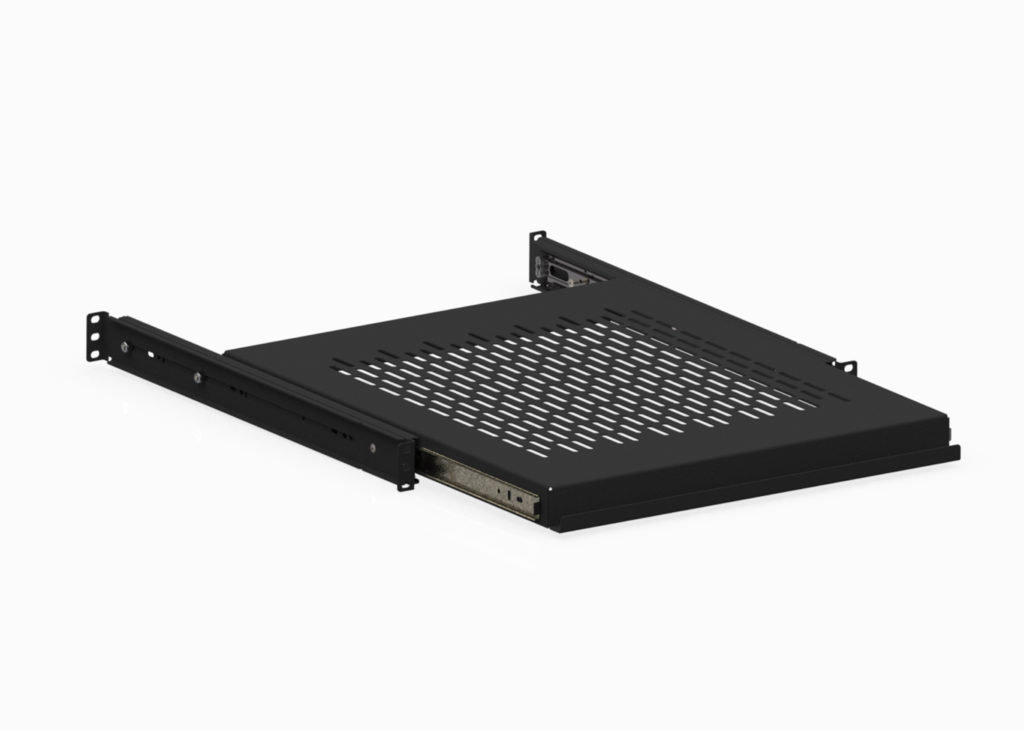

1U 20" Vented Rack Mountable Sliding Shelf
1U 20" Vented Rack Mountable Sliding Shelf
Our sliding rack shelves are perfect for servers, keyboards, KVMs, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
Kendall Howard manufactures and stocks two models of our sliding rack shelves (solid and vented), each holding up to a 100 lbs. Our sliding rack shelves are perfect for servers, keyboards, KVMs, switches, or any other component that you want the ability to slide out, either for convenience or to access the back of the equipment.
- Four mounting holes per U space
- 20" depth
- 100 lb. weight capacity
- Mounting depth adjusts from 19" to 28"
- 17.72" maximum slide extension
- Rounded corners
- 19" EIA compliant
- Easy to install
- Made in the USA
- Limited Lifetime Warranty
Features
Adjustable Mounting Depth
The Kendall Howard 20″ deep Vented Sliding Rack Shelf has a 100 lb. maximum weight capacity. The shelf surface is 20″ deep and 16.5″ wide.
18" Extension
The shelf extends a full 18″ out of the rack making it easy to assemble the back of mission control components and maintain your network equipment.
Ventilation
The venting pattern allows for maximum air flow.
Mounting Options
The mounting ears will mount in any 19″ EIA compliant rack with a minimum mounting depth of 19″ and a maximum mounting depth of 28″. It has a built-in lip to make sliding them in and out easy. Due to their innovative design, the 20″ solid sliding rack shelf can be used as a 1U drawer.
Warranty
All Kendall Howard rack shelves are made in the USA and are backed by our Limited Lifetime Warranty.
Specifications
| Part Number | 1922-3-400-01 |
| Width | 19" |
| Depth | Adjustable 19" - 28" |
| Height | 1.72" |
| Weight | 14.00 lbs. |
| Shipping Dimensions | 23" L x 24" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447002195 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 20" Vented Rack Mountable Sliding Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1U 20" Vented Rack Mountable Sliding Shelf (1922-3-400-01) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 309 KB |
Download |
Title 1U 20" Vented Rack Mountable Sliding Shelf (1922-3-400-01) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 162 B |
Download |
Title 1U 20" Vented Rack Mountable Sliding Shelf (1922-3-400-01) Data Sheet |
Type Data Sheet |
Date 09/19 |
Version 1.0 |
File Size 78 KB |
Download |
