1U 6" Light Duty Rack Shelf

Item #:LDRS1U6

1U 6" Light Duty Rack Shelf

Item #:LDRS1U6
Rated to hold up to 45 lbs., this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description

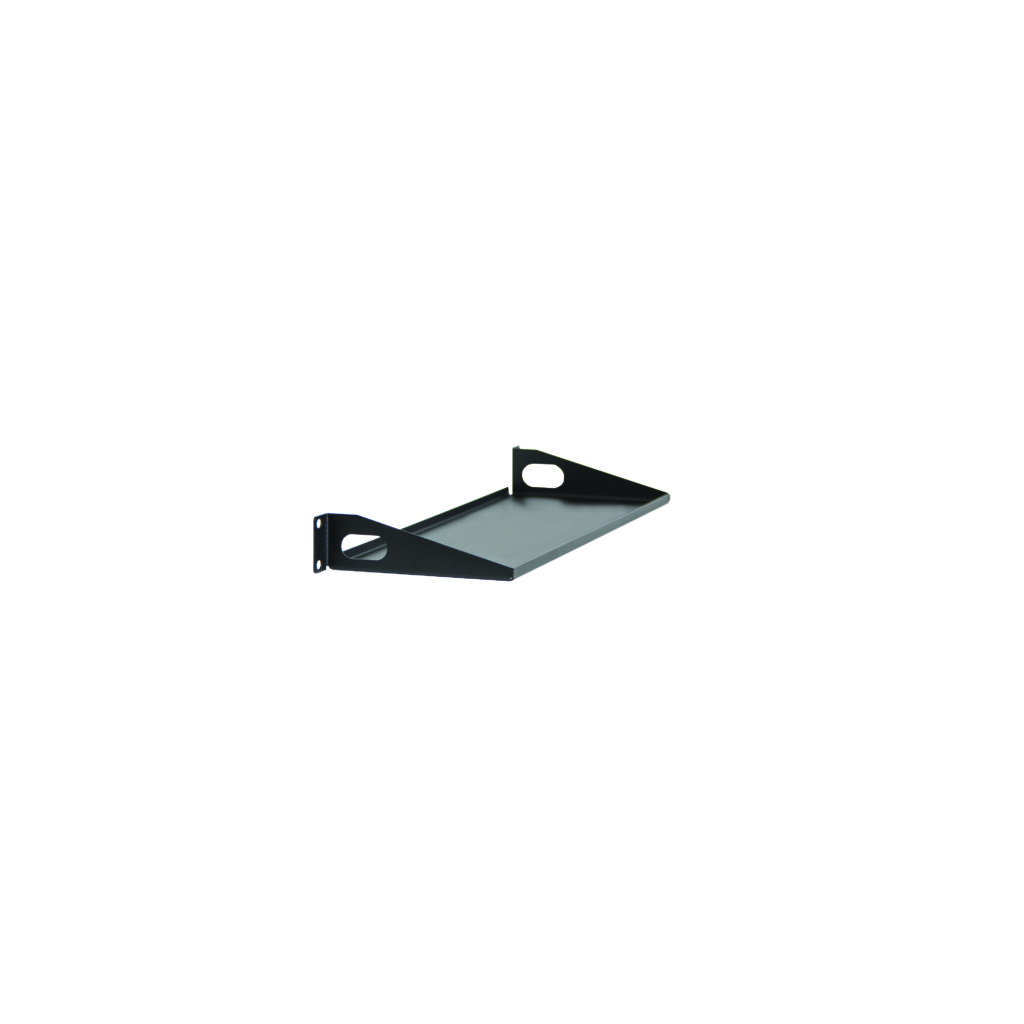

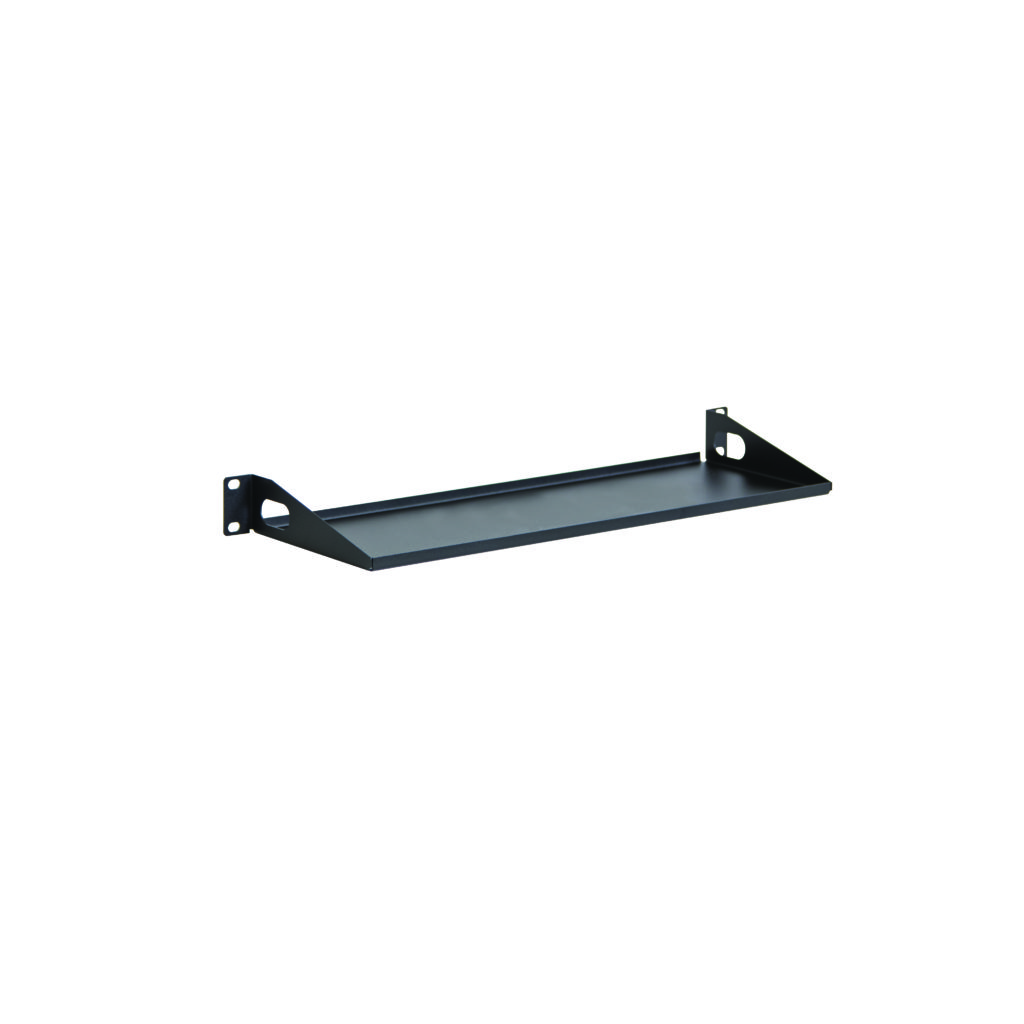

The Kendall Howard 1U 6" Light Duty Rack Shelf constructed of top grade US steel. Rated to hold up to 45 lbs., this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment.
  • 6" depth
  • 45 lb. weight capacity
  • 250 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Medium Duty

Constructed of a top grade US steel providing a quality shelf to support your non-rack mount equipment at a cost conscious price point.

Easy to Install

Four mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.

2-Point Mounting

Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.

Rounded Corners

Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers’ hands while handling.

Specifications
Part Number LDRS1U6
Width 19"
Depth 6"
Height 1.72"
Weight 2.10 lbs.
Shipping Dimensions 6.5" L x 20.25" W x 2.5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001846
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
TAA Compliant Yes
What's in the Box
Item Quantity
1U 6" Component Shelf 1
