27U LINIER® Server Cabinet Vertical Rail Kit - 10-32 Tapped

Item #:3160-3-002-27

27U LINIER® Server Cabinet Vertical Rail Kit - 10-32 Tapped

Item #:3160-3-002-27

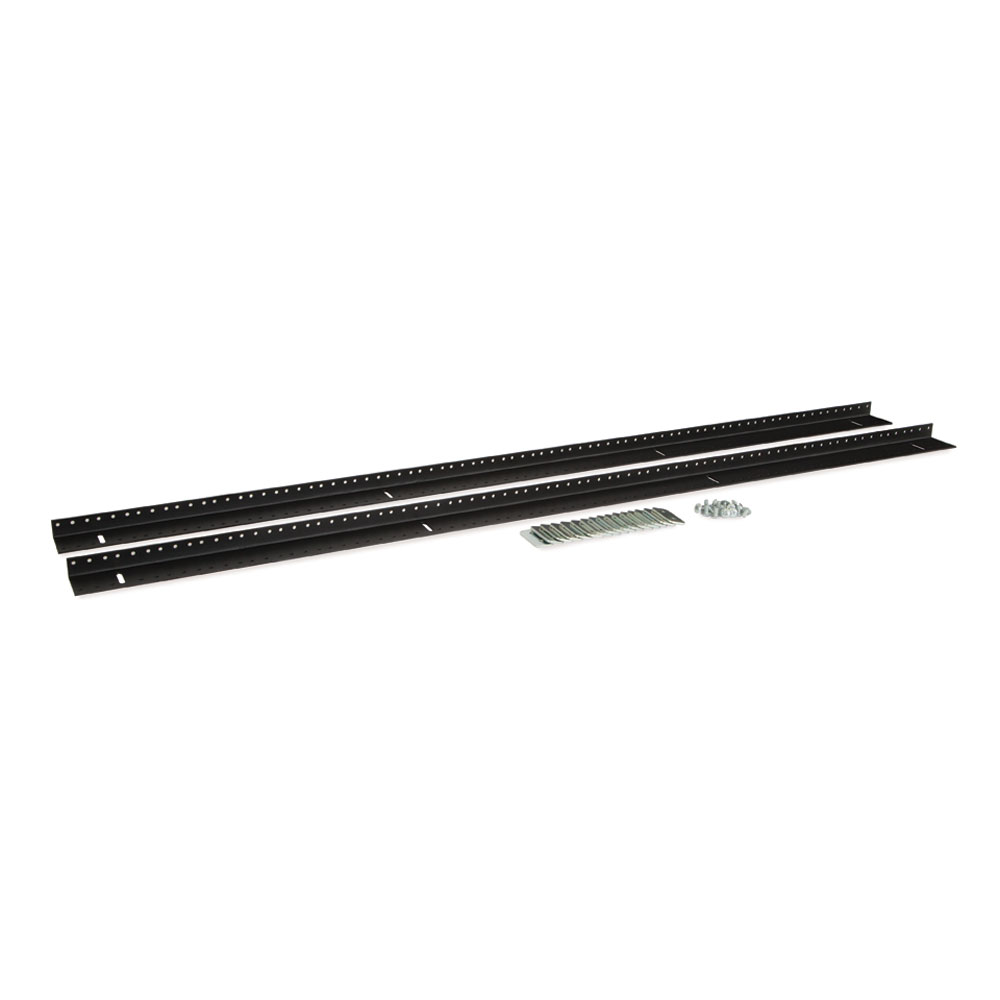

The LINIER® 27U Server Cabinet Vertical Rail Kit can be installed in any of the LINIER® Full Size Cabinets to provide a 10-32 tapped rail solution.
Made in the USA
Add to List
Description
The LINIER® 27U Server Cabinet Vertical Rail Kit can be installed in any of the LINIER® Full Size Cabinets to provide a 10-32 tapped rail solution. This tapped rail kit can replace the cage nut style rails that are included with the LINIER® Server Cabinets for installers who prefer a tapped rail mounting solution.
  • Fully adjustable
  • Includes two 27U 10-32 tapped rails
  • Can be used with the LINIER® Full Size Server Cabinets
  • Installation hardware included
  • Made in the USA
  • 5-Year Limited Warranty
Features
10-32 Tapped Rail Kit

Many installers enjoy the convenience of pre-tapped mounting rails. A tapped mounting rail features holes that contain internal threads. These threaded holes accept rack screws without the need for additional hardware such as cage nuts. This mounting style requires less hardware and less installation time.

Specifications
Part Number 3160-3-002-27
Width 0.912"
Depth 2"
Height 47.25"
Weight 7.50 lbs.
Shipping Dimensions 60" L x 4" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004137
Warranty 5-Year Limited Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
27U Vertical Rails 2
Assembly Parts Pack 1
