27U LINIER® Server Cabinet Vertical Rail Kit - Cage Nut
27U LINIER® Server Cabinet Vertical Rail Kit - Cage Nut
The LINIER® 27U Vertical Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Full Size Server Cabinet.
Made in the USA
Description
The LINIER® 27U Vertical Kit gives installers the ability to integrate additional cage nut style mounting rails into a LINIER® Full Size Server Cabinet. When installing network, security, or low-voltage electrical equipment sometimes additional mounting points are required. This additional set of rails will provide the added mounting functionality you need.
- Fully adjustable
- Can be used with the LINIER® Full Size Server Cabinets
- 5-Year Limited Warranty
Features
Cage Nut Style Rails
This set of universal cage nut rails are to be used in conjunction with rack screws and cage nuts. Cage nut style rails continue to grow in popularity because installers don’t have to worry about stripping holes. If a cage nut is stripped, you simply remove it and install a new one. With tapped rails, replacement of the entire rail is required.
Specifications
| Part Number | 3160-3-001-27 |
| Width | 0.912" |
| Depth | 2" |
| Height | 47.25" |
| Weight | 7.50 lbs. |
| Shipping Dimensions | 60" L x 4" W x 4" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447003222 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | FedEx Ground |

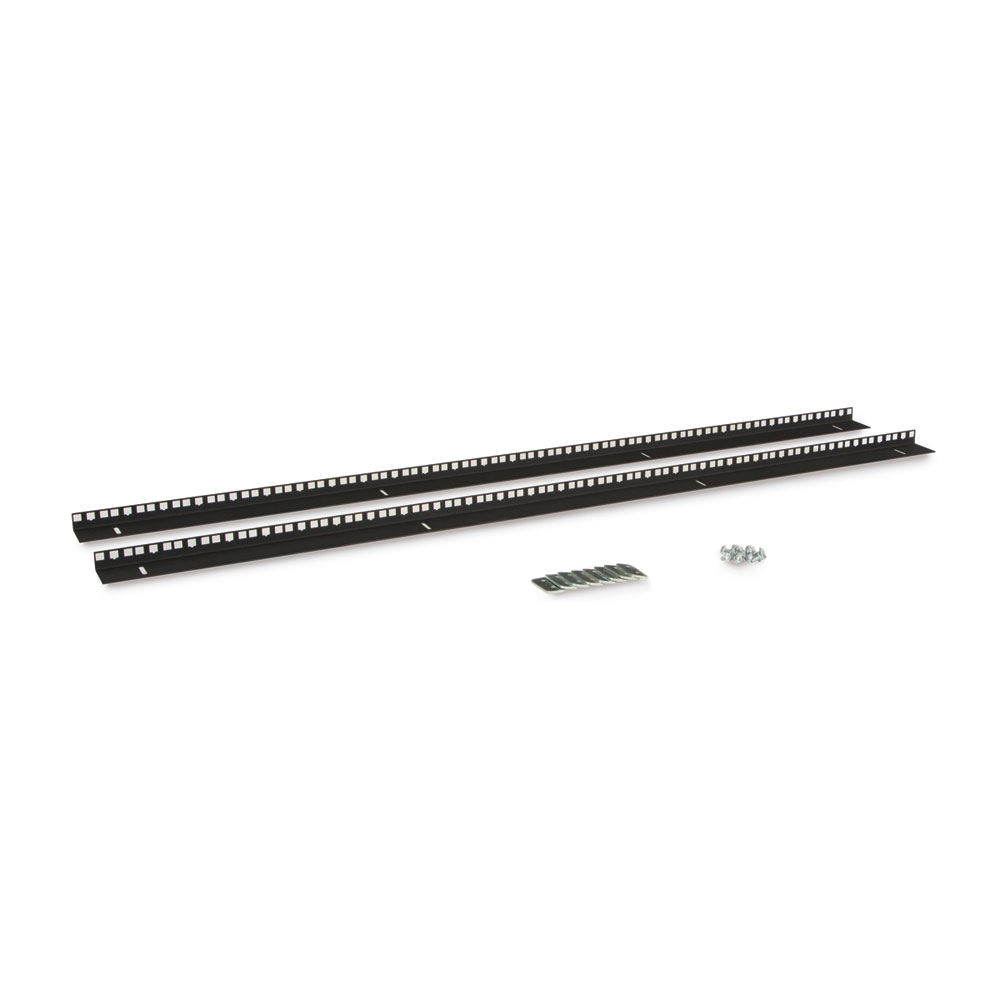

What's in the Box
| Item | Quantity |
|---|---|
| 27U Vertical Rails | 2 |
| Assembly Parts Pack | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 27U LINIER® Server Cabinet Vertical Rail Kit - Cage Nut (3160-3-001-27) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 737.85 KB |
Download |
Title 27U LINIER® Server Cabinet Vertical Rail Kit - Cage Nut (3160-3-001-27) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 664.97 KB |
Download |
Title 27U LINIER® Server Cabinet Vertical Rail Kit - Cage Nut (3160-3-001-27) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 525.04 KB |
Download |
Title 3160-3-001-27.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 902.59 KB |
Download |
