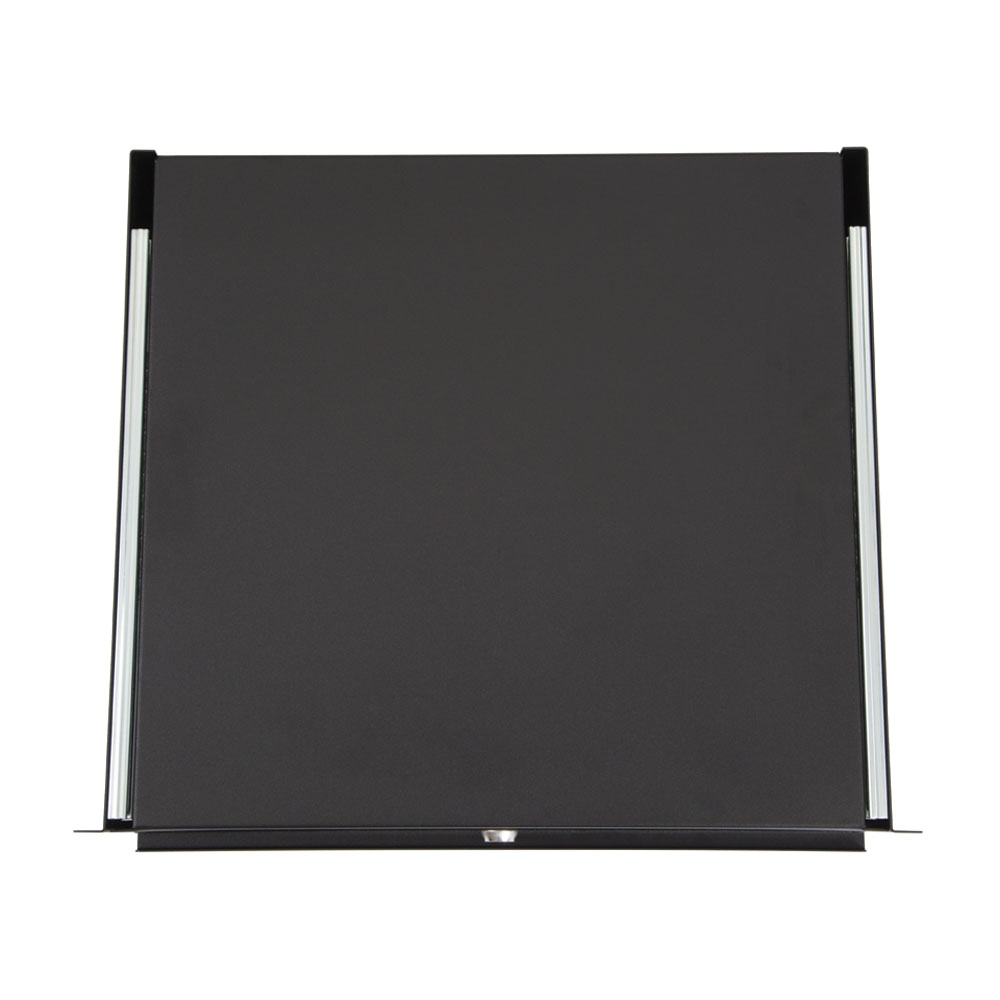

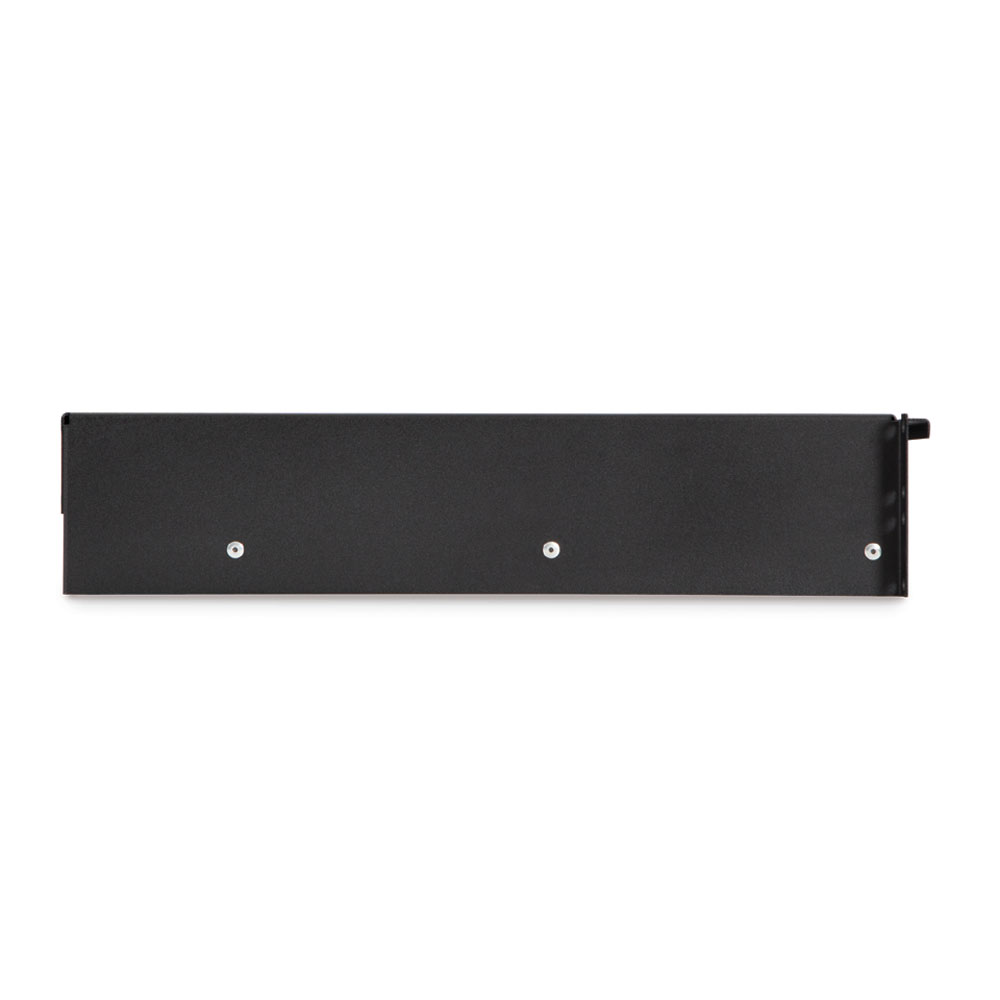

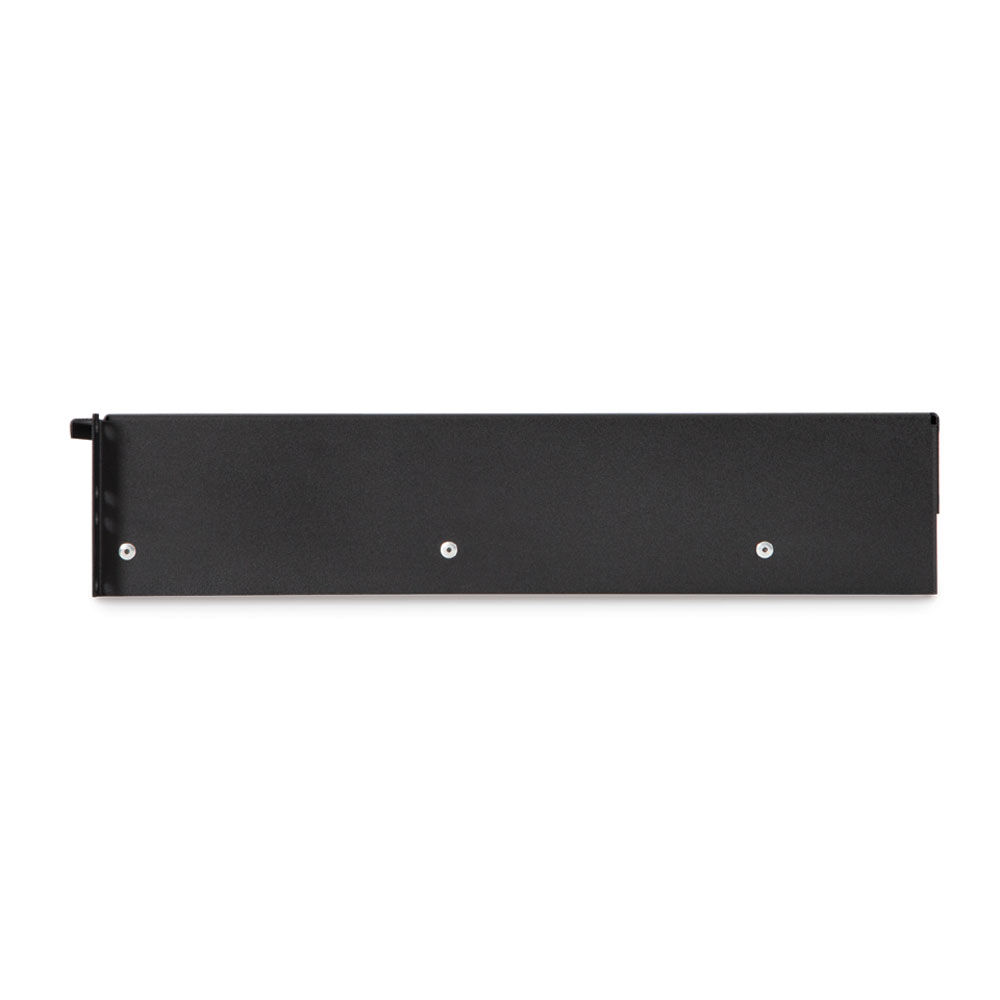

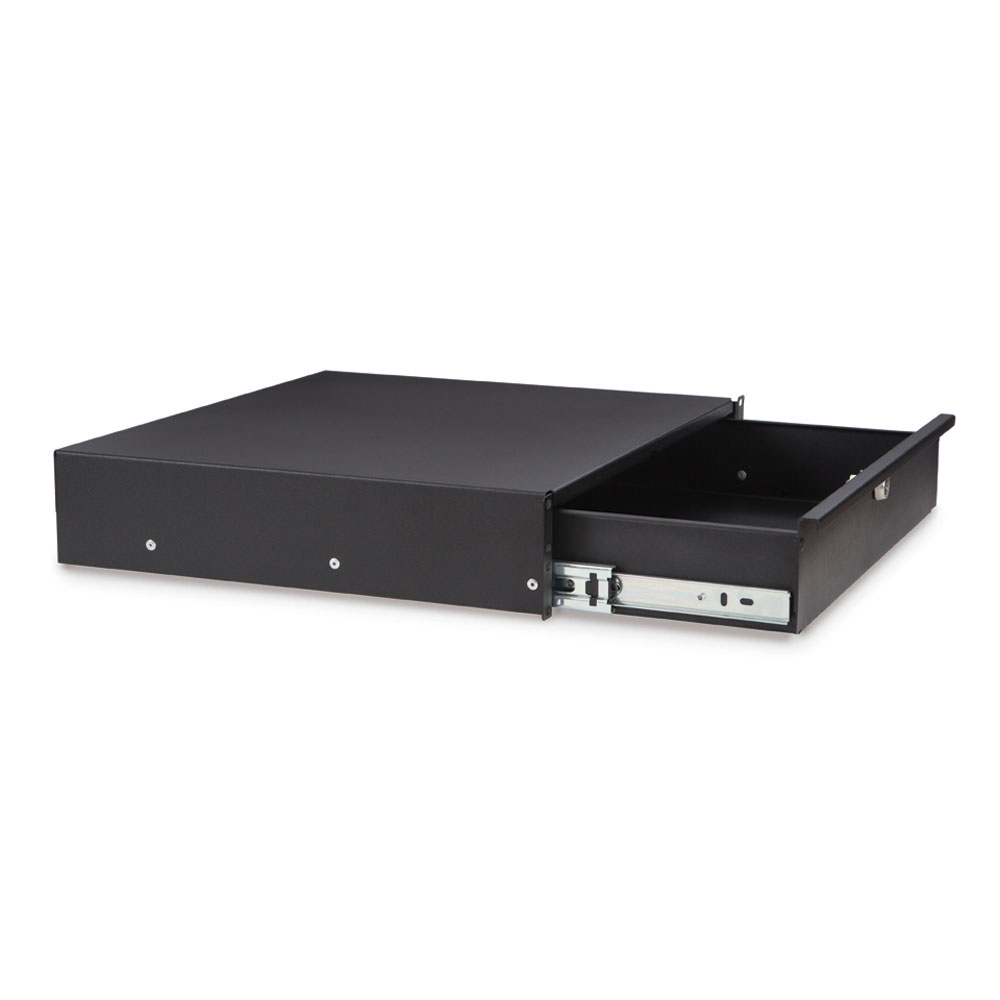

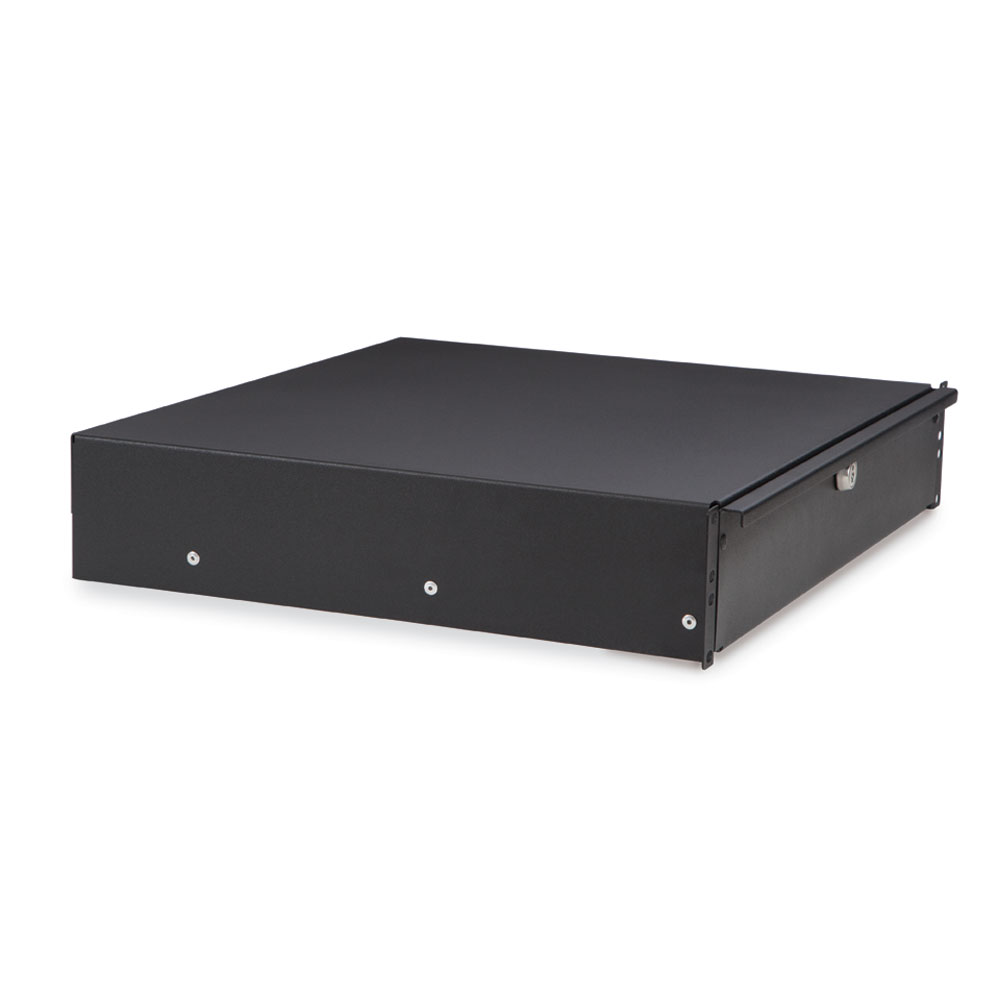

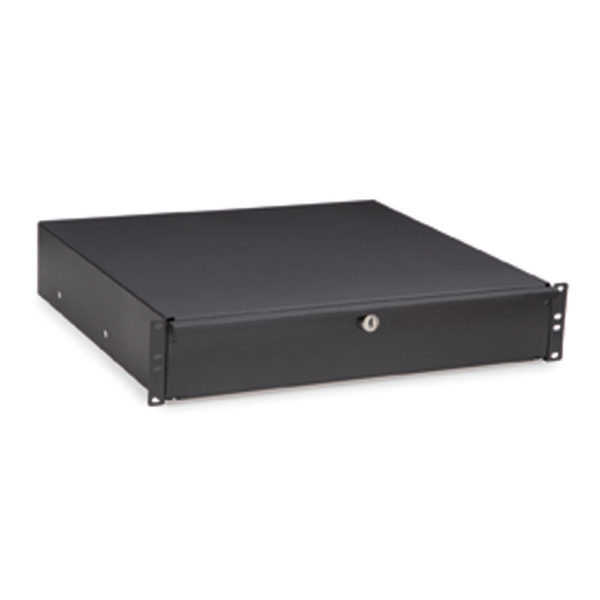

2U Rack Mountable Drawer
2U Rack Mountable Drawer
- 100 lb. weight capacity
- Smooth ball bearing slides
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty

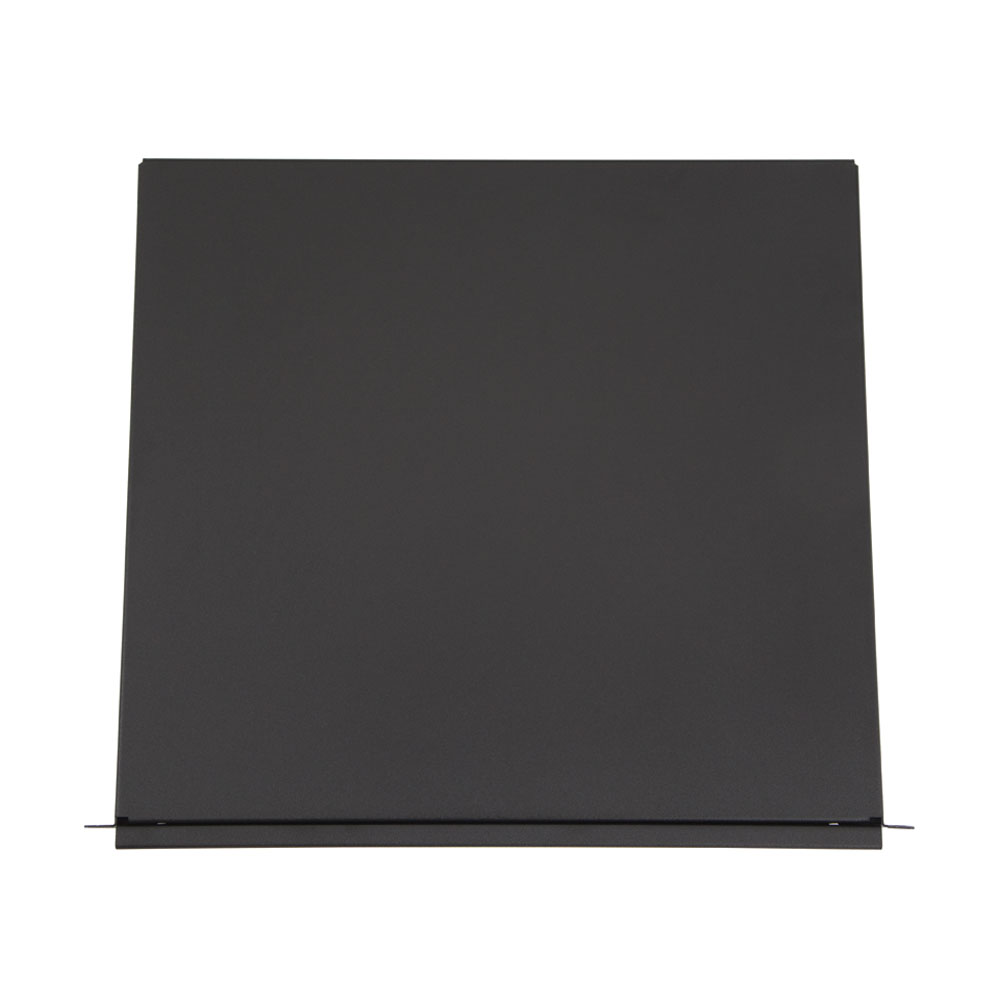

The heavy gauge steel construction and attention to detail make this rackmount drawer capable of holding up to 100 lbs. Not only can you utilize the drawer but the top cover can double as a shelf for supporting more equipment.

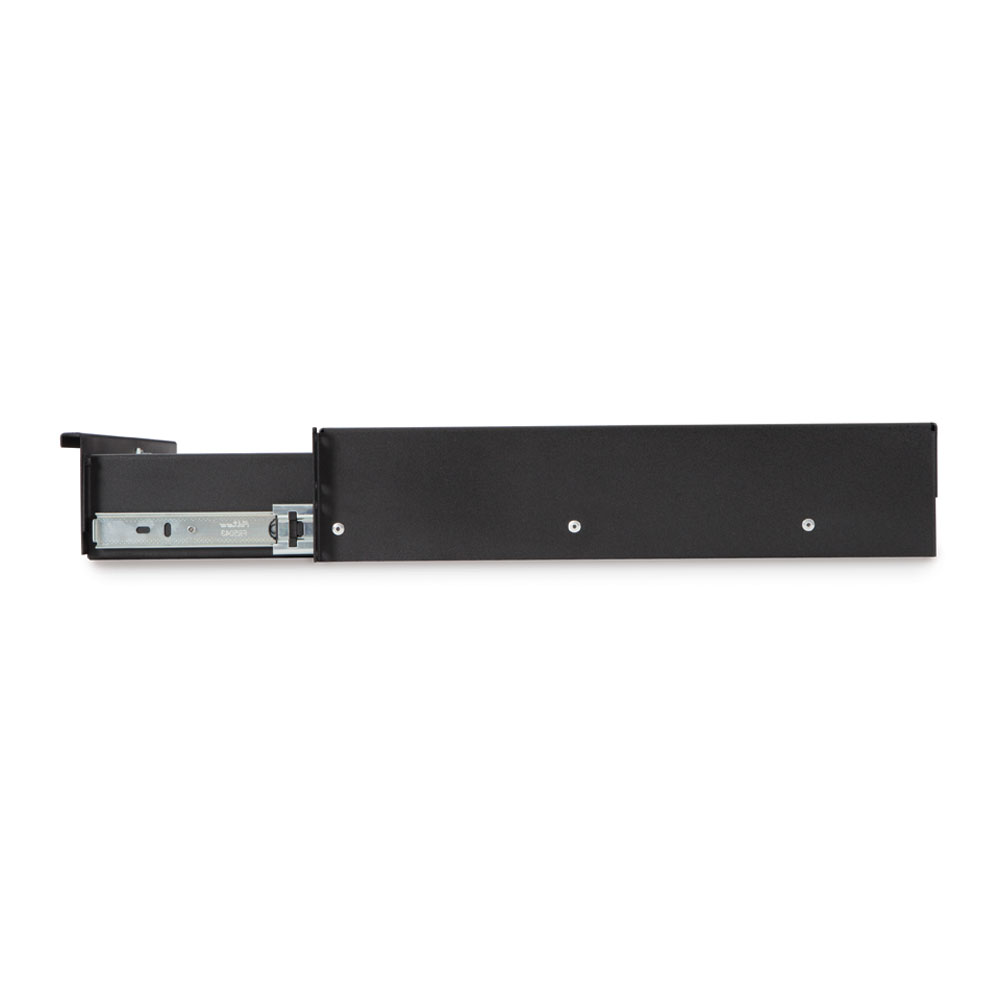

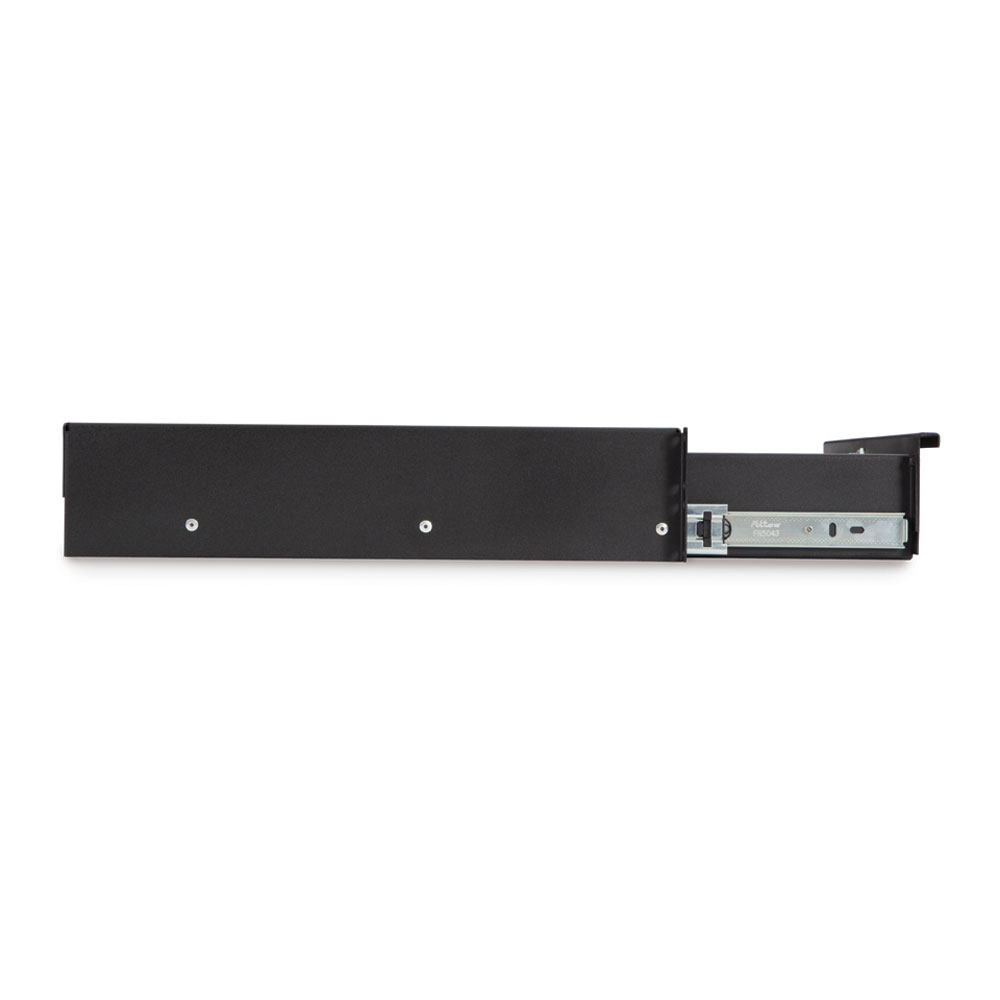

The smooth ball bearing slides allow the drawer to be slid in and out with ease.
Each rackmount space (U space) features four mounting holes so that the drawer can be securely installed. To maintain the maximum weight capacity, we suggest installing rack screws through every hole.
Part Number | 1922-3-100-02 |
Width | 19.00" |
Depth | 16.60" |
Height | 3.47" |
Weight | 15.60 lbs. |
Shipping Dimensions | 22" L x 21" W x 5" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Black Powder Coated Finish |
UPC | 879447002164 |
Warranty | Limited Lifetime Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
2U Rackmountable Drawer |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 2U Rack Mountable Drawer (1922-3-100-02) Cut Sheet |
Type Cut Sheet |
Date 11/19 |
Version 1 |
File Size 2 MB |
Download |
Title 2U Rack Mountable Drawer (1922-3-100-02) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 2U Rack Mountable Drawer (1922-3-100-02) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 616 KB |
Download |
Title 1922-3-100-02.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 5 MB |
Download |
-
