3U Triple Fan Panel

Item #:1908-3-001-02

3U Triple Fan Panel

Item #:1908-3-001-02
The Triple Fan Panel combines three 115 CFM fans, which together move 345 cubic feet of air per minute.
Certifications
RoHS Compliant
Add to List
Description

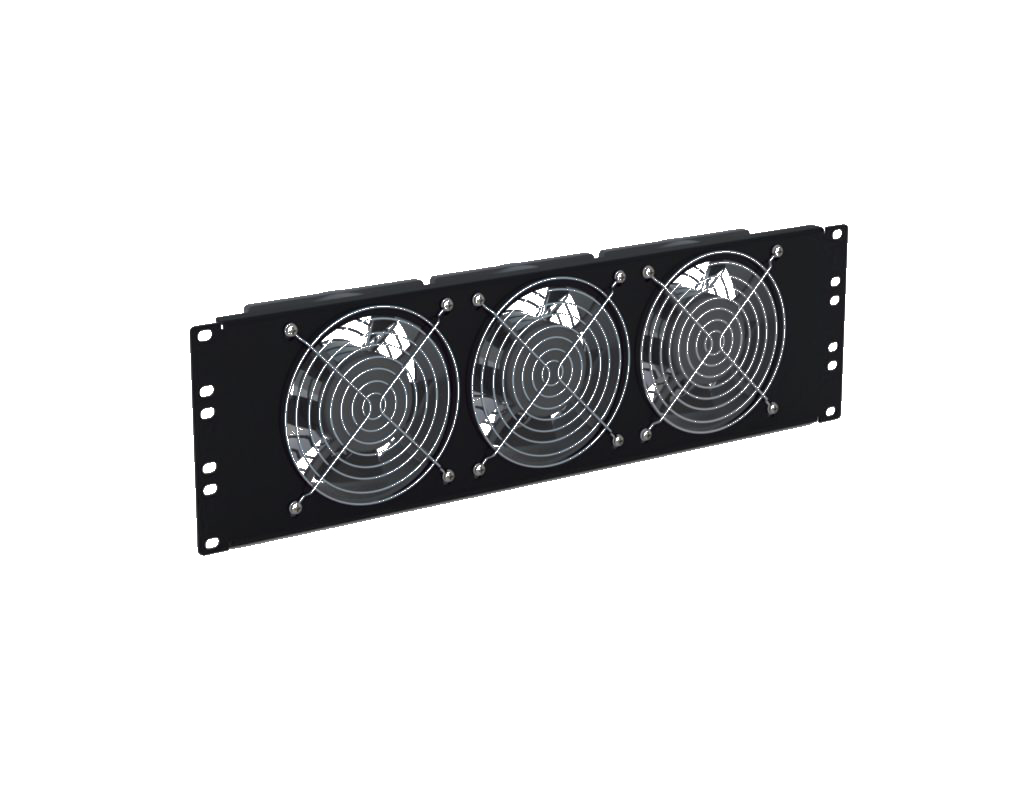

The Kendall Howard Triple Fan Panel combines three 115 CFM fans, which together move 345 cubic feet of air per minute. By installing the Triple Fan Panel into your network configuration, you can ensure that the heat produced by your device will be properly and efficiently dissipated, resulting in a cooler environment within your cabinet.
  • Includes three 115V/115 CFM Fans
  • Includes a 3-tail power cord
  • Impedance protected
  • 19" EIA compliant
  • RoHS compliant
  • 1-Year Limited Warranty

Features
Pre-Assembled

The three 115 CFM high speed fans are pre-installed into a 3U heavy gauge steel panel to provide an out-of-the-box solution. The vented steel panel allows air to move through it with ease while also providing a protective barrier over the face of the fan.

Easy to Install

Rack mountable panel easily mounts in any 19″ EIA compliant rack or cabinet. Simply mount using rack screws (and cage nuts if needed) and plug it in to start moving air within your rack configuration.

Specially Designed Power Cord

The Triple Fan Panel includes a 3-tail power cord. This power cable supplies power to all three fans with only using one outlet of your rack mountable UPS or power strip.

Optional Grounding

Each cooling fan features two threaded ground holes for grounding each fan in installation where specific electrical or network configurations require it.

Specifications
Part Number 1908-3-001-02
Width 19"
Depth 1.94"
Height 5.22"
Weight 6.50 lbs.
Shipping Dimensions 21" L x 6" W x 6" H
Material(s) Rack Mount Panel: CRS (Cold Rolled Steel)
Color/Finish Rack Mount Panel: Black Powder Coated Finish
UPC 879447001020
Warranty 1-Year Limited Warranty
Shipping Method FedEx Ground
Fan Specifications Bearing System: Sleeve
Voltage: 115 VAC
Rated Speed: 3100 RPM
Airflow: 115 CFM
Noise Level: 49dBA
Operating Temperature: 14° F (-10° C) to 158° F (70° C)
Power Cord Specifications Cable Length: 6ft (72 in)
Plug Type: NEMA 1-15 (type A)
What's in the Box
Item Quantity
Triple Fan Panel 1
3-Tail Power Cord 1
