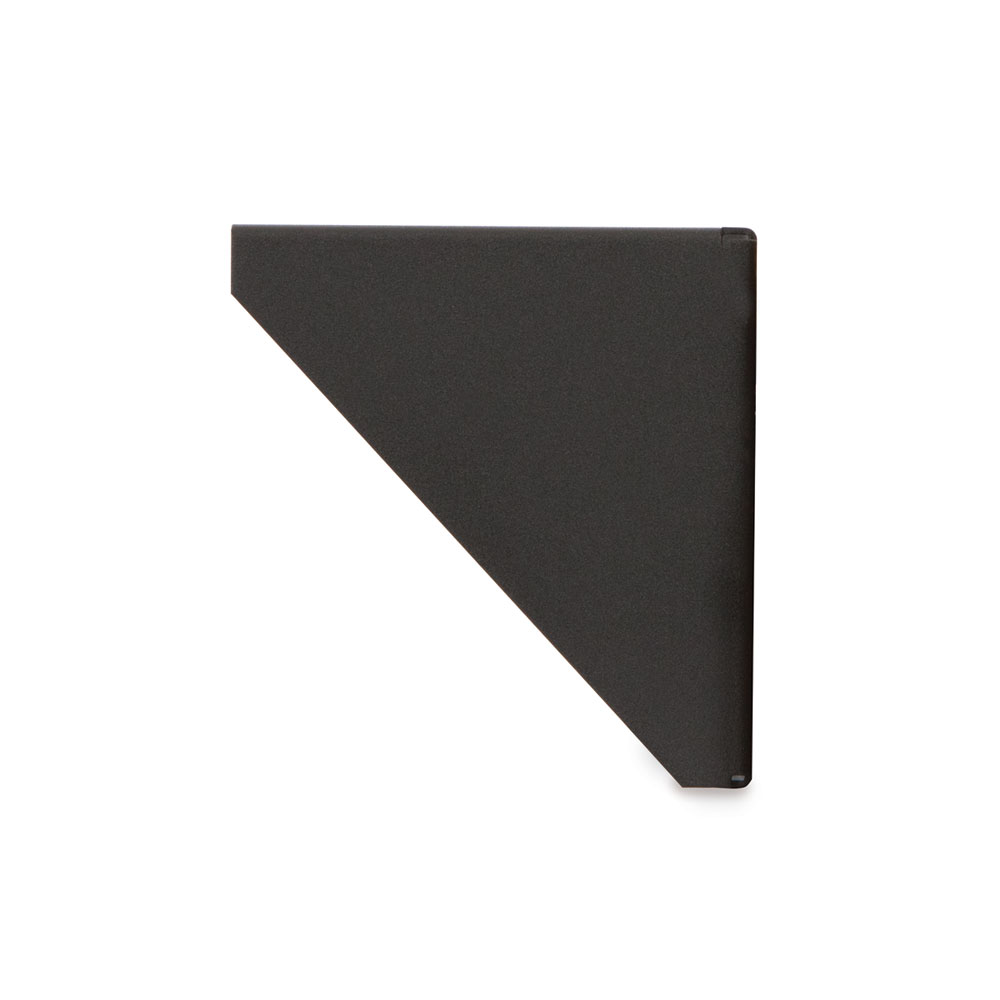

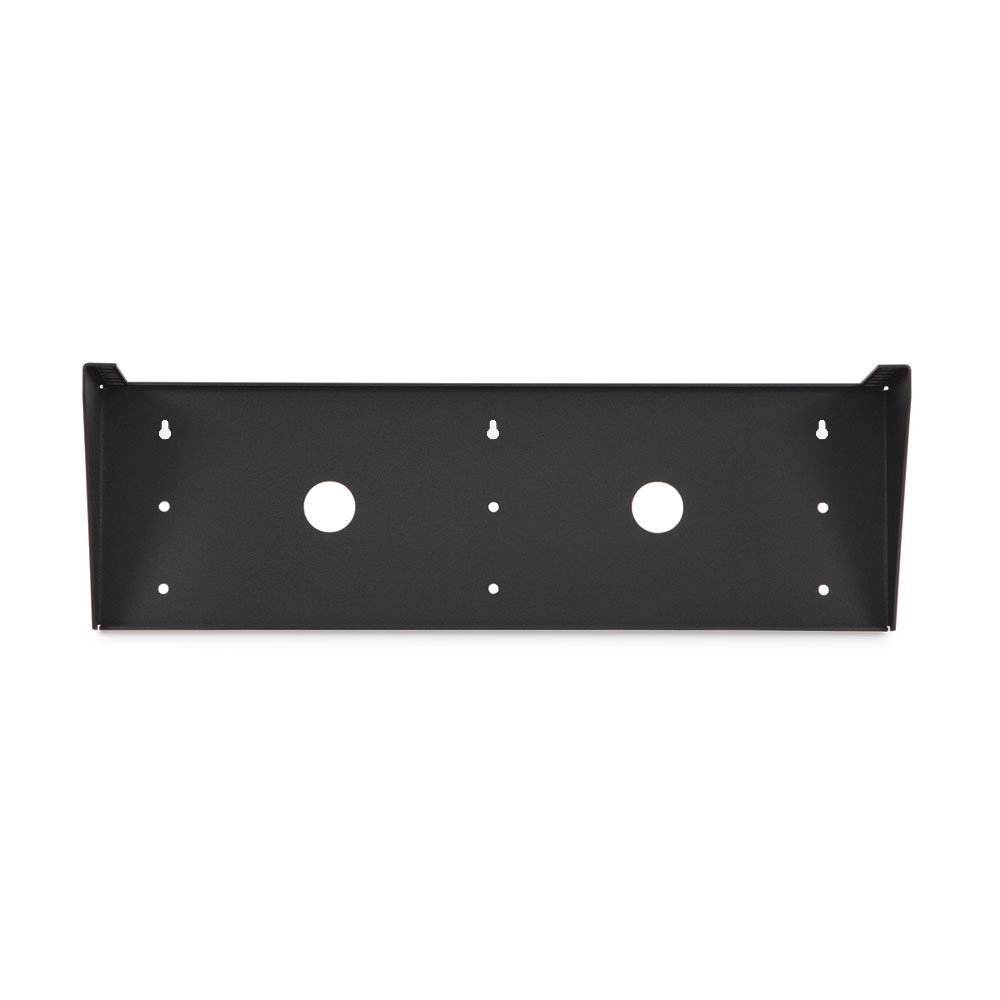

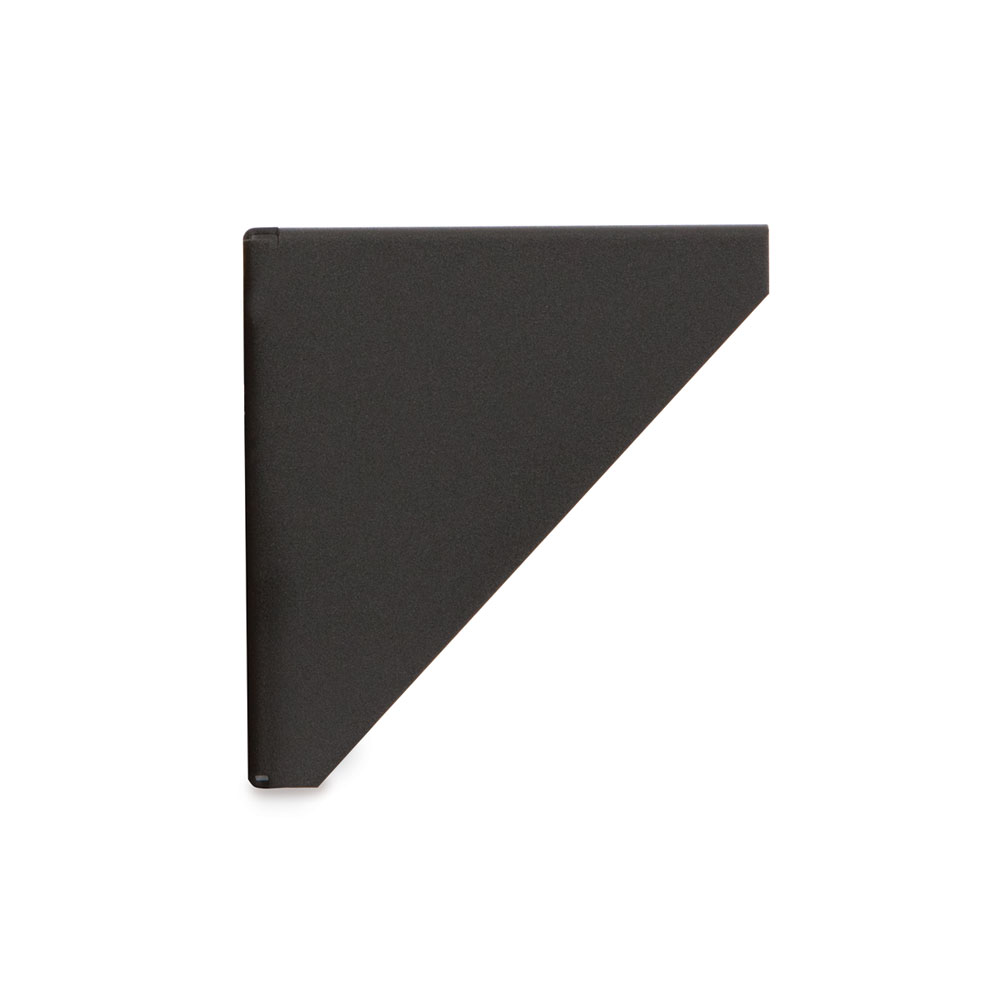

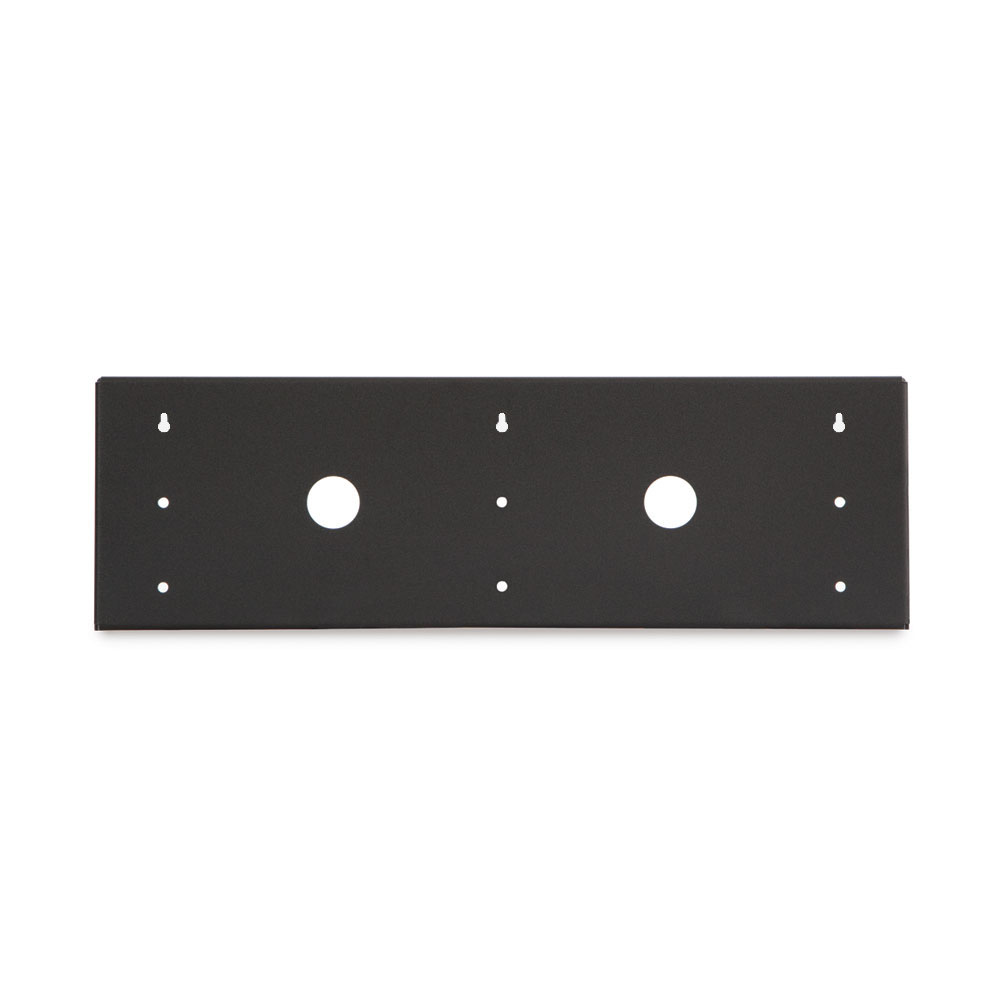

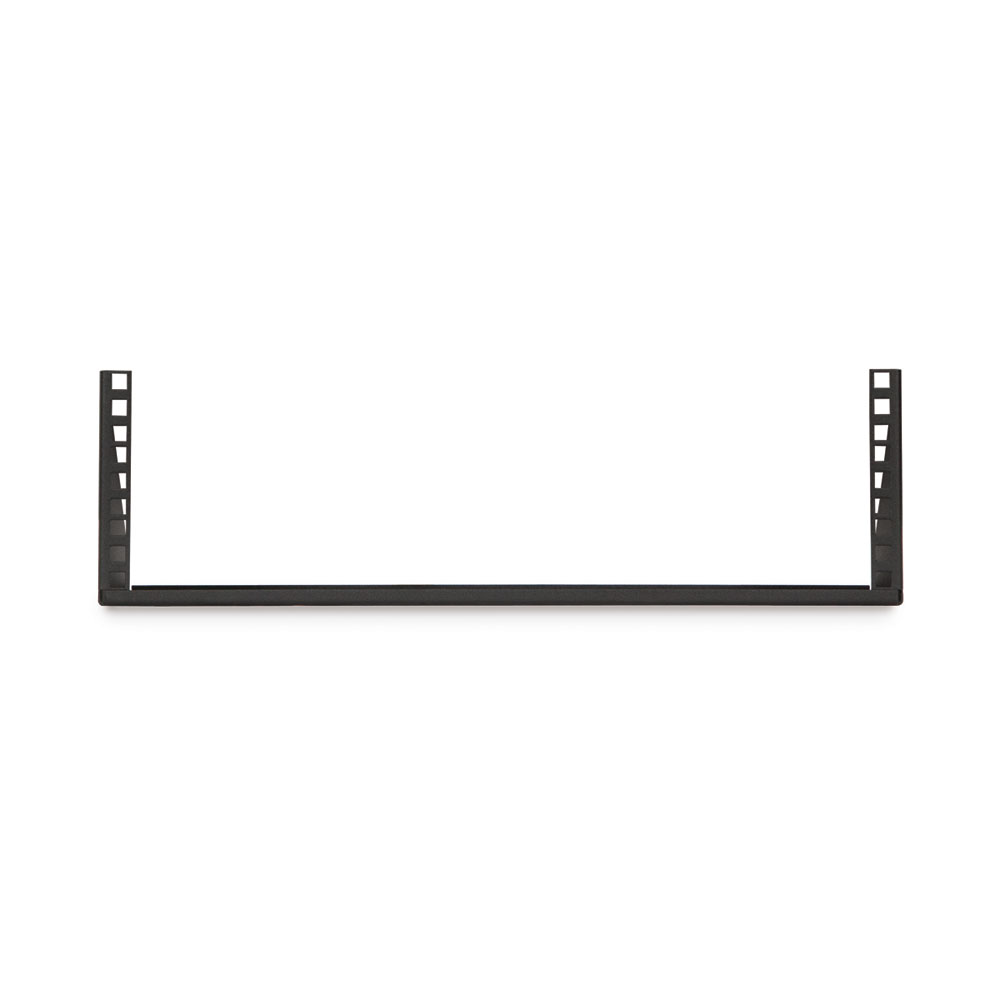

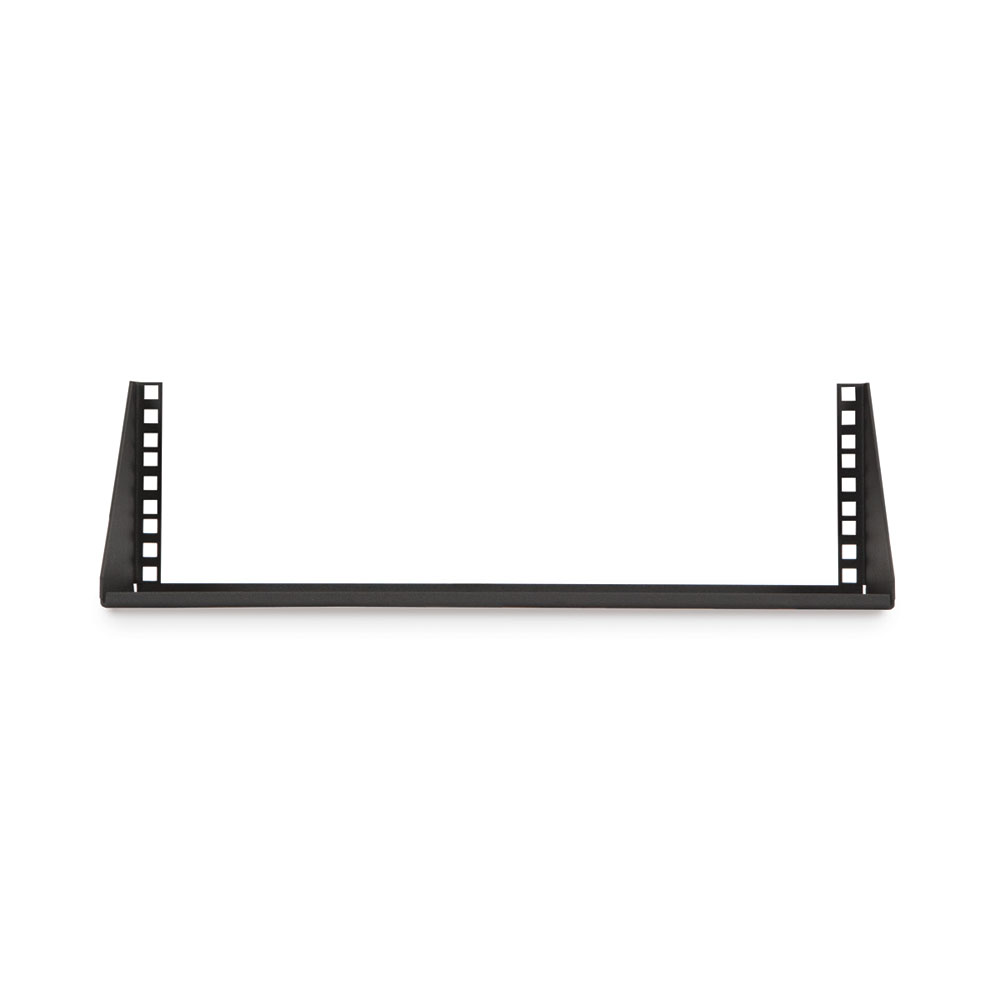

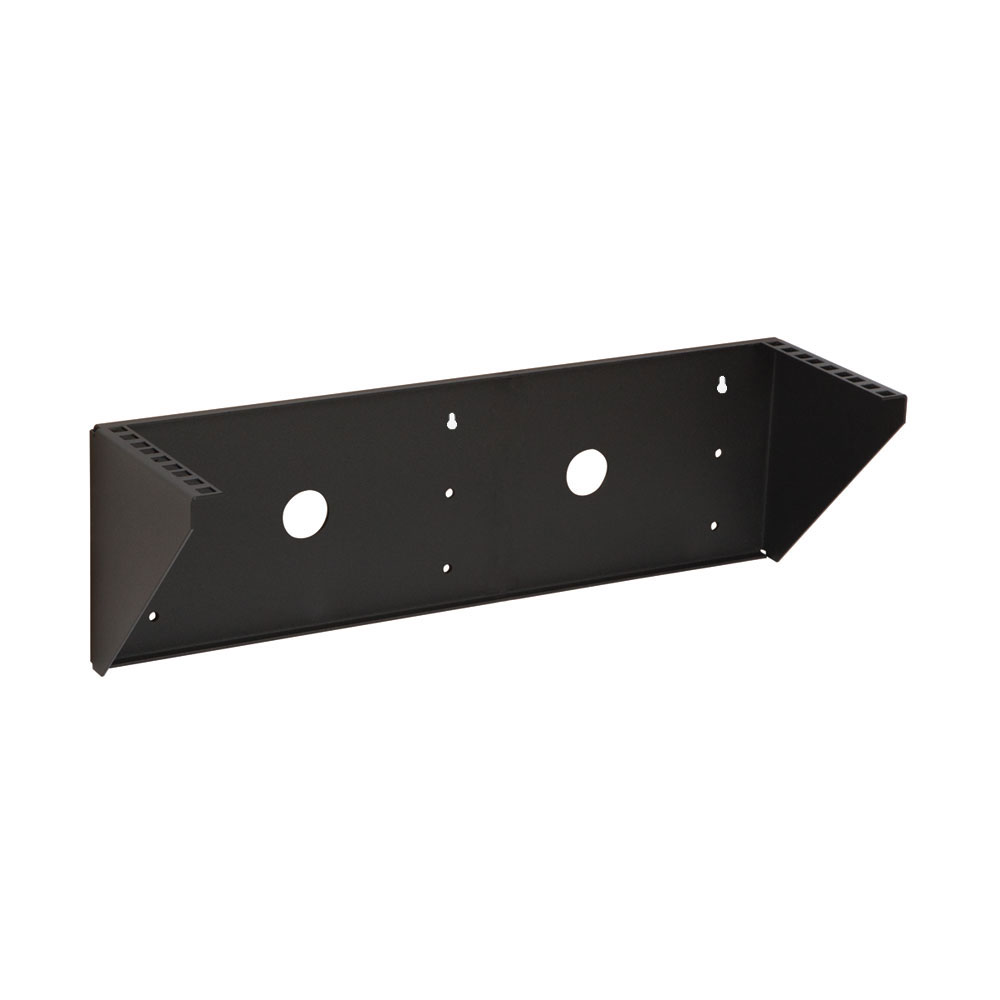

3U V-Rack with Cage Nut Rails

Item #:1916-2-100-3

3U V-Rack with Cage Nut Rails

Item #:1916-2-100-3
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
Kendall Howard V-Racks is our space-saving solution for mounting servers or other rack-mountable devices in a versatile manner. Our V-Racks, equipped with cage nut-style rails, are perfect for smaller rackmount equipment. Whether you want to mount them vertically or horizontally, these racks can accommodate devices of any depth. Designed to be wall-mounted or placed under a desk, the Kendall Howard V-Rack offers the flexibility to position your products wherever you need them while optimizing space utilization.
  • Does not include hardware - rack screws sold separately
  • Low profile design
  • Universal cage nut style rails
  • No depth restrictions
  • 150 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Low Profile Design

The V-Rack sticks out less than 4″ from the wall! Mounting equipment like this is perfect for applications where space is at a premium.

No Depth Restrictions

The open design allows you to install servers, switches, and other network equipment regardless of depth.

Multiple Uses

Designed to mount to the wall, under a desk or any surface to provide a 19″ EIA compliant rail system where needed. Users needing a 4-point mounting system can effectively do so by using two V-Rack systems.

Specifications
Part Number 1916-2-100-3
Width 19.25"
Depth 5.64"
Height 6"
Weight 4.50 lbs.
Shipping Dimensions 21" L x 8" W x 8" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001044
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
3U V-Rack 1
Resources
Title Type Date Version File Size
Title
3U V-Rack (1916-2-100-3) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
Download
Title
3U V-Rack (1916-2-100-3) Instructions
Type
Instructions
Date
10/23
Version
1
File Size
424.36 KB
Download
Title
1916-2-100-3.STEP
Type
3D CAD
Date
09/20
Version
1
File Size
100.63 KB
Download
Title
Vertical Racks Tapped and Cage Nut Style Cut Sheet
Type
Cut Sheet
Date
12/23
Version
1
File Size
382.44 KB
Download
