3U Vented Centerline Shelf
3U Vented Centerline Shelf
The Vented Centerline Shelf is one of the strongest, most stable shelves on the market.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard Vented Centerline Shelf is one of the strongest, most stable shelves on the market. Unlike most center mount shelves which may teeter, the Kendall Howard Centerline shelf is rock solid! The heavy gauge steel construction and welded mounting flanges give this shelf unprecedented stability and strength.
- 350 lb. weight capacity
- 24" depth
- Includes two shelves
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Center Mount Style
When mounting equipment in a 2-post rack, weight distribution is always a concern. The Centerline Shelf provides a 24″ depth surface that evenly distributes the weight across each side of the rack.
Easy to Install
19″ EIA mounting flanges easily mount to any 19″ 2-post relay rack with rack screws and cage nuts.
Heavy Duty
This 24″ center mount shelf can support up to 350 lbs., perfect for heavy equipment such as CPU’s, servers, battery backups, UPS’s, and more.
Rounded Corners
It may be a small detail, but at Kendall Howard we think it’s important. It is for that reason that all corners and edges of the Centerline Shelf are rounded for safe handling.

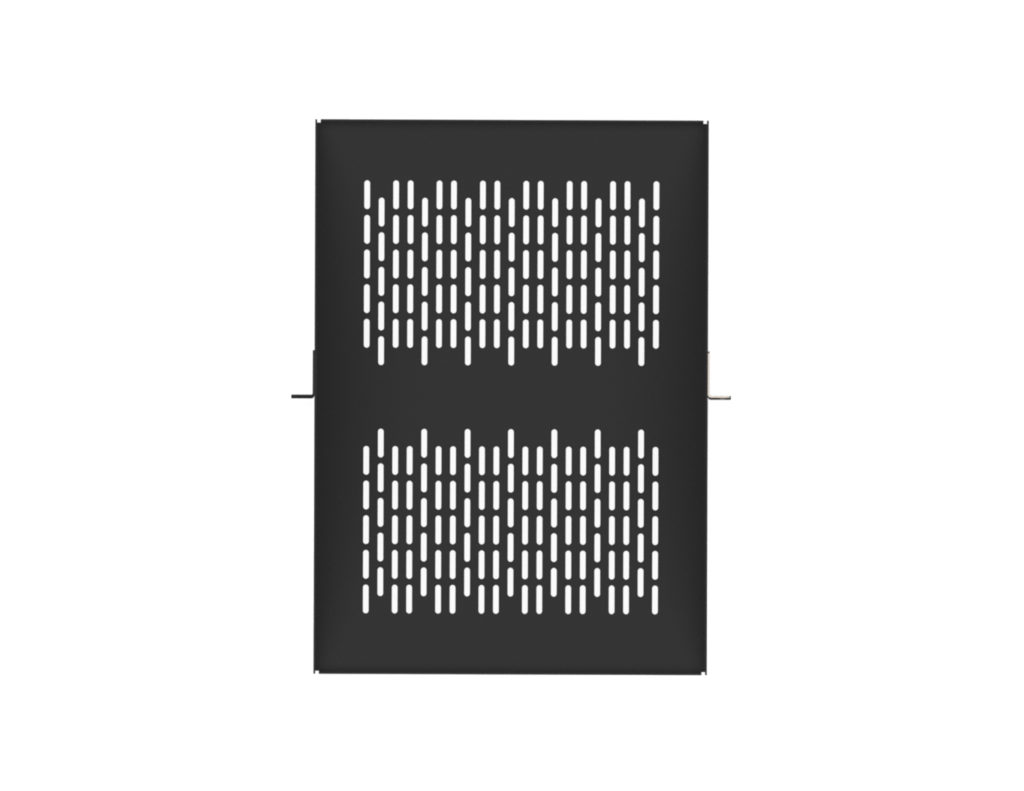

Ventilation
The fully vented shelf base allows for maximum airflow to prevent valuable equipment from overheating.
Specifications
| Part Number | 1907-3-000-03 |
| Width | 19" |
| Depth | 24" |
| Height | 5.22" |
| Weight | 14.00 lbs. |
| Shipping Dimensions | 26" L x 21" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000283 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| Vented Centerline Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 3U Vented Centerline Shelf (1907-3-000-03) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 440 KB |
Download |
Title 3U Vented Centerline Shelf (1907-3-000-03) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 620 KB |
Download |
Title 1907-3-000-03.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 564 KB |
Download |
Title 1907-3-000-03 Data Sheet |
Type Data Sheet |
Date 11/20 |
Version 1 |
File Size 174 KB |
Download |
