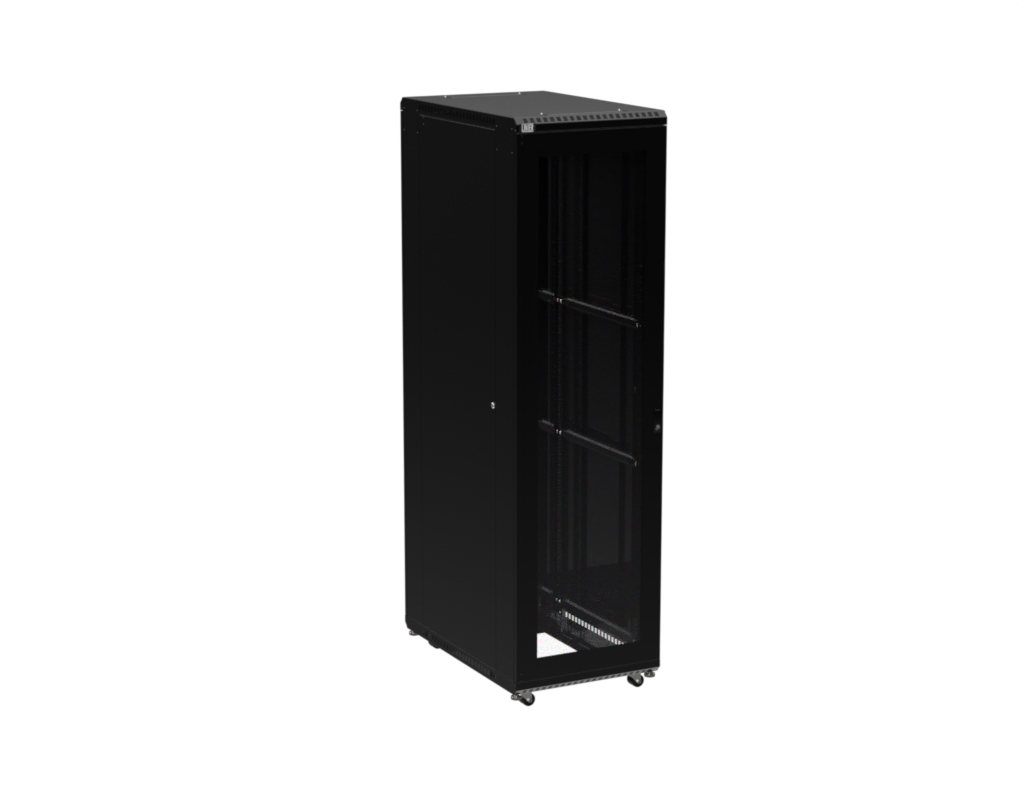

45U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth

Item #:3103-3-001-45

45U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth

Item #:3103-3-001-45
Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment.
Made in the USA
Limited Lifetime Warranty
Add to List
Description
The 3103 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!
  • Includes two locking tempered glass doors
  • Removable locking side panels
  • 36" depth (Also available with a 24" depth)
  • Other sizes available: 22U, 27U, 37U, and 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Top includes removable laser knockouts
  • Includes two sets of adjustable cage nut style mounting rails
  • Includes preinstalled casters and levelers
  • 5-Year Limited Warranty
Features
Easy Installation

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

Removable Cable Access Panels

The top of the server cabinet includes removable laser knockouts for cable access and added versatility.

Locking, Removable Side Panels

For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.

Adjustable Rails

Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.

Secured System

Both doors are equipped with locks to help protect and secure your valuable equipment.

Specifications
Part Number 3103-3-001-45
Width 24"
Depth 38"
Height 86" with casters
Weight 252
Shipping Dimensions 31" x 45" x 91"
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447006582
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight
What's in the Box
Item Quantity
45U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth 1
Resources
Title Type Date Version File Size
Title
3103-3-001-45 DATA SHEET
Type
Data Sheet
Date
02/24
Version
1
File Size
204.90 KB
Download
Title
45U LINIER® Server Cabinet - Glass/Glass Doors - 36" Depth (3103-3-001-45) STEP
Type
3D CAD
Date
02/24
Version
1
File Size
7.20 MB
Download
Title
45U LINIER® Server Cabinet – Glass/Glass Doors – 36″ Depth Instructions
Type
Instructions
Date
02/24
Version
1
File Size
273.70 KB
Download
Title
Full Size Linier® Server Cabinet Cut Sheet 36"
Type
Cut Sheet
Date
02/24
Version
1
File Size
293.83 KB
Download
