8U 18" Deep Open Frame Wall Rack
8U 18" Deep Open Frame Wall Rack

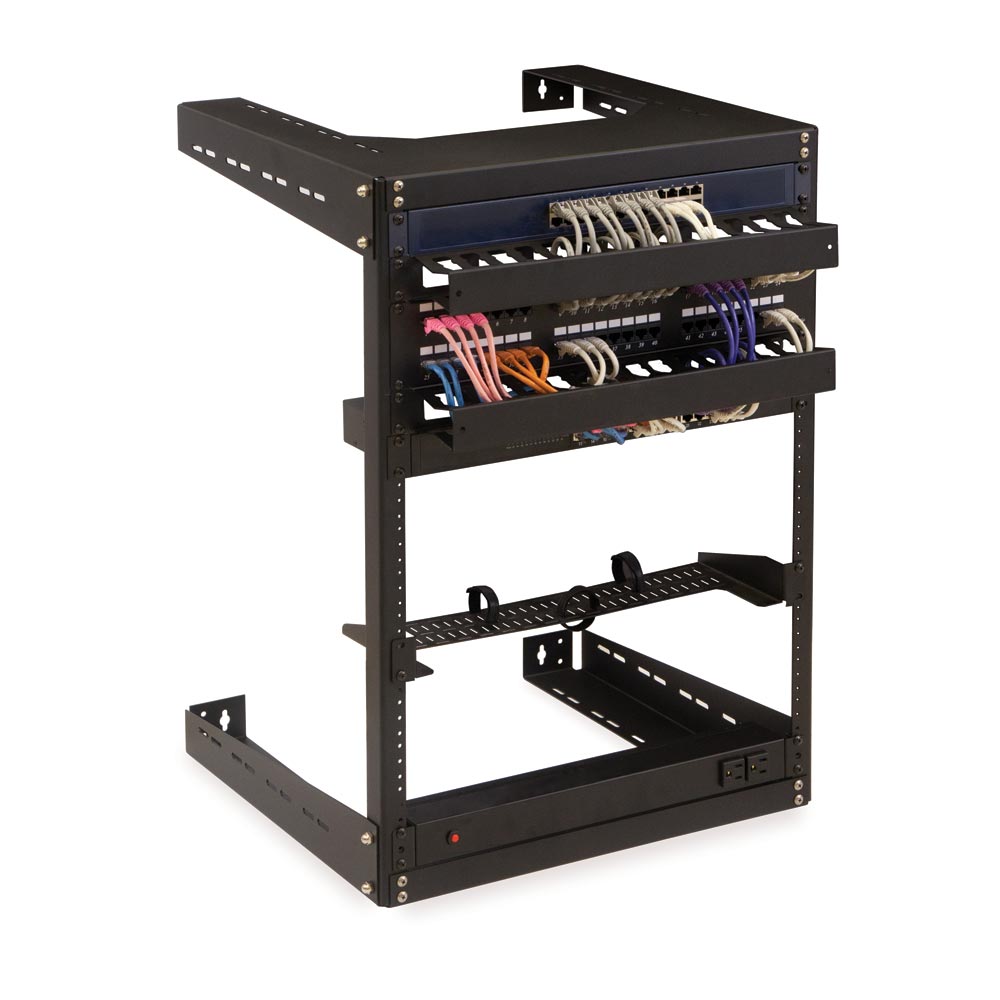

This sturdy, open frame rack permits 18” of usable depth to house network switches, patch panels, A/V devices, and other non-rackmountable equipment.
Certifications
19" EIA compliant
Description

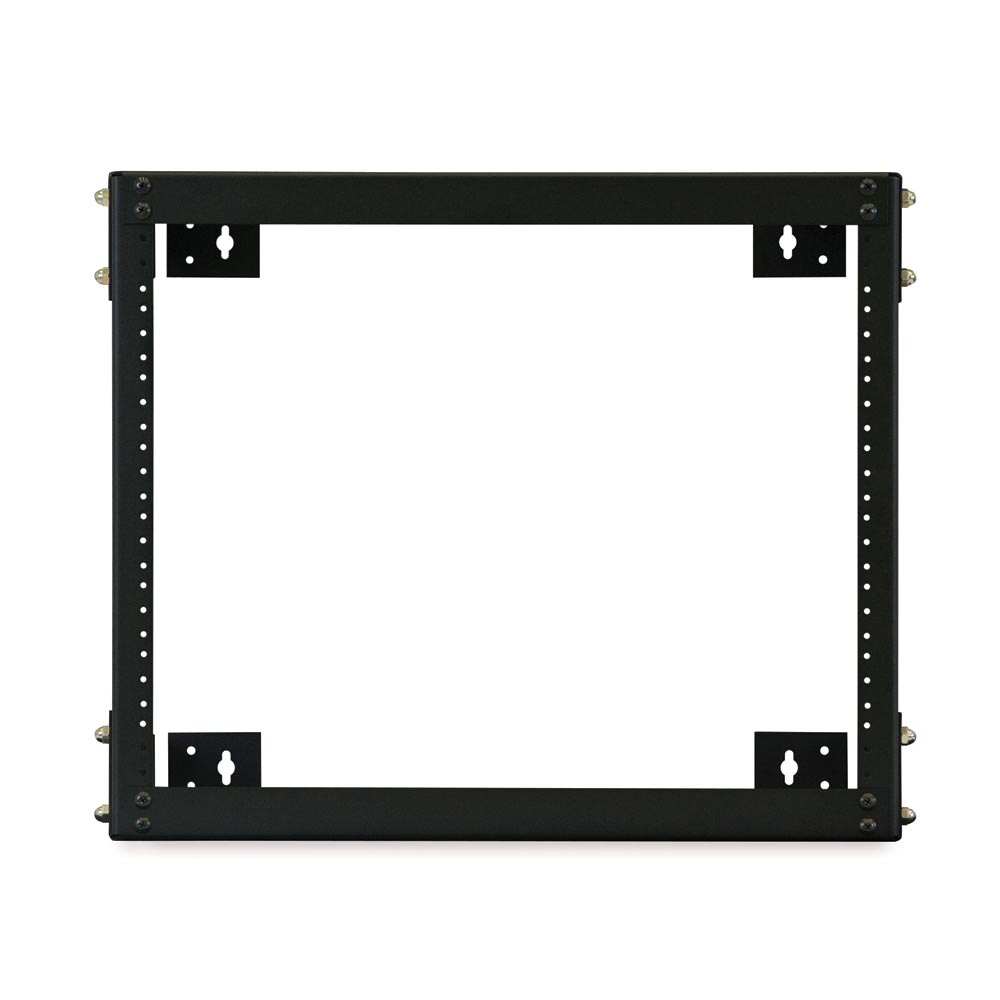

The 18” Deep Open Frame Wall Rack has a feature-rich, dual frame design making it easy for IT technicians to install. This sturdy, open frame rack permits 18” of usable depth to house network switches, patch panels, A/V devices, and other non-rackmountable equipment. For convenient cable routing in and around the installed equipment, use any of the cable lacing points found on the top and bottom of this 2-piece open wall rack. The 18” Deep Open Frame Wall Rack is sleek, with a simplistic design, making it a strong and durable solution for your next network system.
- Two-piece design
- 18” usable depth
- 10-32 tapped rails
- Includes 25 rack screws
- Ships knockdown
- 130 lb. weight capacity
- 19” EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Two-Piece, Knockdown Design

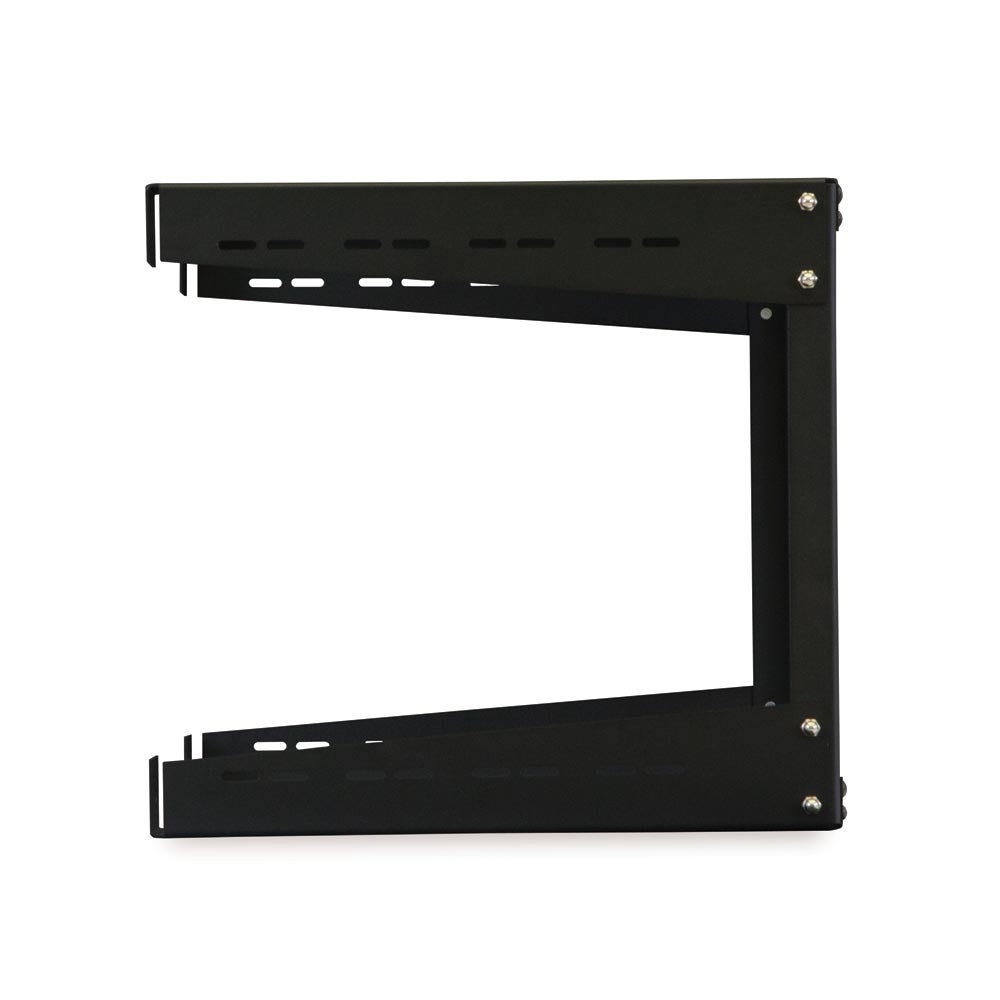

The 18” Deep Open Frame Wall Rack includes two universal top and bottom frames and two universal rails that when mounted together, form a rugged and reliable network solution.
Cable Lacing Points
The top and bottom of the 18” Deep Open Frame Wall Rack feature cable lacing points making it easy to install, route, and manage network cables.
Quick Assembly
By using a crescent wrench and a Philips head screwdriver or drill, within minutes your 18” Deep Open Frame Wall Rack will be ready to install on the wall.
Specifications
| Part Number | 1915-3-500-08 |
| Width | 20.04 |
| Depth | 18.10 |
| Height | 15.88 |
| Weight | 19.00 lbs. |
| Shipping Dimensions | 21” L x 30” W x 4” H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447005691 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| Universal Top/Bottom Frames | 2 |
| Universal Rails | 2 |
| 10-32 Rack Screws | 25 |
| Acorn Nuts | 8 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 8U 18" Deep Open Frame Wall Rack (1915-3-500-08) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 1 MB |
Download |
Title 8U 18" Deep Open Frame Wall Rack (1915-3-500-08) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 65 KB |
Download |
Title 8U 18" Deep Open Frame Wall Rack (1915-3-500-08) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 297 KB |
Download |
Title 1915-3-500-08.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 353 KB |
Download |
