Caster Base

Item #:3140-3-001-01

Caster Base

Item #:3140-3-001-01

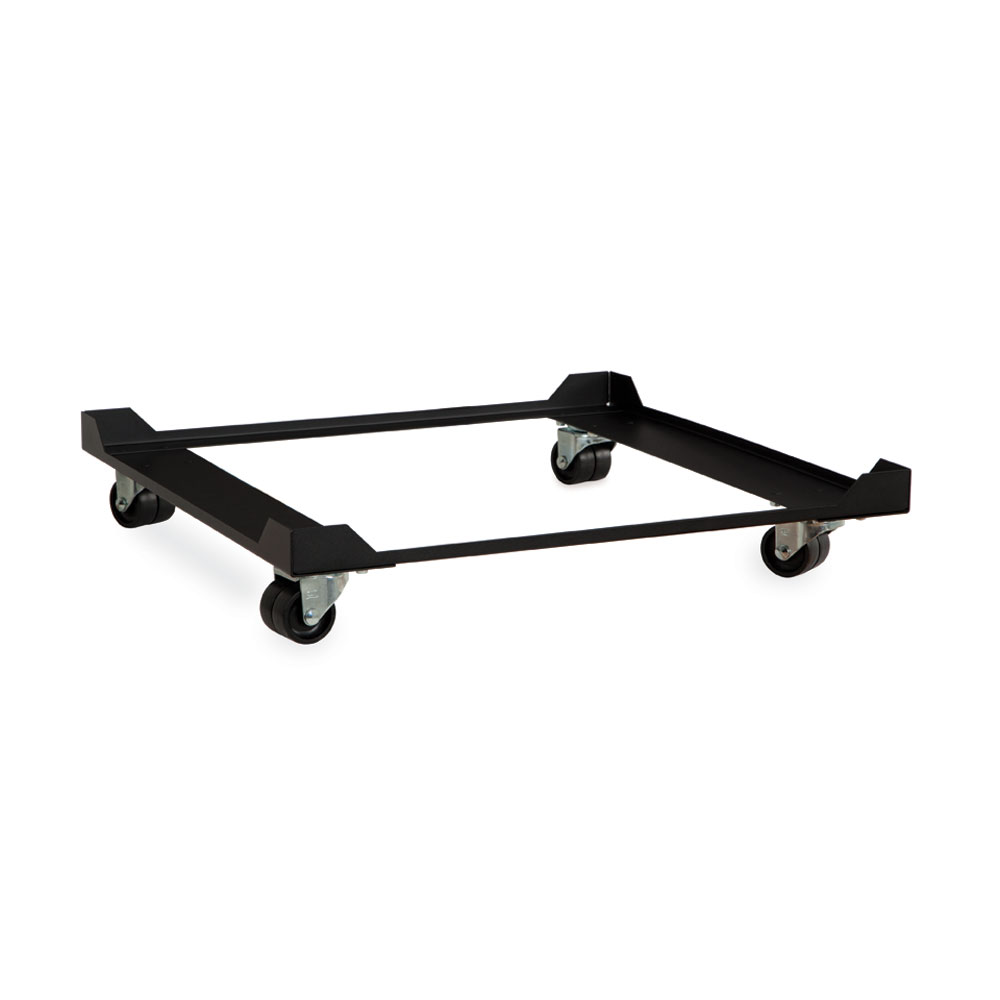

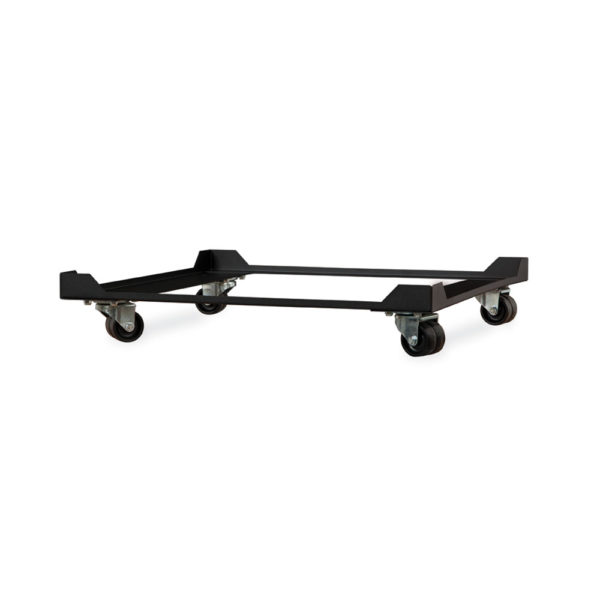

The LINIER® Caster Base provides a sturdy, mobile base that is suited to be used with any of the LINIER® Fixed Wall Mount Cabinets.
Made in the USA
Add to List
Description

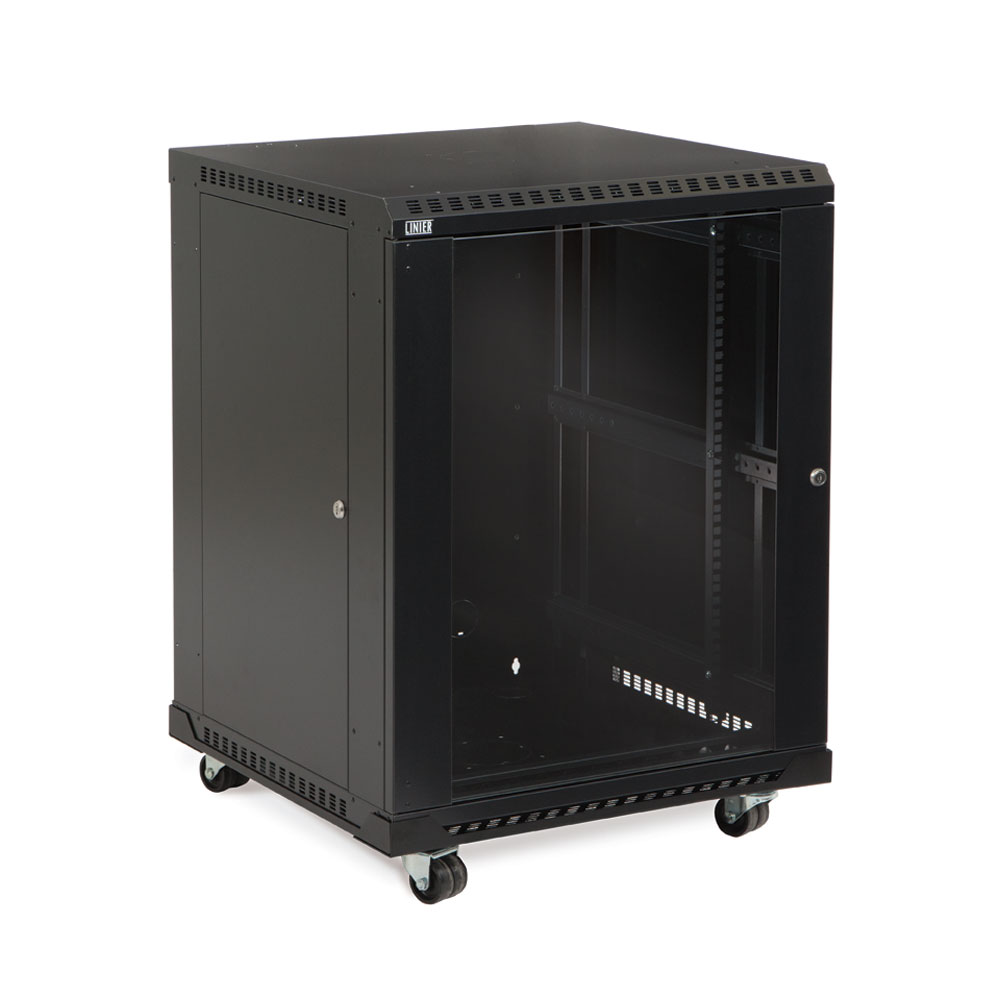

The LINIER® Caster Base provides a sturdy, mobile base that is suited to be used with any of the LINIER® Fixed Wall Mount Cabinets. The low profile base assembles in less than five minutes and adds only 2.9" in height to your cabinet. Whether you need a compact rolling cabinet to fit under a desk, or you're short on space and don't want to wall mount the unit, the LINIER® Caster Base in conjunction with a LINIER® Fixed Wall Mount Cabinet provides a cost-conscious, mobile solution.
  • To be used with the LINIER® Fixed Wall Mount Cabinets
  • 250 lb. weight capacity
  • Easy to assemble
  • Made in the USA
  • 5-Year Limited Warranty
Features
Low Profile Swivel Casters

The 2″ dual wheel casters swivel 360 degrees providing easy maneuverability.

Easy to Assemble

The knockdown design reduces shipping costs and takes less than five minutes to assemble.

Polypropylene Wheels

The polypropylene material is perfect for all flooring types as it will not scuff or damage flooring during movement.

Open Design

The large opening in the bottom allows access to the laser knockout in the bottom of the LINIER® Fixed Cabinet. This knockout can be used for cable routing or to install a Fan Assembly Kit.

Specifications
Part Number 3140-3-001-01
Width 23.78"
Depth 23.78"
Height 4.88"
Weight 10.00 lbs.
Shipping Dimensions 8" L x 26" W x 6" H
Material(s) Base: CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004175
Warranty 5 Year Limited Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Front/Rear Rails 2
Side Rails 2
Swivel Casters 4
¼-20 Nuts 16
Resources
Title Type Date Version File Size
Title
Caster Base (3140-3-001-01) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
570 KB
Download
Title
Caster Base (3140-3-001-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
71 KB
Download
Title
Caster Base (3140-3-001-01) Instructions
Type
Instructions
Date
05/19
Version
1.0
File Size
637 KB
Download
Title
3140-3-001-01.STEP
Type
3D CAD
Date
09/20
Version
1
File Size
1 MB
Download
