ESD Workbench 60”

Item #:ESDW-6030-1000

ESD Workbench 60”

Item #:ESDW-6030-1000
Made in the USA
Limited Lifetime Warranty
Add to List
Description Features Specifications What's in the Box Resources
Description

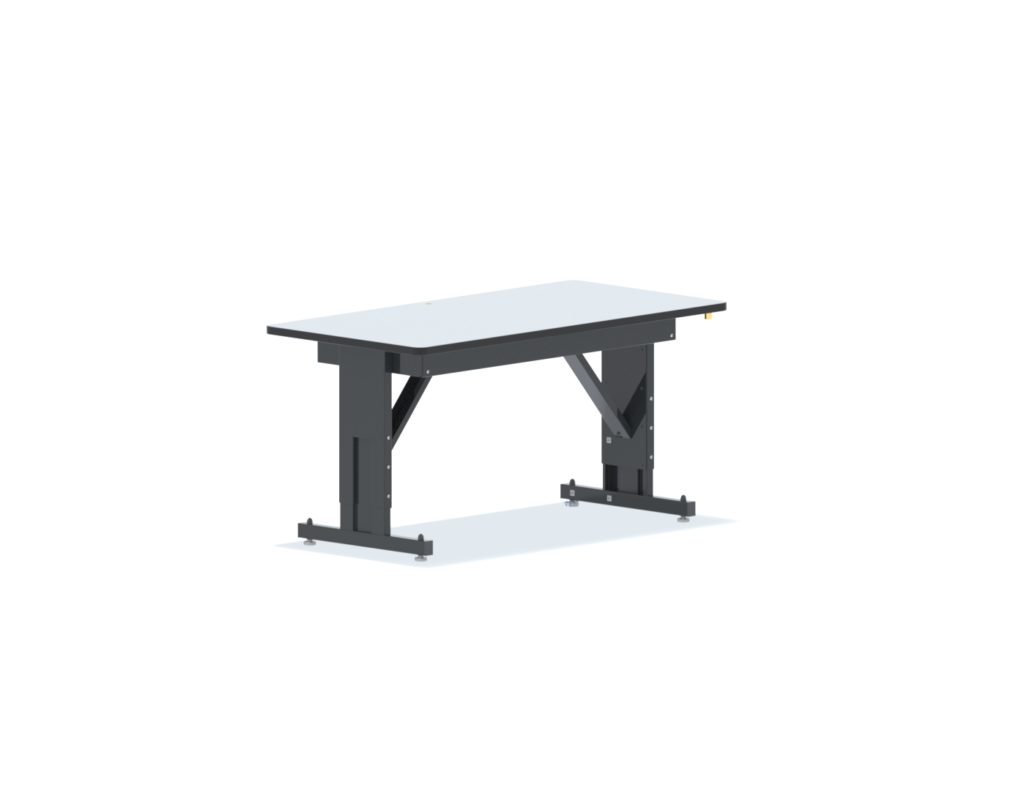

Kendall Howard™ ESD Workbenches provide technicians in static control environments an ESD safe work space for servicing and maintenance of sensitive electronic components across a multitude of industries. Designed for optimal ergonomics and static control in mind. The ESD Workbench can be adjusted in 4” height increments from 30” up to 38” in minutes. Each table includes two grounding options to ensure proper static protection. Ground 1 is through a 10’ external Earth ground wire. Ground 2 is established with a unique aluminum boot attached to a leg level to provide a connection to all non-insulated or ESD safe flooring. Workbench is also equipped with a single strategically placed wrist grounding strap grounding point. (Wrist straps not included)
  • Weight Capacity: 1,000 lb.
  • Work surface is constructed from NEVAMAR® Greystone, ESD protected laminate
  • Gloss Black powder coat finish offers an easy to clean and a durable surface
  • 60” Wide x 30” Deep x 30”-38” High
  • 30" surface depth
  • RoHS 3 compliant
  • Limited lifetime warranty
  • Manufactured in the USA
  • UPC: 879447001709
Features
Ergonomic Height Settings

The worksurface can be fixed into three different heights in 4” height increments from 30”-38”

Common Ground Point

ESD tables can be grounded two ways. A 10’ long Earth ground wire is provided to attach to common grounds. The second ground is built into a leg leveler with a unique aluminum boot. Workbench also includes a designated wrist strap grounding point.

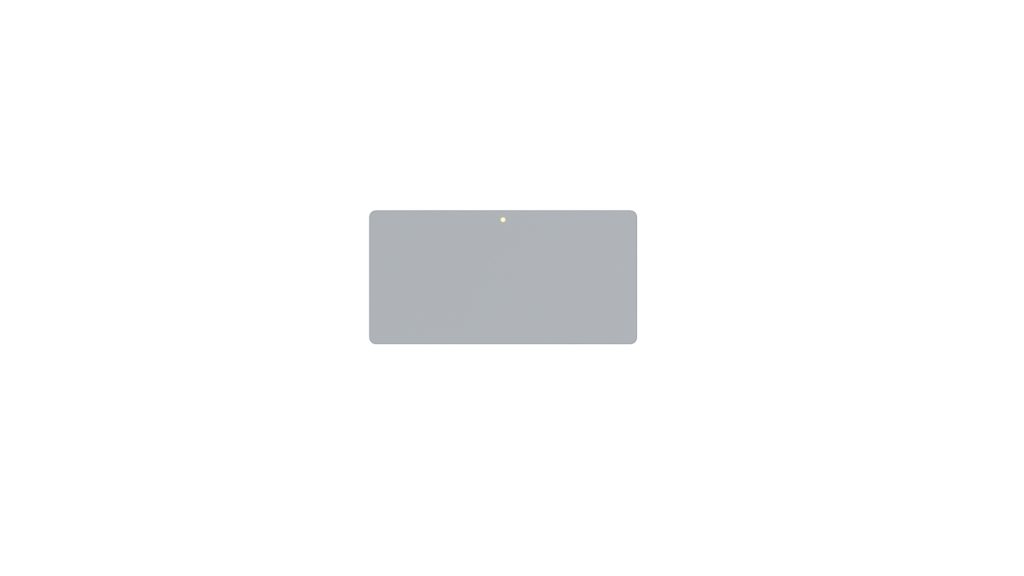

Conductive Laminate Work Surface

Work surface has a low electrical resistance and will diffuse static charges to ensure protection of sensitive devices during assembly. Resistant to most common solvents, solder and fluxes creating an extremely durable surface.

Test Data

Resistance to top 1.0 x 10^5 – 1.0 x 10^9 Ohms resistance at 70° F & 30% relative humidity. Resistance to ground (Common Ground Point, Wrist Strap, Floor Ground Equipment Ground) tested 1.0 x 10^5 to 1.0 x 10^9 Ohms resistance @ 70° F and 30% relative humidity.

Specifications
Part Number# ESDW-6030-1000
Width 60"
Depth 36"
Height 30”-38”
Weight 290
Shipping Dimensions 79"L x 36"W x 13"H
Color/Finish Glossy black with Folkstone laminate
UPC 879447001709
Warranty Limited lifetime warranty
Shipping Method LTL Freight
What's in the Box
Item Quantity
Work Surface 60” x 30” 1
Leg Assembly 2
Cross Bar 2
Gusset 2
Pan Head Screw 40
ESD Grounding Boot 1
Self-Adhesive Cable Tie Mount 5
6” Cable Tie 5
