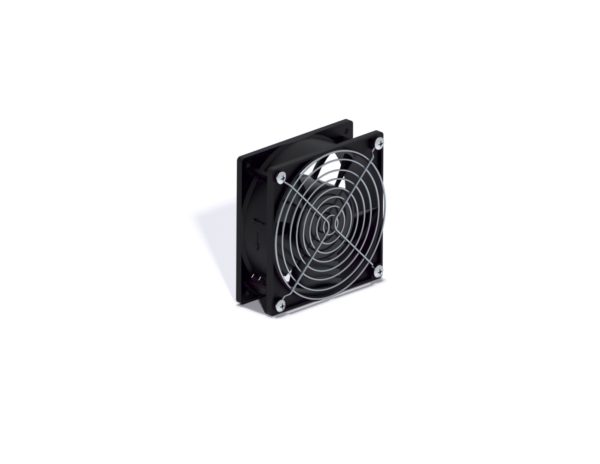

Fan Assembly Kit

Item #:1908-3-001-01

Fan Assembly Kit

Item #:1908-3-001-01
The Fan Assembly Kit helps to remove ambient heat that rackmount components can emit.
Made in the USA
Limited Lifetime Warranty
Certifications
RoHS Compliant
Add to List
Description
The Kendall Howard Fan Assembly Kit helps to remove ambient heat that rackmount components can emit. Circulating new air into a wall mount cabinet or server enclosure helps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.
  • Ball bearing design
  • 115V / 78 CFM
  • Impedance protected
  • RoHS compliant
  • Includes power cord, fan guard, and installation hardware
  • 1-Year Limited Warranty
Features
All-in-One

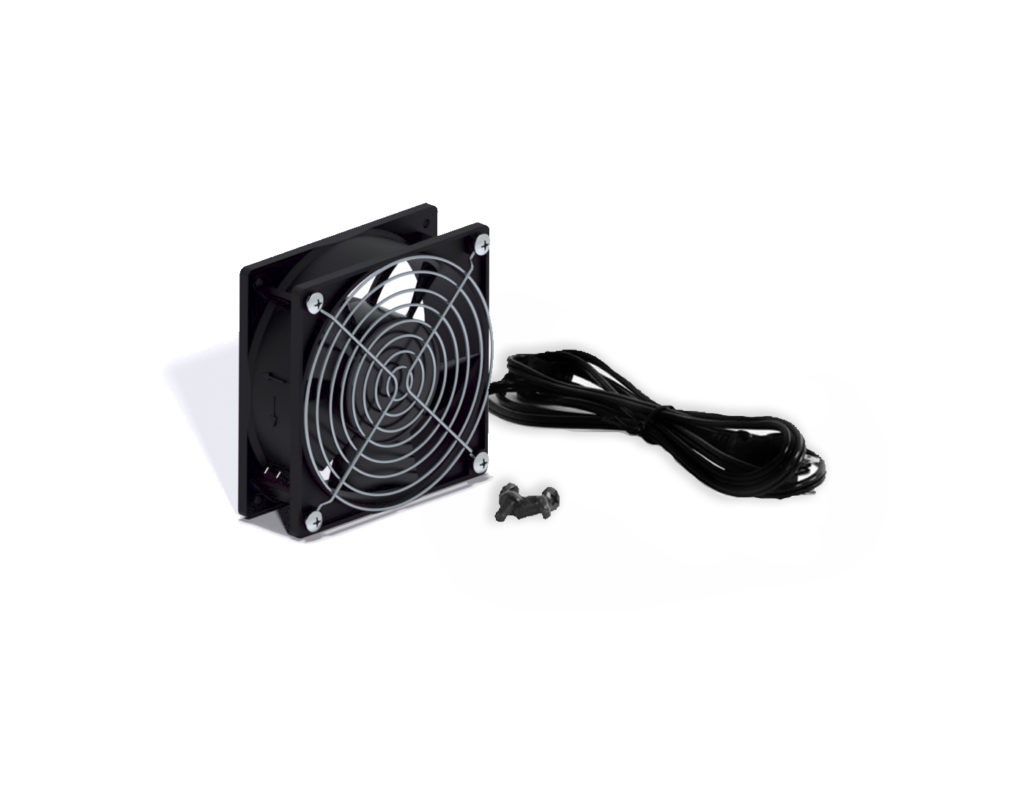

The fan assembly kit comes complete with one 115V / 78 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.

Easy to Install

The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.

Compatibility

The standard 4″ fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.

Optional Grounding

Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.

Specifications
Part Number 1908-3-001-01
Width 4.7"
Depth 4.7"
Height 0.98"
Weight 1.50 lbs.
Shipping Dimensions 6" L x 6" W x 6" H
Material(s) Rack Mount Panel: CRS (Cold Rolled Steel)
Color/Finish Rack Mount Panel: Black Powder Coated Finish
UPC 879447001167
Warranty 1-Year Limited Warranty
Shipping Method FedEx Ground
Fan Specifications Bearing System: Ball Bearing
Voltage: 115 VAC
Rated Speed: 2000 RPM
Airflow: 78 CFM
Noise Level: 38dBA
Operating Temperature: -22° F (-30° C) to 167° F (75° C)
Power Cord Specifications Cable Length: 6ft (72 in)
Plug Type: NEMA 1-5 (type A)
What's in the Box
Item Quantity
120 mm Fan 1
6 ft. Power Cord 1
120 mm Fan Guard 1
Assembly Parts Pack 1
Resources
Title Type Date Version File Size
Title
Fan Assembly Kit (1908-3-001-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
186.57 KB
Download
Title
1908-3-001-01.STEP
Type
3D CAD
Date
10/20
Version
1
File Size
1.45 MB
Download
Title
1908-3-001-01 Fan Assembly Instructions
Type
Instructions
Date
06/21
Version
1
File Size
525.65 KB
Download
Title
Standard and High Speed Fan Assembly Kit Cut Sheet
Type
Cut Sheet
Date
10/22
Version
1
File Size
557.10 KB
Download
