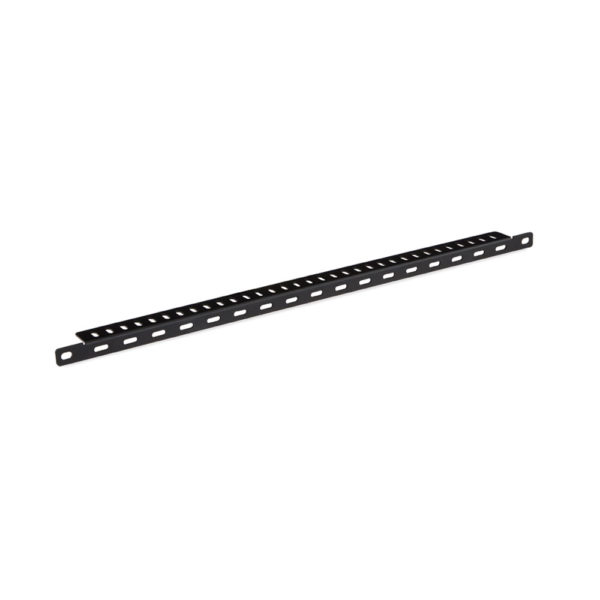

Flanged Lacing Bar - 10 pack

Item #:1903-1-110-00

Flanged Lacing Bar - 10 pack

Item #:1903-1-110-00
Designed to mount above, below, behind, or in front of your network devices, the Flanged Lacing Bar allows you to do more by using less space. And that's not all.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
Properly manage and protect your cables with the Kendall Howard Flanged Lacing Bar. Its size and versatility makes this a true space saving cable manager. Designed to mount above, below, behind, or in front of your network devices, the Flanged Lacing Bar allows you to do more by using less space. And that's not all. It provides a much needed stress relief for cable connections, and works well when routing just a few cables between switches and patch panels. Crowded spaces, unorganized cables, and strained connections are no longer an issue with the Kendall Howard Flanged Lacing Bar.
  • Quantity: 10
  • Features ½" slots to use with any ½" cable ties
  • Versatile, horizontal mounting
  • Uses less than one U space, or none at all if mounted in front of or behind equipment
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Space Saver

Mount the bar above, below, behind, or in front of your network device, vacating valuable U space for other network installation needs. The bar itself uses less than one U space, or none at all if mounted in front of or behind equipment.

Numerous Lacing Slots

Lacing slots are included on both flanges allowing you to route cables top to bottom or left to right. These lacing slots also nearly cover the entire length of the panel allowing convenient routing to both ends.

Strain Reliever

Designed to relieve cable stress and helps void pulling cables when routing them from one side of a rack to the other.

Easy to Use

Simply secure cables to any of the numerous lacing slots by using the Hook and Loop Cable Ties.

Specifications
Part Number 1903-1-110-00
Width 19"
Depth 1"
Height 0.58"
Weight 4.20 lbs.
Shipping Dimensions 20" L x 8" W x 8" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004274
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Flanged Lacing Bar 10
