Wall Mount Charging Station
Wall Mount Charging Station
- Charge 8-12, 12" tablets (or laptops depending on size)
- Locking, dual front doors
- Aluminum, low profile design

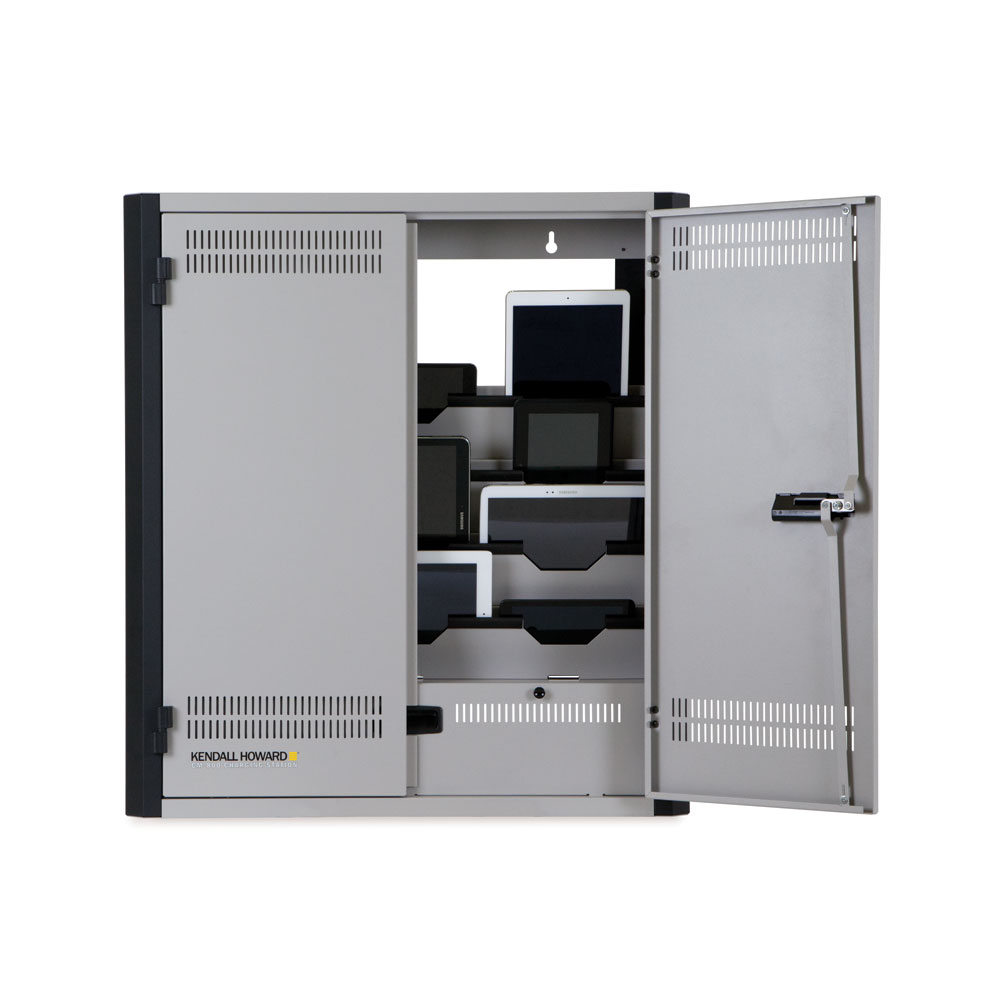

The Wall Mount Charging Station has four shelves that can hold up to three devices per shelf. Depending on the size and orientation of each device, it can hold 8-12, 12″ tablets (or laptops).
To run cables in the direction you prefer, nine Adhesive Backed Cable Holders are included. Upon installation, put each adhesive cable holder in the location of your choice. Then run cords through the cable slots down to the power strip located in the bottom panel.
To maintain security, the Wall Mount Charging Station can only be accessed with a key. Both doors are also a solid design to prevent unauthorized viewing.
Each shelf is lined with rubber strips to help prevent damage to devices.
Laser knockouts are featured on the top and bottom of the cabinet, providing cable entry points.
The Wall Mount Charging Station was designed to adapt with evolving technology. It’s a universal storage center that works with multiple brands, sizes, and styles of tablets and laptops.
Vented slots throughout the cabinet provide convenient air flow inside the cabinet to help keep the devices cool.
With its aluminum construction, the Wall Mount Charging Station is light weight and easy to install.
Part Number | CM-800 |
Width | 30" |
Depth | 6.5" |
Height | 33" |
Weight | 28.00 lbs. |
Shipping Dimensions | 34" L x 38" W x 11" H |
Material(s) | Aluminum |
Color/Finish | Gray Two-Tone/Black Powder Coated Finish |
UPC | 879447005554 |
Warranty | Limited Lifetime Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
Wall Mount Charging Station | 1 |
Adhesive Backed Cable Holders | 9 |
Wall Mount Hardware Kit | 1 |
8 Outlet Power Strip 125V/15A | 1 |
Grommets | 2 |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title Wall Mount Charging Station (CM-800) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 753 KB |
Download |
Title Wall Mount Charging Station (CM-800) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 190 KB |
Download |
Title Wall Mount Charging Station (CM-800) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 1 MB |
Download |
Title CM-800.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 6 MB |
Download |
-
