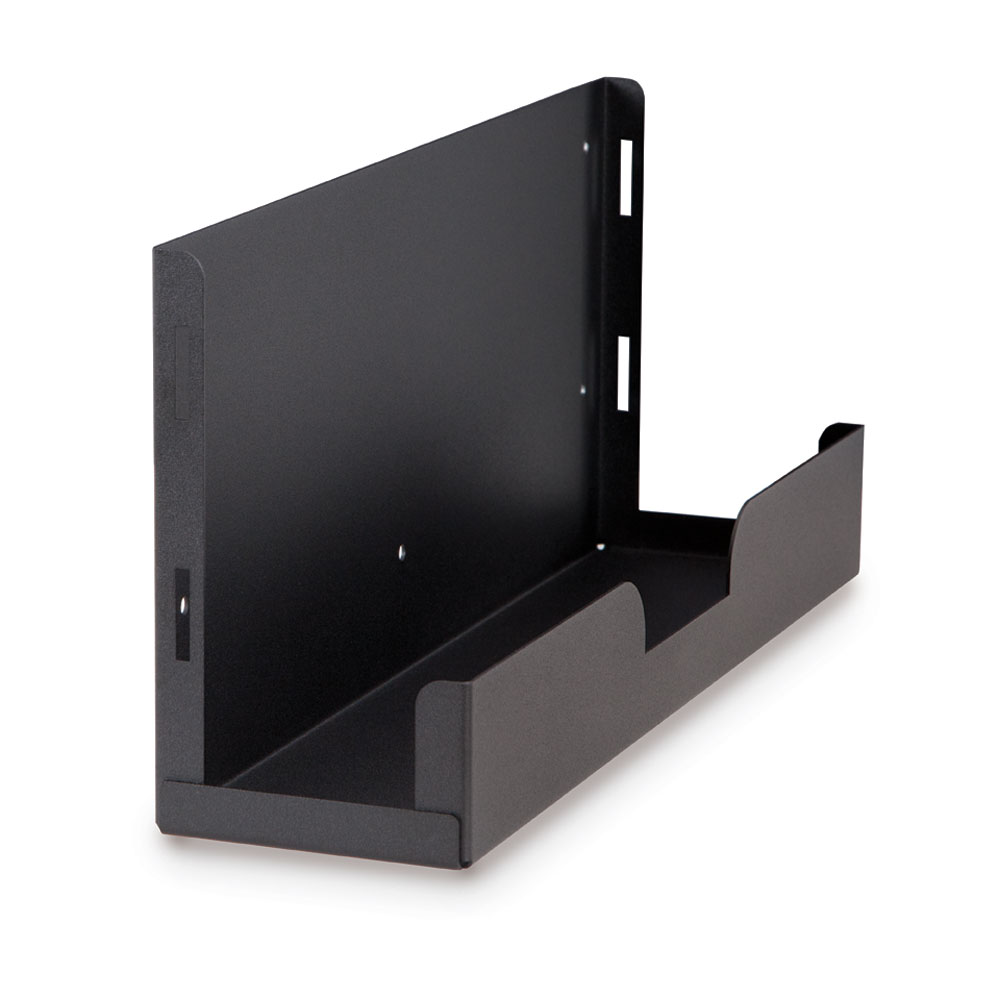

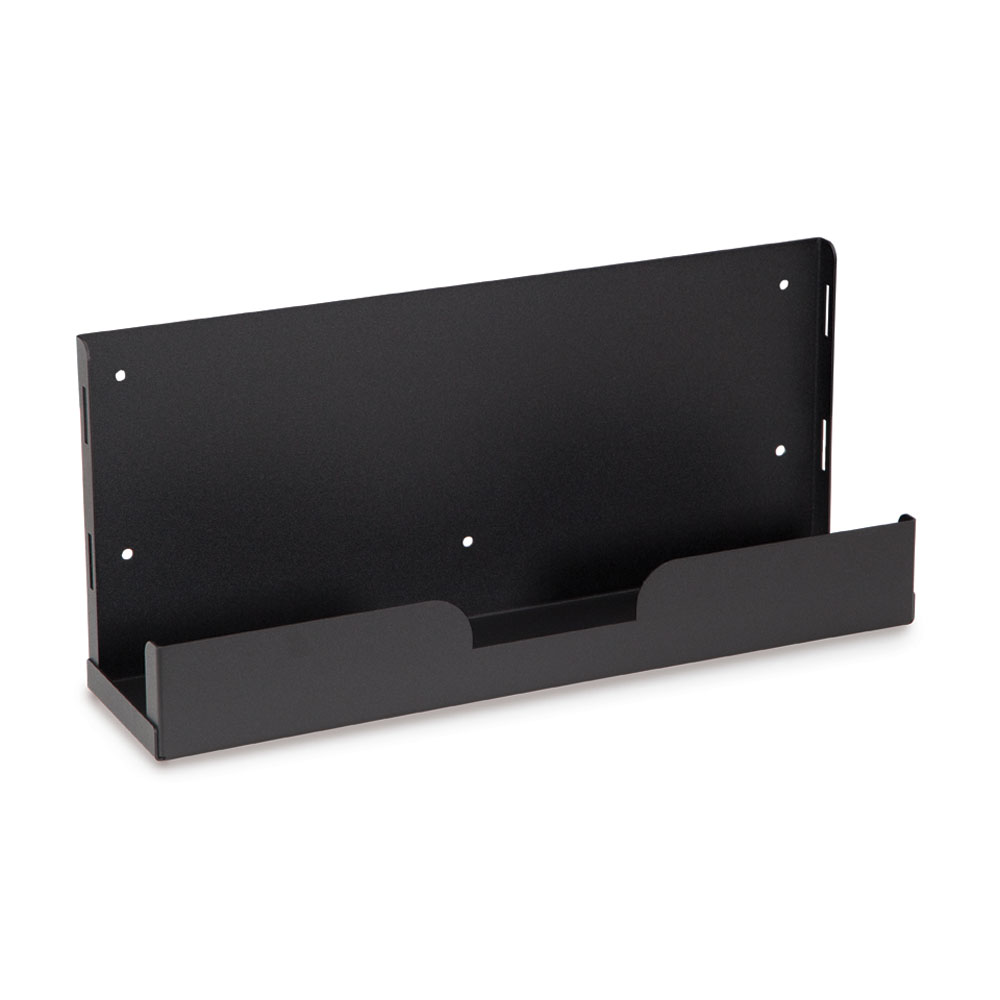

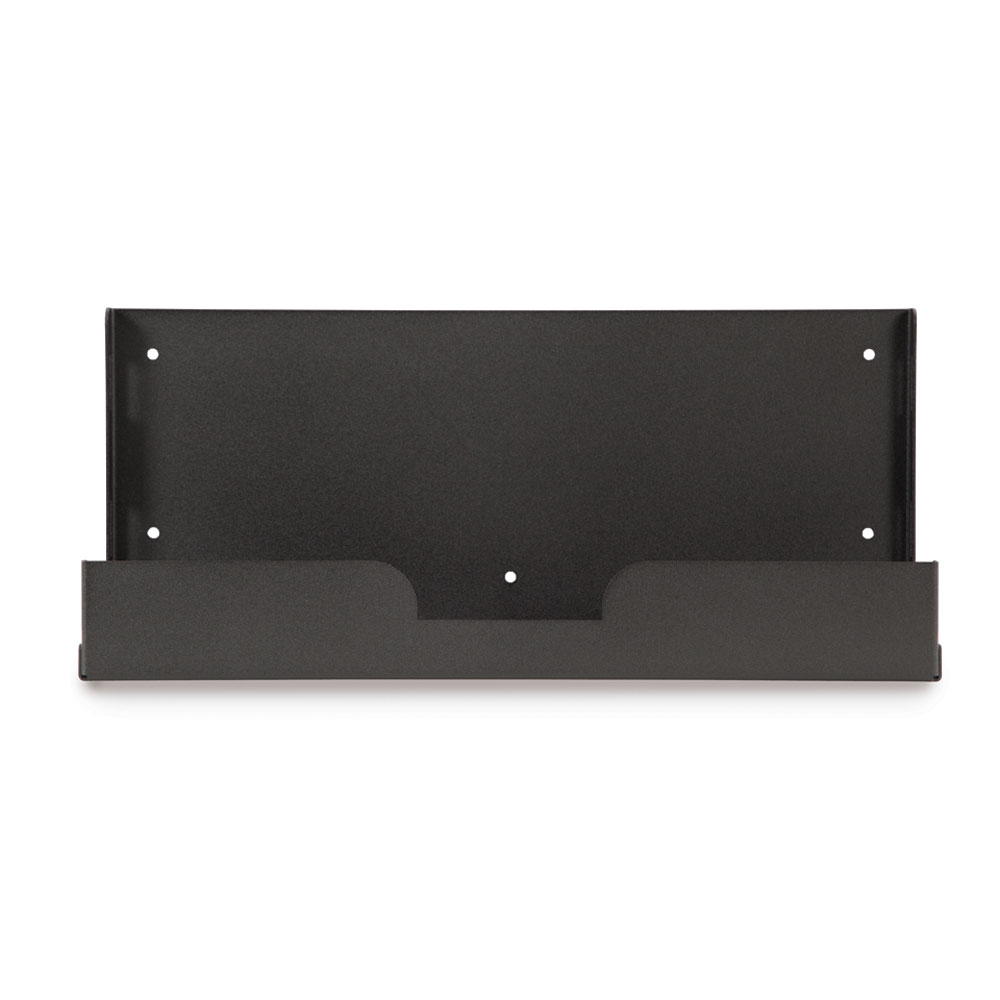

Wall Mount SFF CPU Bracket

Item #:1915-1-300-00

Wall Mount SFF CPU Bracket

Item #:1915-1-300-00
The Wall Mount SFF CPU Brackets are an easy mounting solution to protect your PC and ultimately get it off the floor or desktop.
Made in the USA
Limited Lifetime Warranty
Add to List
Description
Kendall Howard's Small-Form-Factor (SFF) Wall Mount CPU Brackets are designed to get the computer off the floor or desktop. Computers located on the floor are in continual danger of being jostled or kicked, and also create difficulty when accessing drives, ports, and card readers. But the desk is not always the best spot for this equipment either. Desktop computers and PCs located on desks take up valuable workspace, create a cluttered and unorganized look, and run the risk of being damaged by coffee or soda spills. The Wall Mount SFF CPU Brackets are an easy mounting solution to protect your PC and ultimately get it off the floor or desktop. To help secure the PC, a hook and loop stray is included with the bracket.
  • Heavy-duty 14-gauge steel
  • Maximum dimensions: 4.25" wide x 18" deep
  • 75 lb. weight capacity
  • Hook and loop strap included
  • Mounts in minutes to any wall or desk
  • Made in the USA
  • Limited Lifetime Warranty
Features
Universal Design

The heavy duty welded design provides a dependable mounting solution for most CPU’s and tower computers.

Included Hook & Loop Strap
The CPU shelf includes a large hook and loop strap that can be fed through slots on the side of the bracket for added support.
Easy to Install

The CPU bracket ships fully assembled. To install, simply secure hardware through the 16″ on center mounting holes and it is ready for use.

Specifications
Part Number 1915-1-300-00
Width 18.04"
Depth 4.5"
Height 7.9"
Weight 6.00 lbs.
Shipping Dimensions 20" L x 10" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001600
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Wall Mount Small-Form-Factor CPU Bracket 1
50" Hook & Loop Strap 1
