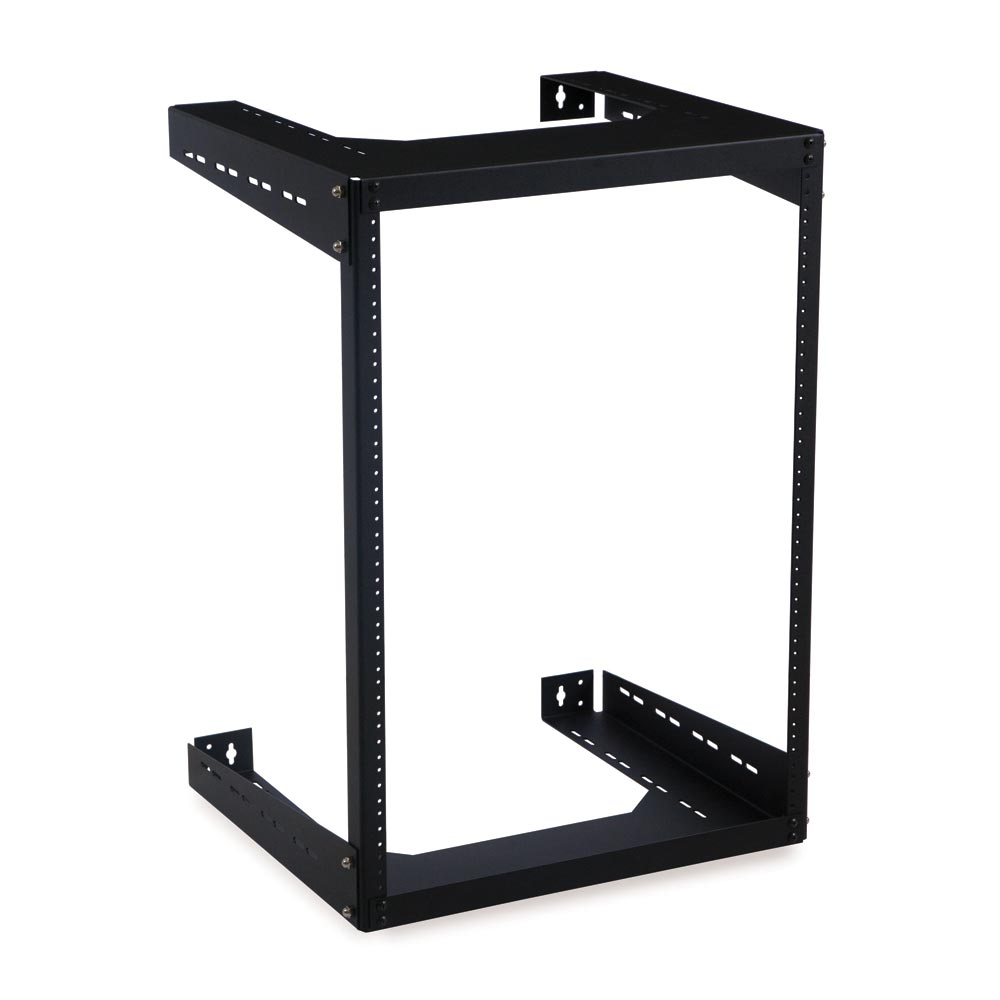

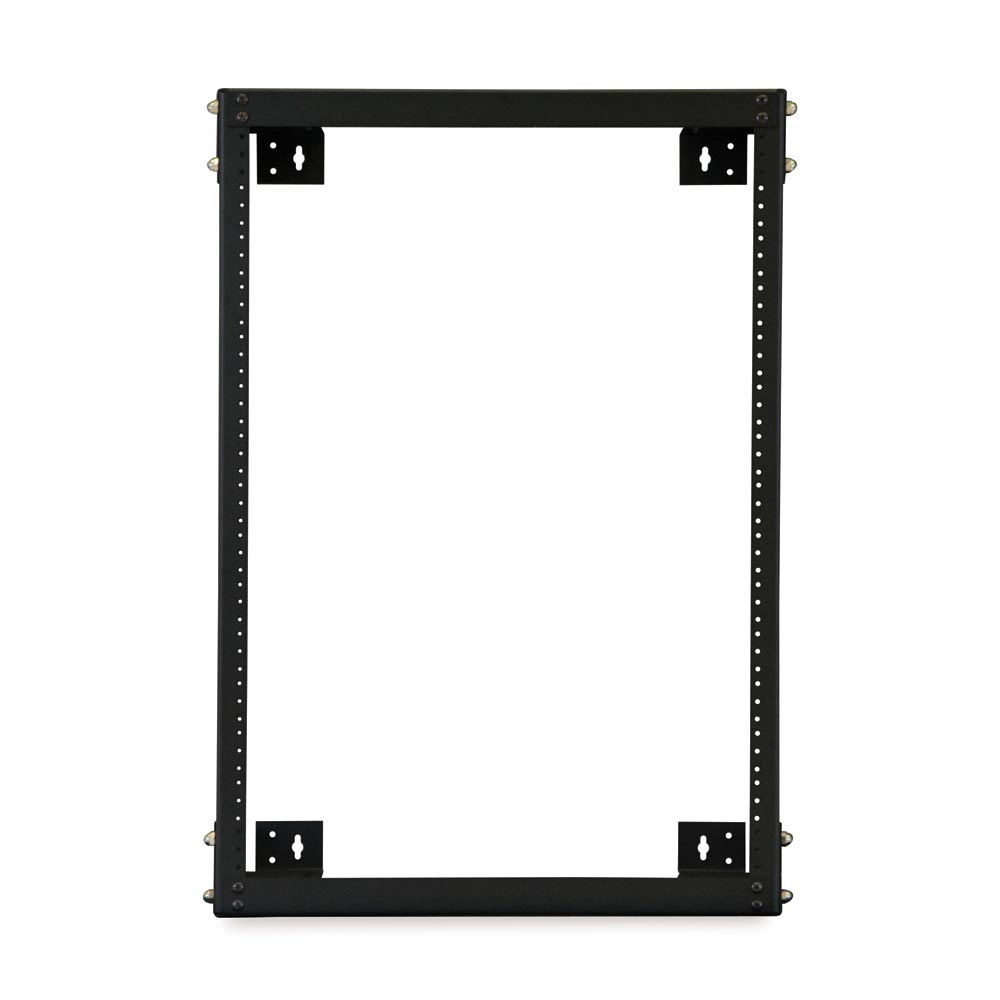

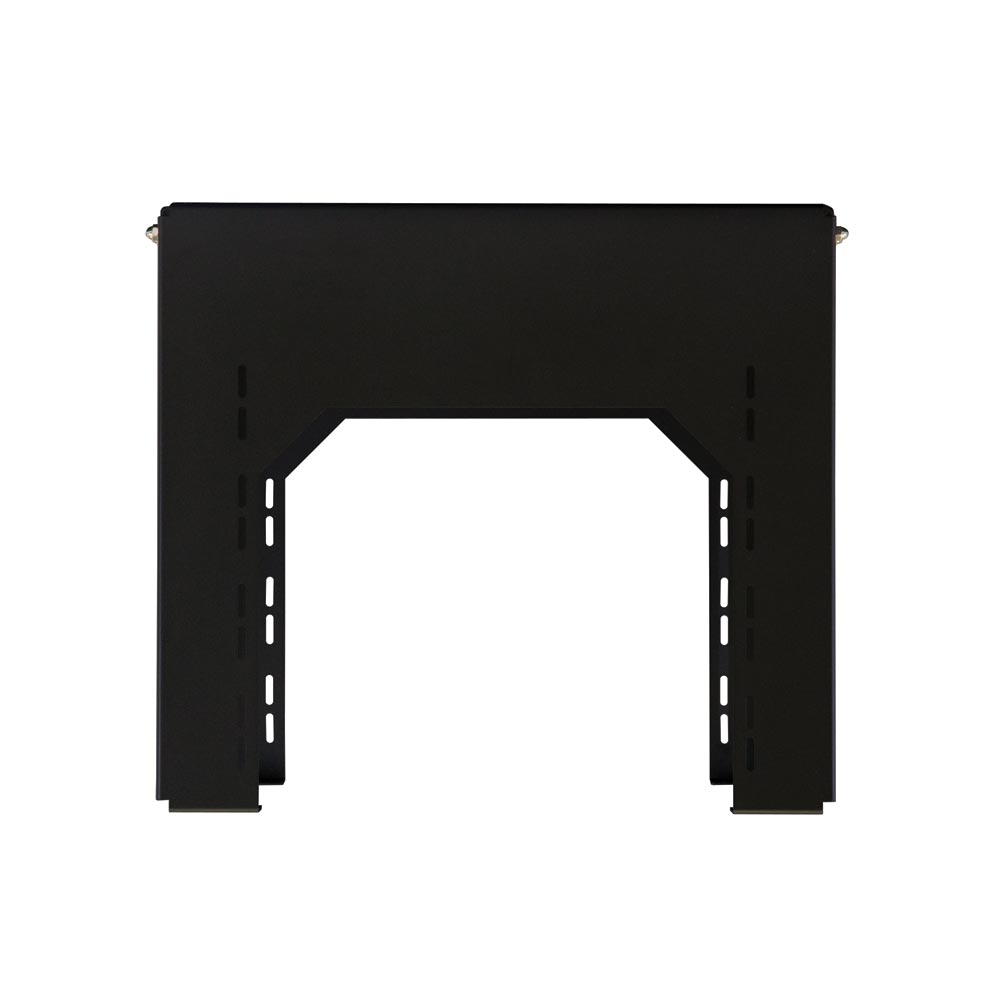

15U 18" Deep Open Frame Wall Rack

Item #:1915-3-500-15

15U 18" Deep Open Frame Wall Rack

Item #:1915-3-500-15
This sturdy, open frame rack permits 18” of usable depth to house network switches, patch panels, A/V devices, and other non-rackmountable equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
The 18” Deep Open Frame Wall Rack has a feature-rich, dual frame design making it easy for IT technicians to install. This sturdy, open frame rack permits 18” of usable depth to house network switches, patch panels, A/V devices, and other non-rackmountable equipment. For convenient cable routing in and around the installed equipment, use any of the cable lacing points found on the top and bottom of this 2-piece open wall rack. The 18” Deep Open Frame Wall Rack is sleek, with a simplistic design, making it a strong and durable solution for your next network system.
  • Two-piece design
  • 18” usable depth
  • 10-32 tapped rails
  • Includes 25 rack screws
  • Ships knockdown
  • 130 lb. weight capacity
  • 19” EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Two-Piece, Knockdown Design

The 18” Deep Open Frame Wall Rack includes two universal top and bottom frames and two universal rails that when mounted together, form a rugged and reliable network solution.

Cable Lacing Points

The top and bottom of the 18” Deep Open Frame Wall Rack feature cable lacing points making it easy to install, route, and manage network cables.

Quick Assembly

By using a crescent wrench and a Philips head screwdriver or drill, within minutes your 18” Deep Open Frame Wall Rack will be ready to install on the wall.

Specifications
Part Number 1915-3-500-15
Width 20.04
Depth 18.10
Height 28.13
Weight 20.00 lbs.
Shipping Dimensions 21” L x 30” W x 4” H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447005707
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
TAA Compliant Yes
What's in the Box
Item Quantity
Universal Top/Bottom Frames 2
Universal Rails 2
10-32 Rack Screws 25
Acorn Nuts 8
