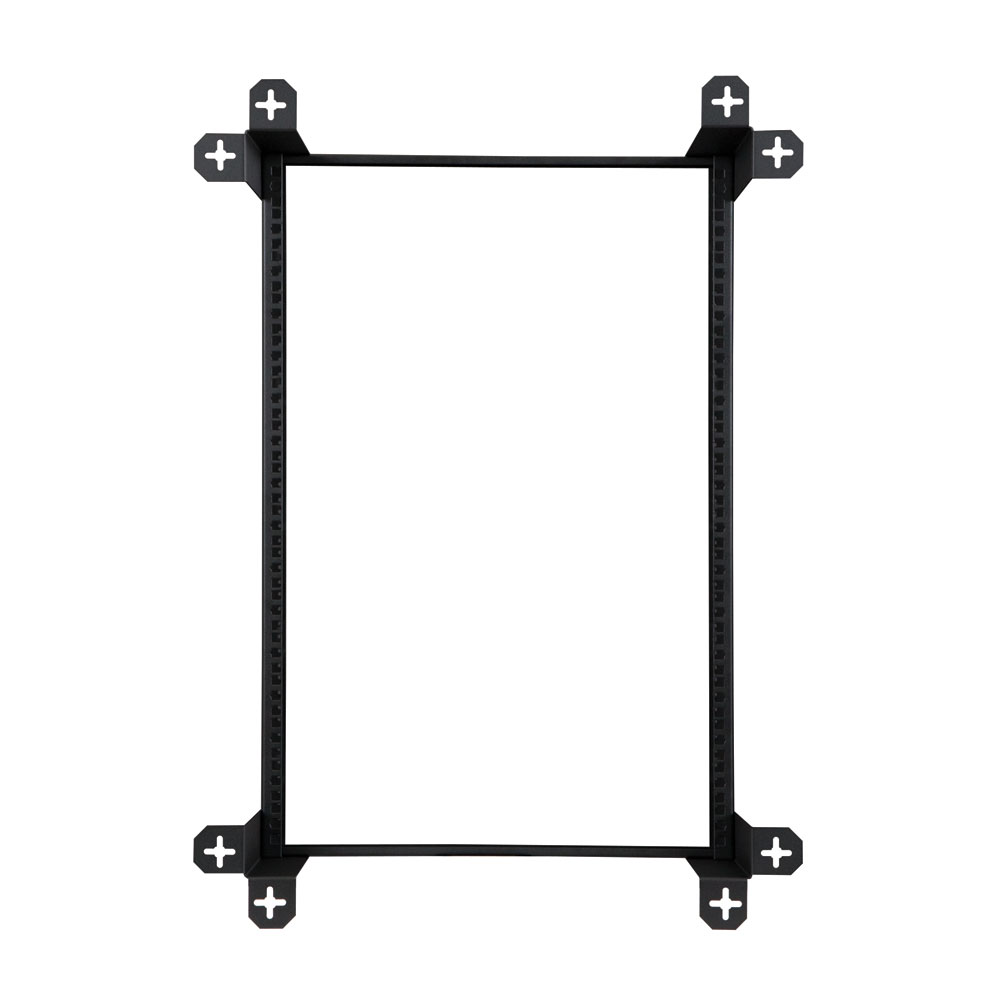

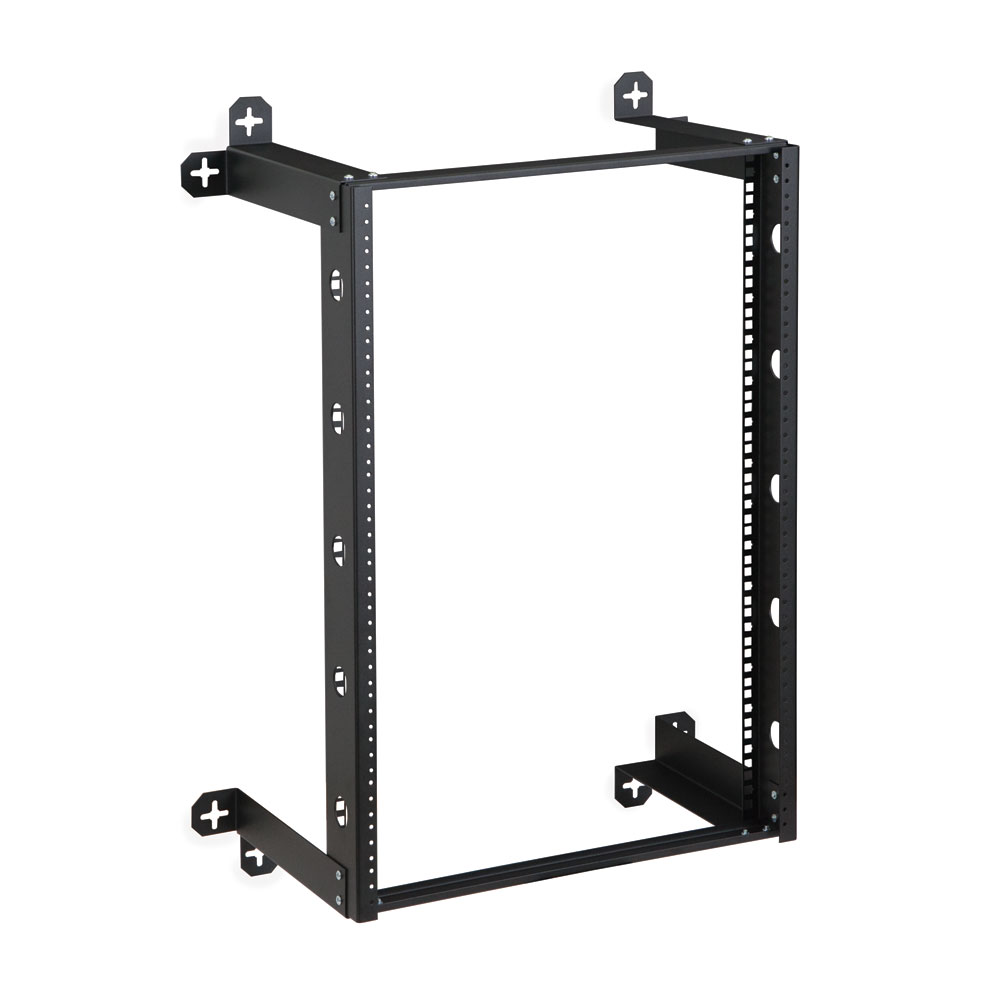

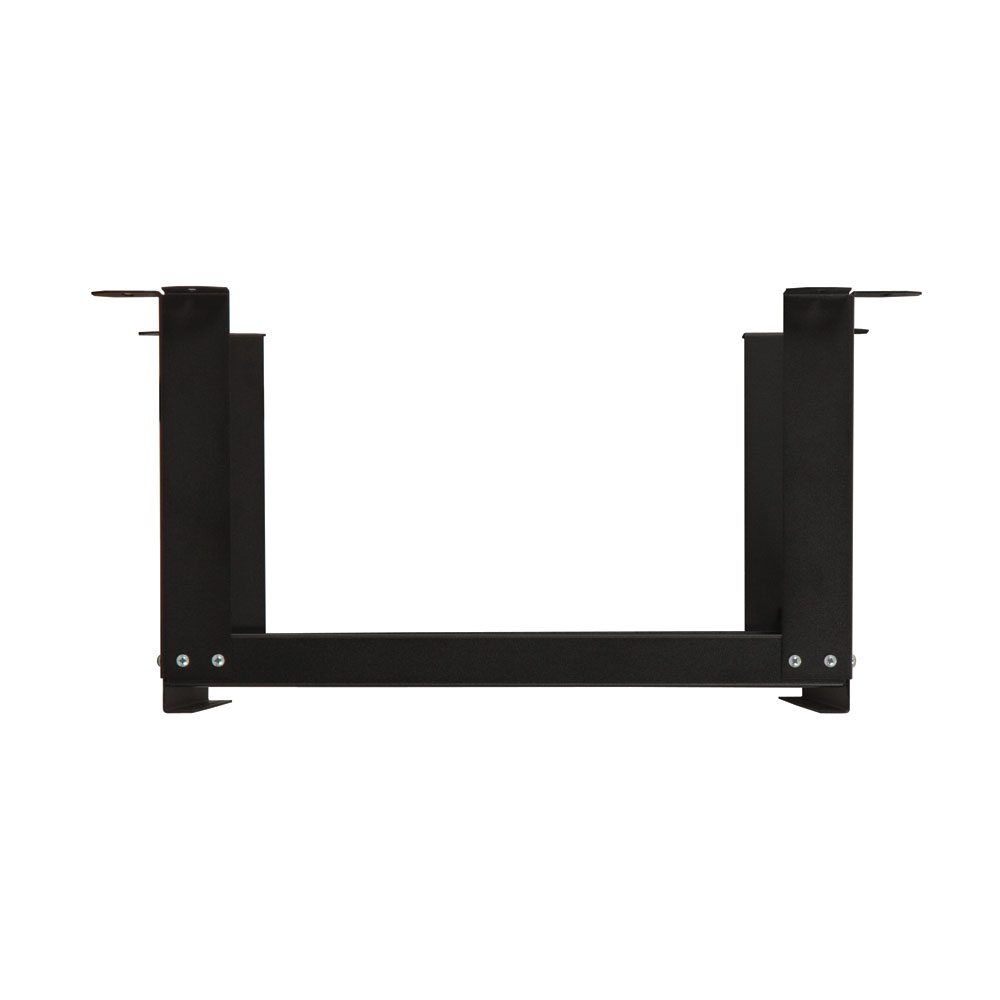

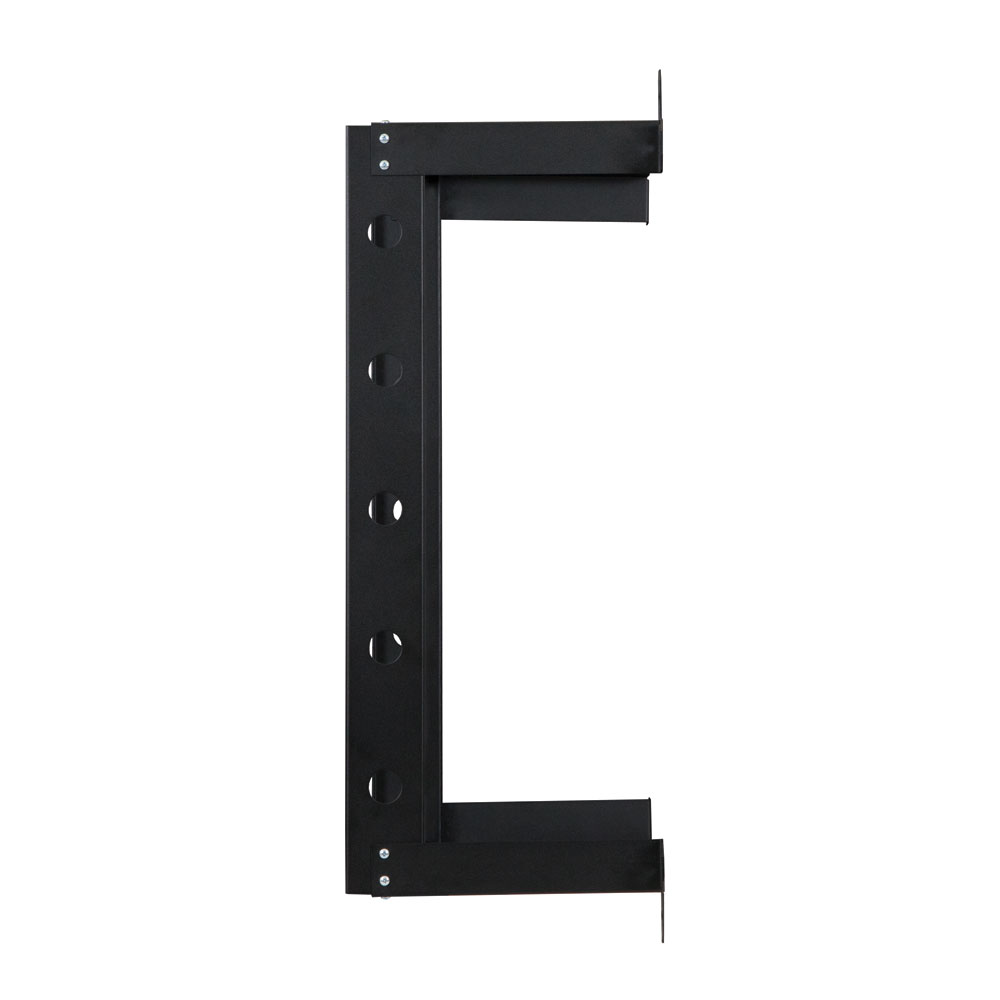

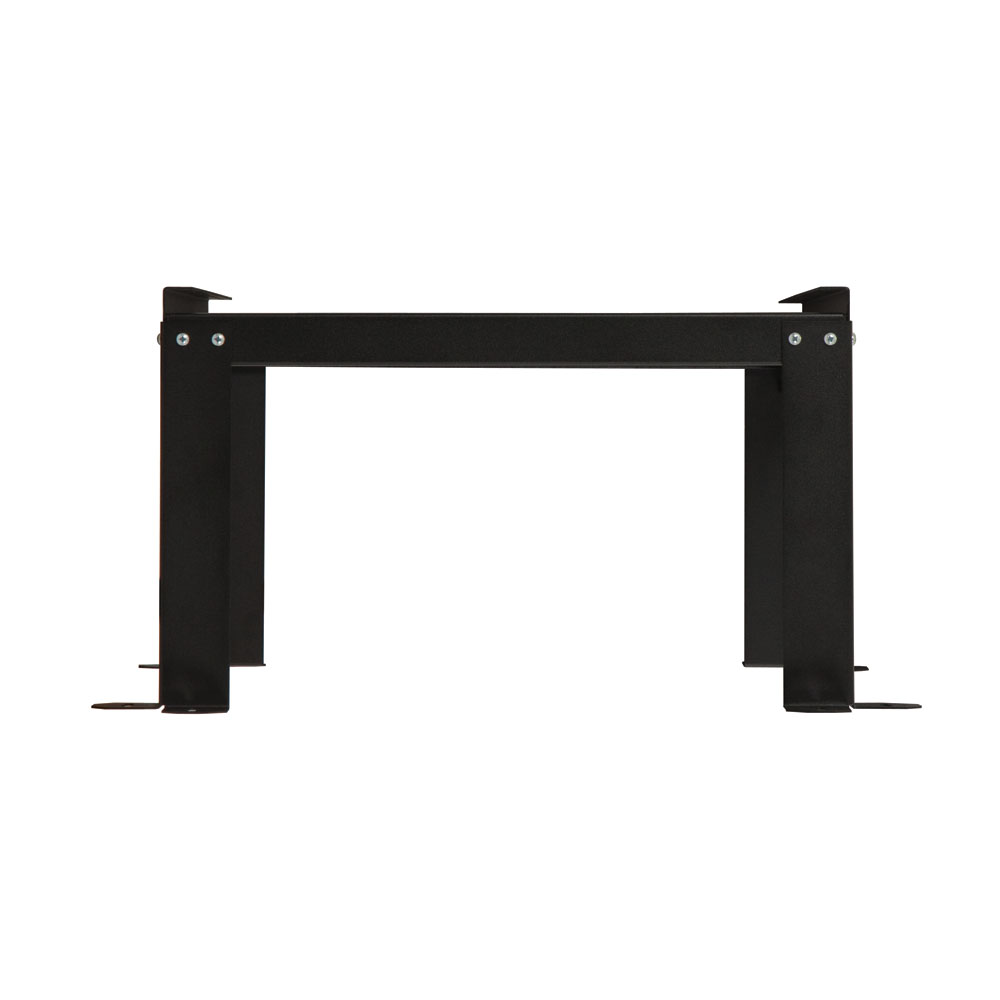

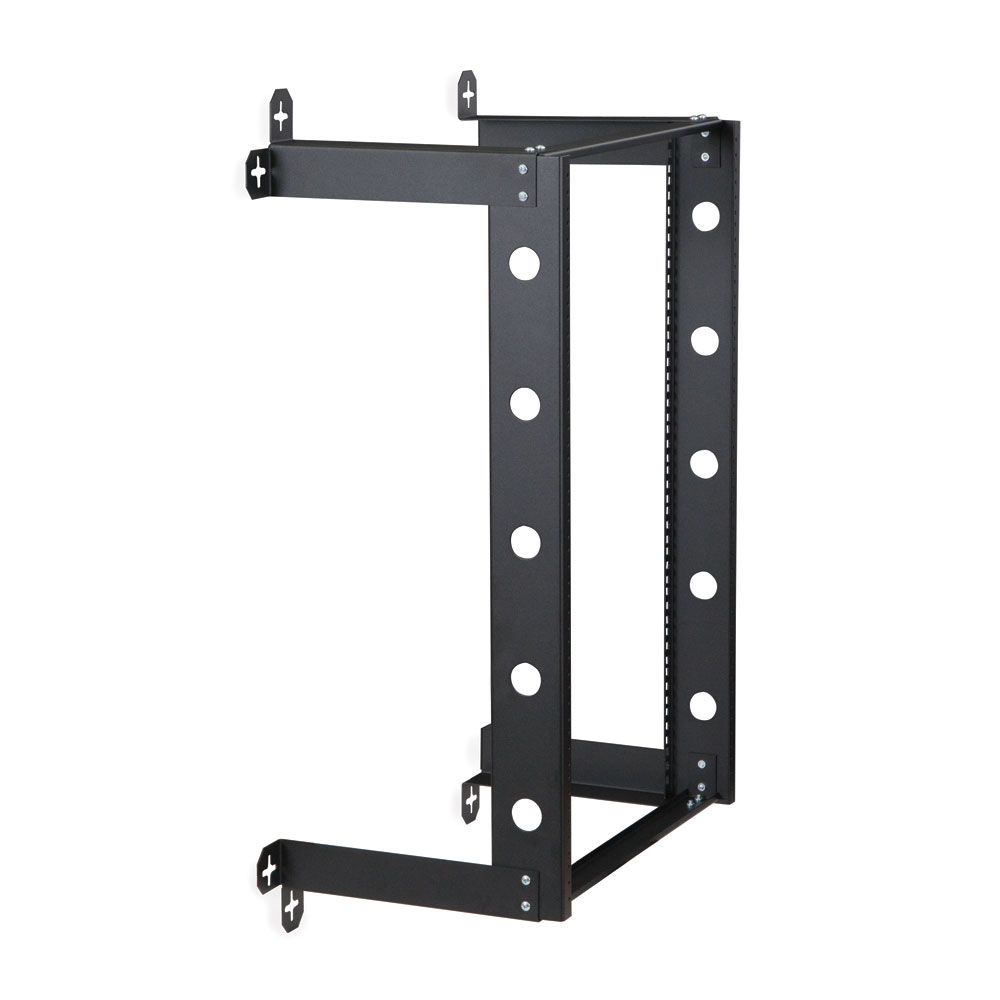

16U V-Line Wall Mount Rack - 12" Depth

Item #:1915-3-300-16

16U V-Line Wall Mount Rack - 12" Depth

Item #:1915-3-300-16
The V-Line Open Frame Fixed Wall Mount Racks are the perfect low cost solution that IT installers and A/V technicians use every day.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
Kendall Howard V-Line Open Frame Fixed Wall Mount Racks are the perfect low cost solution that IT installers and A/V technicians use every day. Kendall Howard knockdown 16U Fixed Wall Racks are incredibly easy to assemble and install.
  • 12" usable depth
  • Cage Nut or 10-32 Tapped Rails
  • Self-squaring design
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Knockdown Design

The bolt together assembly has a self-squaring design to make it incredibly easy to assemble and install.

Choose Your Rail Style

The U shaped rail channels feature two different mounting styles. One side features 10-32 tapped mounting holes, and the other has universal cage nut mounting capabilities.

Quality Wall Rack

The simplistic design of the V-Line Wall Mount Rack may not look it, but its 300 lb. weight capacity makes it one of the strongest wall mount solutions out there.

Specifications
Part Number 1915-3-300-16
Width 21.5"
Depth 12"
Height 31.13"
Weight 11.95 lbs.

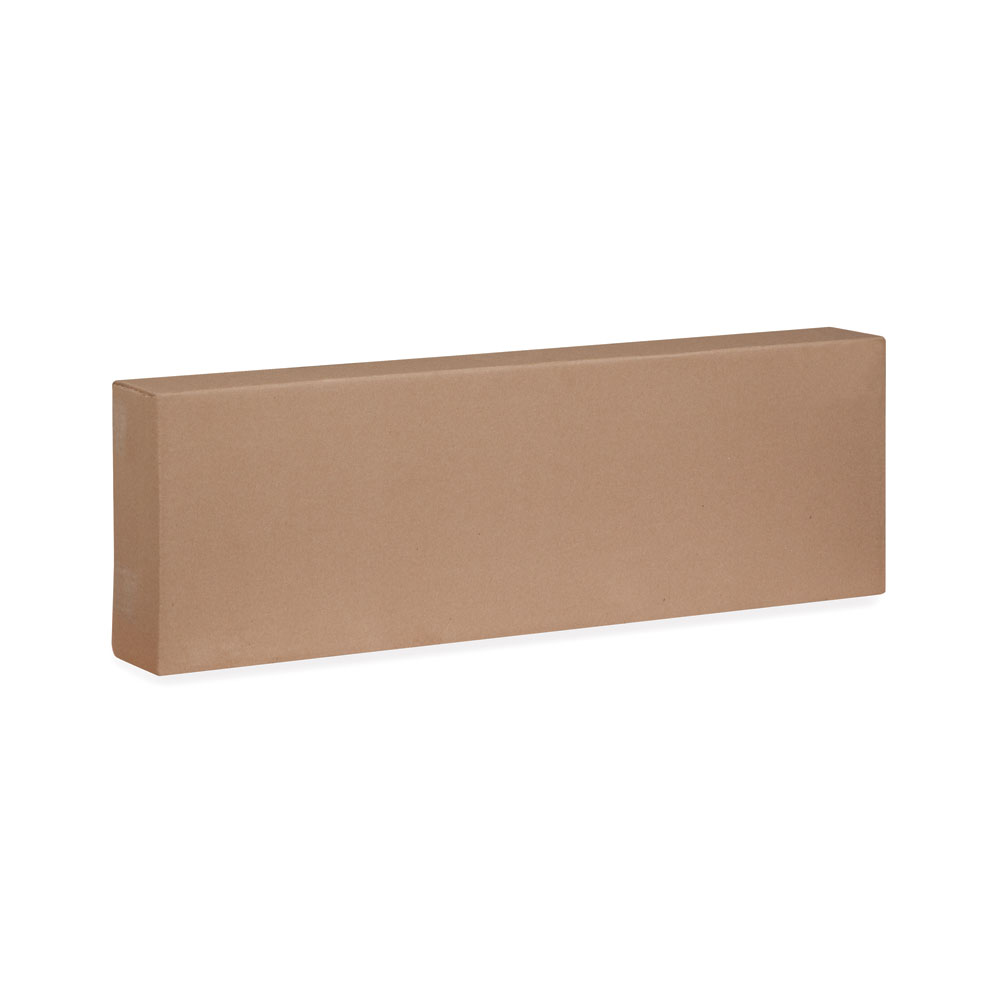

Shipping Dimensions 30" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001204
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
V-Line Wall Rack H-Brace 2
V-Line Wall Rack Brackets 4
V-Line 16U Rack Rails 2
Assembly Parts Pack 1
10-32 Rack Screws 24
10-32 Cage Nuts 24
