1U 4-Point Adjustable Shelf

Item #:1906-3-007-01

1U 4-Point Adjustable Shelf

Item #:1906-3-007-01
The 1U 4-Point Adjustable Rack Shelf is the perfect addition to any 4-post rack or cabinet.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description

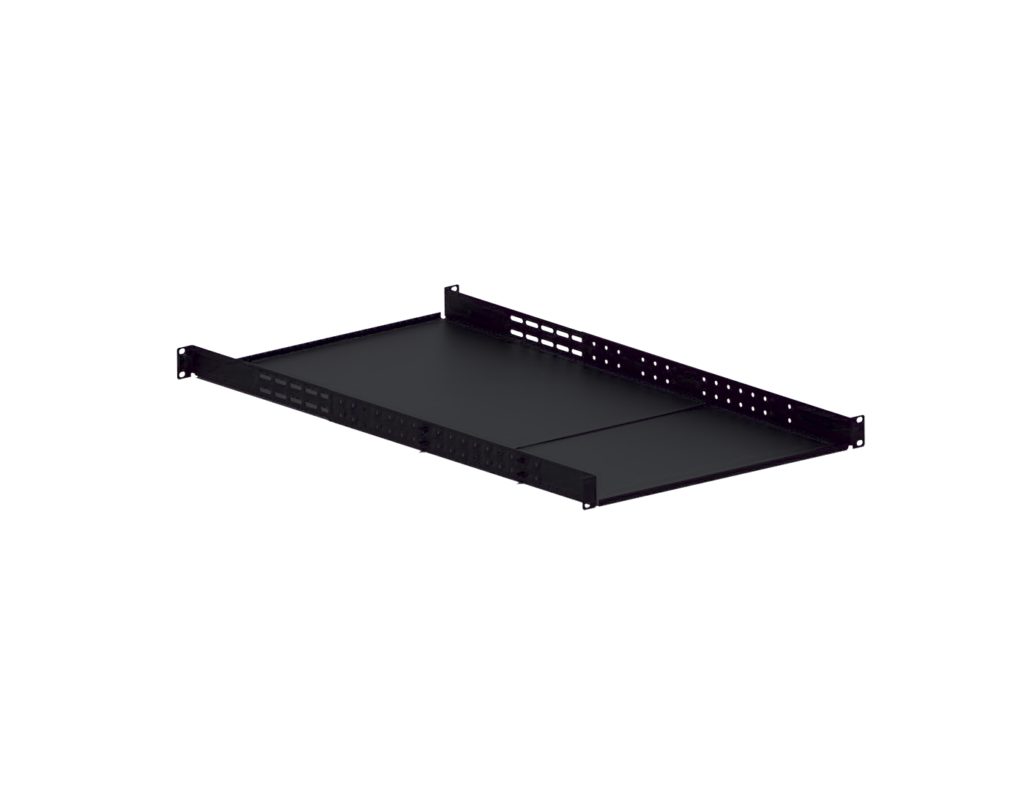

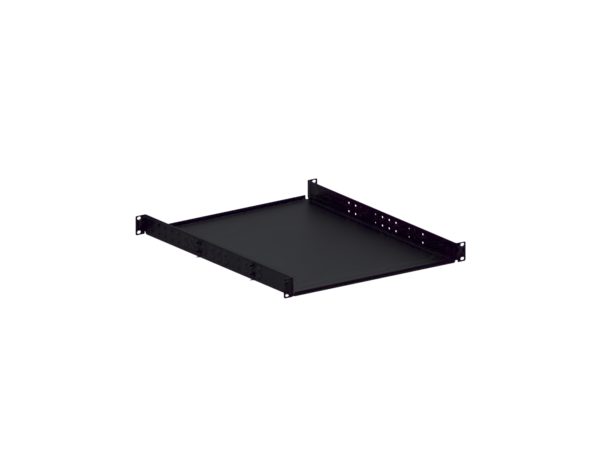

The Kendall Howard 1U 4-Point Adjustable Rack Shelf is the perfect addition to any 4-post rack or cabinet. The split design allows the shelf depth to be adjusted from 22" to 40". Save yourself the time and frustration of trying to find a rack shelf to fit a specific depth, and let this versatile solution meet all your shelving needs.
  • Adjusts from 22" to 40"
  • Vented option is available
  • 250 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Adjustable Depth

Telescoping rack shelf is comprised of two separate sections. The two sections can be slid in and out to the desired depth and secured with included hardware. (Mounting rack screws and cage nuts sold separately.)

4-Point Mounting

Adjustable depth shelf is designed to be mounted to the front and rear rack rails. This 4-point mounting is highly recommended for supporting large, heavy devices such as servers, battery backups, and UPS’s.

Heavy Duty

Made from heavy gauge steel and finished with a black textured powder coat for a quality shelf that can support up to 250 lbs.

Rounded Corners

Rounded corners reduce the risk of damage from sharp edges to your devices, cabling, and/or hands.

Specifications
Part Number 1906-3-007-01
Width 19"
Depth Adjustable: 22" - 40"
Height 1.72"
Weight 17.00 lbs.
Shipping Dimensions 22" L x 27" W x 3" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447002027
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
1U 4-Point Adjustable Shelf (side with holes) 1
1U 4-Point Adjustable Shelf (side with slots) 1
Assembly Parts Pack 1
Resources
Title Type Date Version File Size
Title
1U 4-Point Adjustable Shelf (1906-3-007-01) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
1.10 MB
Download
Title
1U 4-Point Adjustable Shelf (1906-3-007-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
Download
Title
1U 4-Point Adjustable Shelf (1906-3-007-01) Instructions
Type
Instructions
Date
11/21
Version
1
File Size
309.89 KB
Download
Title
1906-3-007-01.STEP
Type
3D CAD
Date
08/20
Version
1
File Size
248.23 KB
Download
