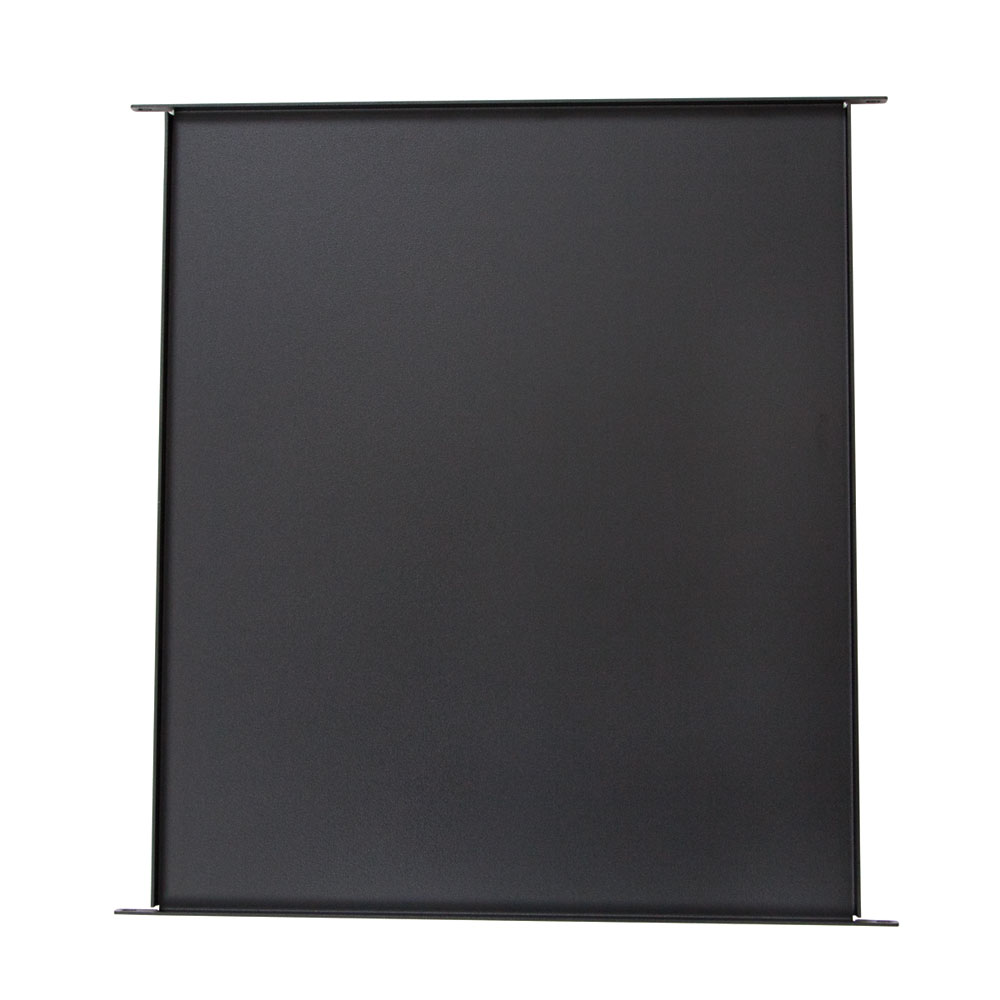

20" Fixed Rack Shelf
20" Fixed Rack Shelf
This solid, 4-point shelf is perfect for supporting non-rack mountable IT equipment such as UPS's, battery backups, servers, routers, hubs, and more.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard Full 20" Fixed Rack Shelf is one heavy duty shelf! It has the capacity to hold up to 300 lbs. of equipment, and can be mounted on both the front and rear rails for maximum strength. This solid, 4-point shelf is perfect for supporting non-rack mountable IT equipment such as UPS's, battery backups, servers, routers, hubs, and more.
- Fixed 20" mounting depth
- Low profile design
- 300 lb. weight capacity
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
4-Point Design
The 4-point design allows this rack shelf to be mounted on both the front and rear rails for maximum strength and stability.
Slim Profile
Taking up just the bottom portion of a U space, this shelf doesn’t sacrifice strength for its slender profile.
Heavy Duty
The heavy duty construction makes the shelf capable of holding up to 300 lbs. of equipment.
Specifications
| Part Number | 1904-1-001-01 |
| Width | 19" |
| Depth | 20.02" |
| Height | 0.47" |
| Weight | 10.50 lbs. |
| Shipping Dimensions | 26" L x 22" W x 2" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000214 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| Full 20" Fixed Rack Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 20" Fixed Rack Shelf (1904-1-001-01) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 20" Fixed Rack Shelf (1904-1-001-01) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 63.62 KB |
Download |
Title 20" Fixed Rack Shelf (1904-1-001-01) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 254.65 KB |
Download |
Title 1904-1-001-01.STEP |
Type 3D CAD |
Date 08/20 |
Version 1 |
File Size 43.76 KB |
Download |
