Universal Wire Minder

Item #:0004-1-002-01

Universal Wire Minder

Item #:0004-1-002-01
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List

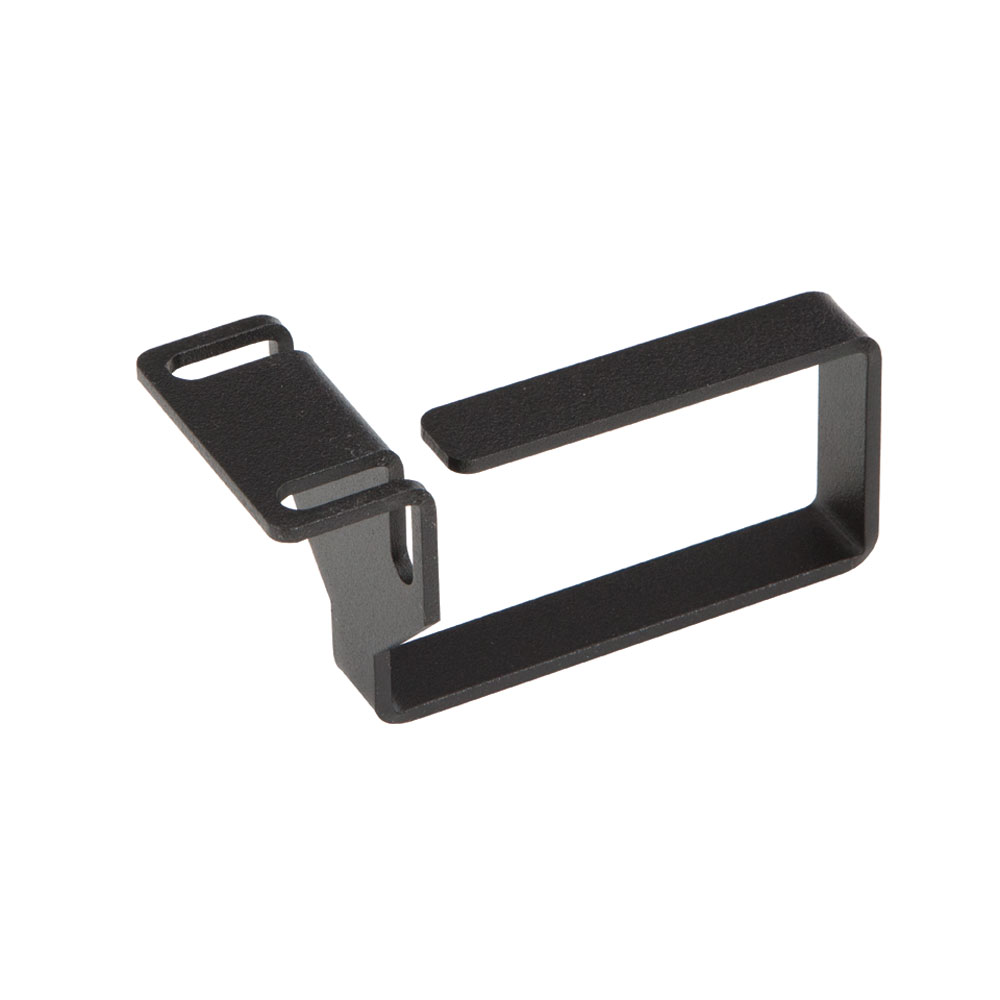

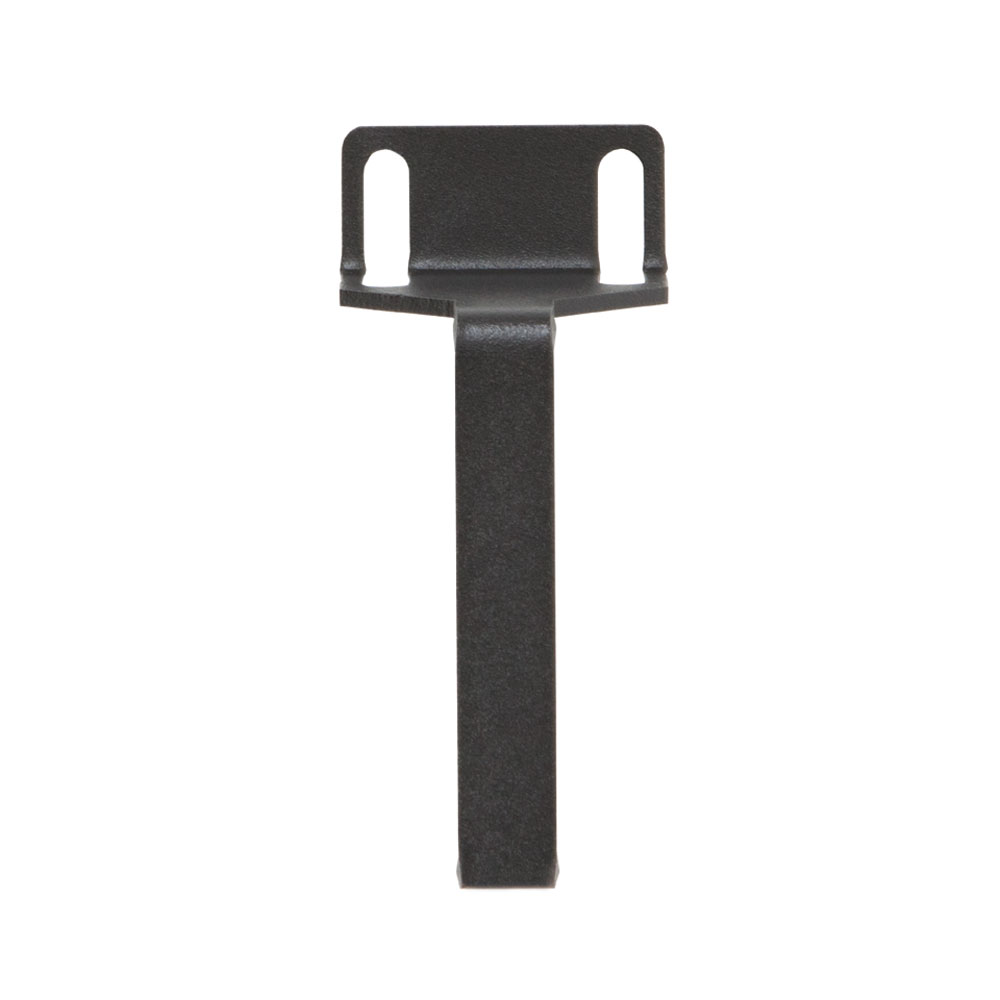

Description
The Kendall Howard Universal Wire Minder makes organizing and protecting cables a snap. Network cables that are not managed properly will decrease productivity, increase down time, and make it more difficult to trace connectivity issues. Rewiring a network or replacing cabling infrastructure can cost tens of thousands of dollars - so do it once, and do it right. What if you don't have a rack? No problem. The Universal Wire Minder can also be mounted along walls or under desks, making it the perfect solution to all of your cable organization needs.
  • Easily mounts in eight different positions
  • 3" x 1.5" cable capacity
  • Compatible with tapped and cage nut style rails
  • EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Multiple Uses

The unique design allows the Universal Wire Minder to be installed onto both cage nut and tapped rails within wall mount cabinets, wall mount racks, Telco racks, and even full size server cabinets.

Universal Mounting

The easy-to-use design can be attached to rackmount rails in eight different positions to route and manage cables.

Large Cable Capacity

The 3″ x 1.5″ opening can accommodate a variety of cables such as network, telecom, fiber optic, and power cables.

EIA Compliant

Mounting holes are designed to comply with EIA compliant rack rails and components.

Specifications
Part Number 0004-1-002-01
Cable Capacity 3" x 1.5" opening
Width 3.88"
Depth 2"
Height 1.72" (1U)
Weight 0.50 lbs.
Shipping Dimensions 6" L x 6" W x 6" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447000009
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Universal Wire Minder 1
Resources
Title Type Date Version File Size
Title
Universal Wire Minder (0004-1-002-01) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
Download
Title
0004-1-002-01.STEP
Type
3D CAD
Date
02/21
Version
1
File Size
25 KB
Download
Title
Universal Wire Minder 0004-1-002-01 Cut Sheet
Type
Date
02/21
Version
1
File Size
354 KB
Download
Title
Universal Wire Minder (0004-1-002-01) Instruction
Type
Instructions
Date
09/21
Version
1
File Size
393 KB
Download
