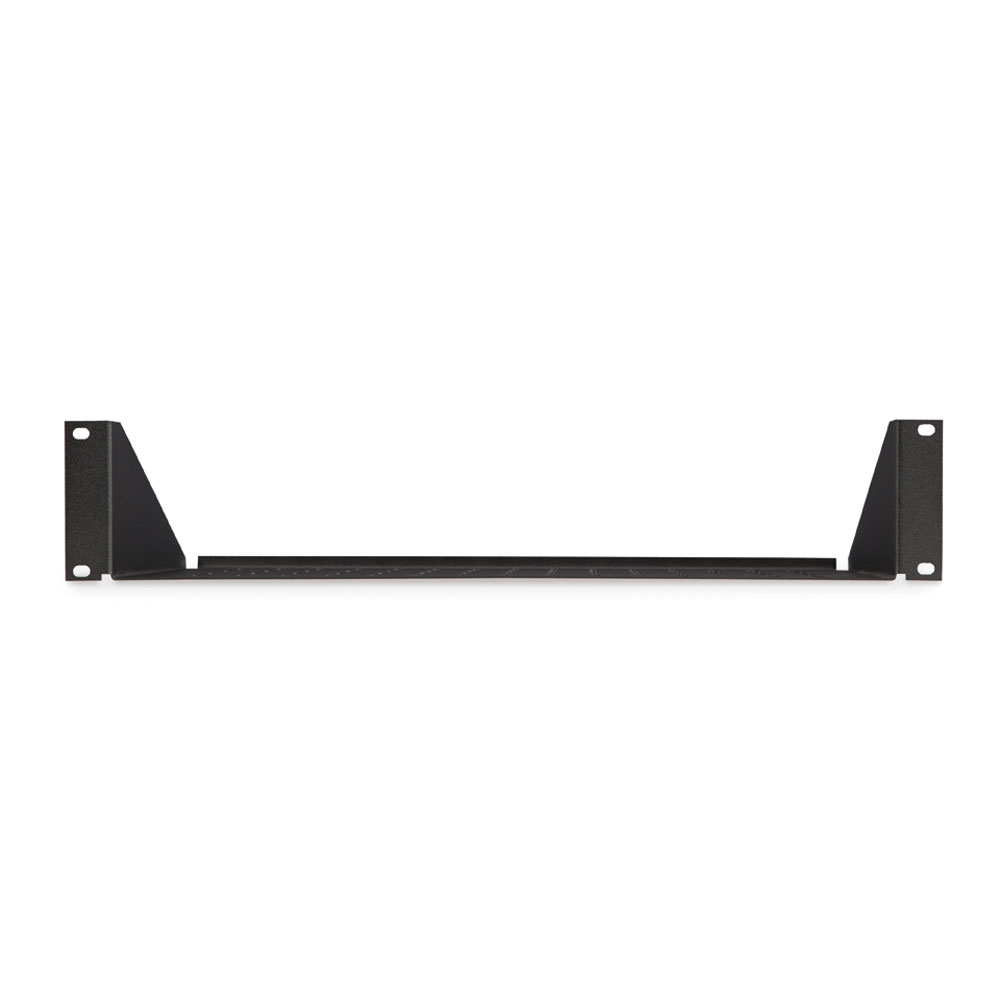

2U 12" Vented Economy Rack Shelf
2U 12" Vented Economy Rack Shelf

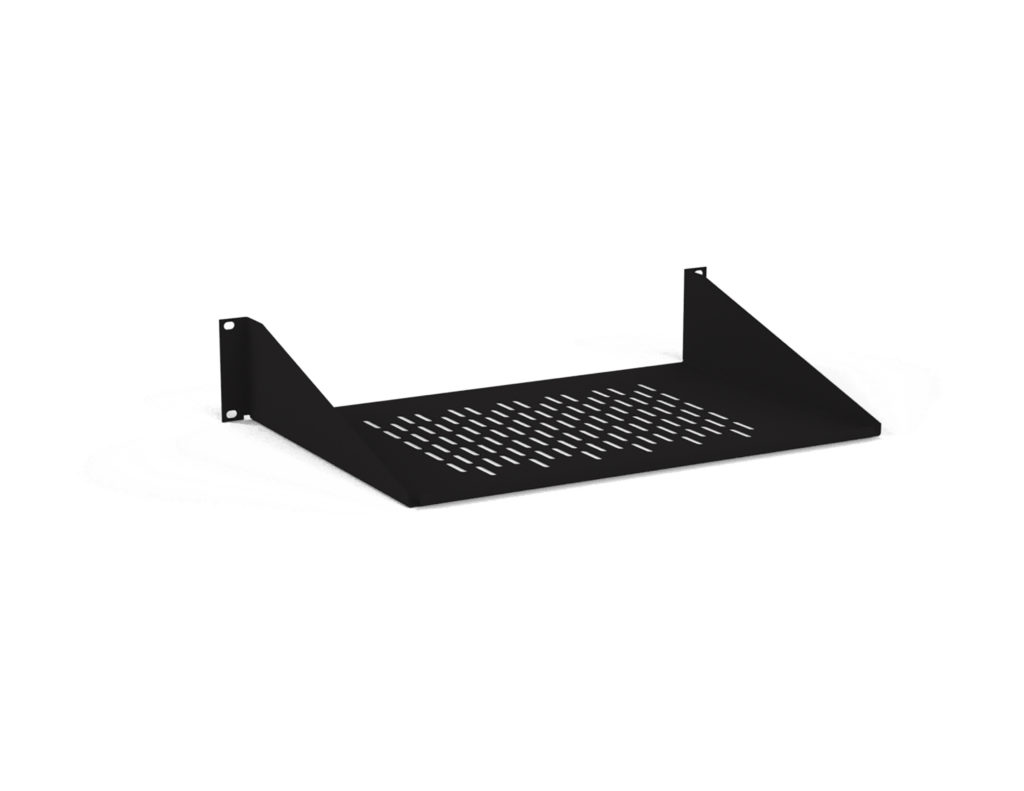

Designed with a vented base, this rack shelf allows for the needed air to circulate around your network equipment.
Made in the USA
Certifications
19" EIA compliant
Description
Kendall Howard offers a diverse line of rackmount component shelves, including the LINIER® Economy 2U 12" Vented Component Rack. This rack is one of our value line shelves and was designed to accommodate any standard 19" rack. Designed with a vented base, this rack shelf allows for the needed air to circulate around your network equipment. The dependable LINIER® Economy Vented 2U 12" Rack Shelf is capable of holding up to five times its weight.
- Low cost light duty shelf
- 25 lb. weight capacity
- 12" deep
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Features
Ventilation
Vented base prevents hot spots and allows air flow to freely circulate throughout the rack or cabinet.
Two-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Easy to Install
Each U space features four mounting holes. These mounting holes can be mounted with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
Rounded Corners
Rounded corners reduce the risk of damage to your devices, cabling, and/or hands.
Specifications
| Part Number | 3000-1-102-02 |
| Width | 19" |
| Depth | 12.112" |
| Height | 3.47" |
| Weight | 5.00 lbs. |
| Shipping Dimensions | 16" L x 22" W x 5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000962 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 2U 12" Vented Economy Rack Shelf | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 2U 12" Vented Economy Rack Shelf (3000-1-102-02) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 869.58 KB |
Download |
Title 2U 12" Vented Economy Rack Shelf (3000-1-102-02) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 239.73 KB |
Download |
Title 3000-1-102-02.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 248.14 KB |
Download |
Title 3000-1-102-02 Data Sheet |
Type Data Sheet |
Date 11/20 |
Version 1 |
File Size 140.28 KB |
Download |
