8U Wall Mount Rack
8U Wall Mount Rack
The unique two-piece design adjusts to any width and offers generous 18" depth for cables, switches, routers, and so much more.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description

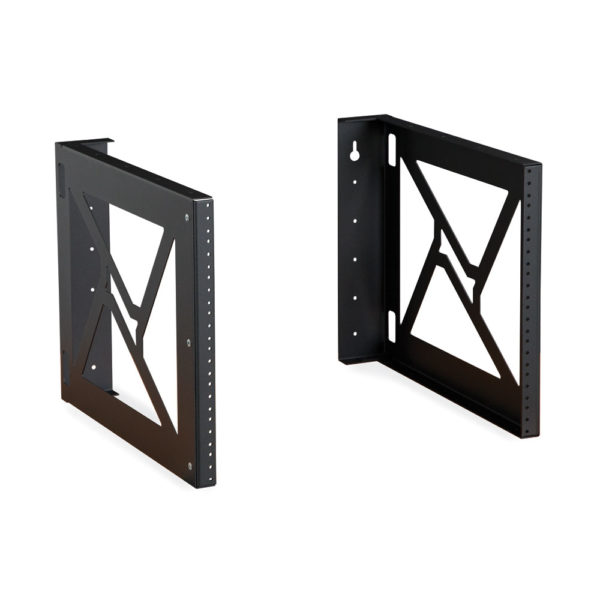

The Kendall Howard 8U Wall Mount Rack was the first of its kind! It did not take long for this rack to become the standard that all wall mount racks are measured against. The two-piece design offers unlimited flexibility. This innovative design can adjust to any width so it can house either 19" EIA or 23" EIA rackmount equipment. The generous 18" depth has enough room for cables, switches, routers, and so much more. Whether you are mounting it under a desk, on a wall, or to the ceiling, the 8U Modular Wall Mount Rack is perfect for any application.
Features
Two-Piece Design
The unique design allows you to choose the width. With equipment widths continuing to change, the two-piece wall rack can adapt to suit your needs.
Heavy Duty
Pure ingenuity and heavy gauge steel construction give this wall mount rack its impressive 350 lb. weight capacity.
Gangable
This modular wall mount rack can grow with your network. If you need more rack space, just gang two units together vertically.
Standard Tapped Rails
The 10-32 pre-tapped mounting rails can be utilized to install network and other rackmount equipment with the use of 10-32 rack screws (not included).
Easy to Install
With the use of the included wall mount template, installation takes less than five minutes!
Specifications
| Part Number | 1915-3-001-08 |
| Width | Adjustable |
| Depth | 18.13" |
| Height | 14.25" |
| Weight | 12.00 lbs. |
| Shipping Dimensions | 21" L x 17" W x 5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000320 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 8U Wall Mount Rack Left Side | 1 |
| 8U Wall Mount Rack Right Side | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 1915-3-001-08 Cut Sheet |
Type |
Date 05/19 |
Version 1 |
File Size 895.59 KB |
Download |
Title 1915-3-001-08 Instructions |
Type |
Date 05/19 |
Version 1 |
File Size 303.21 KB |
Download |
Title 1915-3-001-08 Web Print |
Type |
Date 05/19 |
Version 1 |
File Size 48.32 KB |
Download |
Title 1915-3-001-08.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 267.87 KB |
Download |
