2U 14.75" Vented Economy Rack Shelf
2U 14.75" Vented Economy Rack Shelf
- Low cost light duty shelf
- 25 lb. weight capacity
- 14.75" deep
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
Vented base prevents hot spots and allows air flow to freely circulate throughout the rack or cabinet.
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Each U space features four mounting holes. These mounting holes can be mounted with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
Rounded corners reduce the risk of damage to your devices, cabling, and/or hands.
Part Number | 3000-1-103-02 |
Width | 19" |
Depth | 14.75" |
Height | 3.47" |
Weight | 5.50 lbs. |

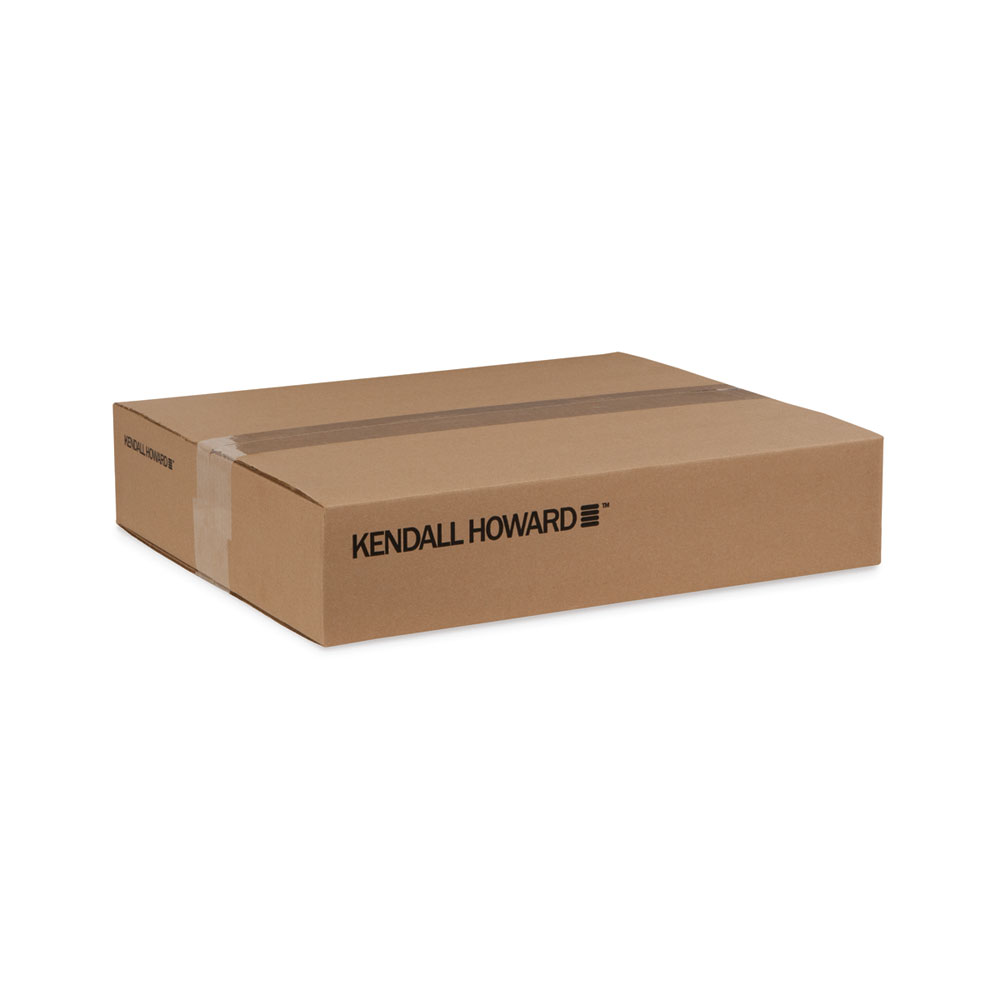

Shipping Dimensions | 21" L x 18" W x 5" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Black Powder Coated Finish |
UPC | 879447000986 |
Warranty | 5-Year Limited Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
2U 14.75" Vented Economy Rack Shelf |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 2U 14.75" Vented Economy Rack Shelf (3000-1-103-02) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 870 KB |
Download |
Title 2U 14.75" Vented Economy Rack Shelf (3000-1-103-02) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 664 KB |
Download |
Title 3000-1-103-02.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 314 KB |
Download |
Title 3000-1-103-02 Data Sheet |
Type Data Sheet |
Date 11/20 |
Version 1 |
File Size 163 KB |
Download |
-
