12U Wall Mount Rack

Item #:1915-3-001-12

12U Wall Mount Rack

Item #:1915-3-001-12
Whether you are mounting it under a desk, on a wall, or to the ceiling, the 12U Modular Wall Mount Rack is perfect for any application.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description

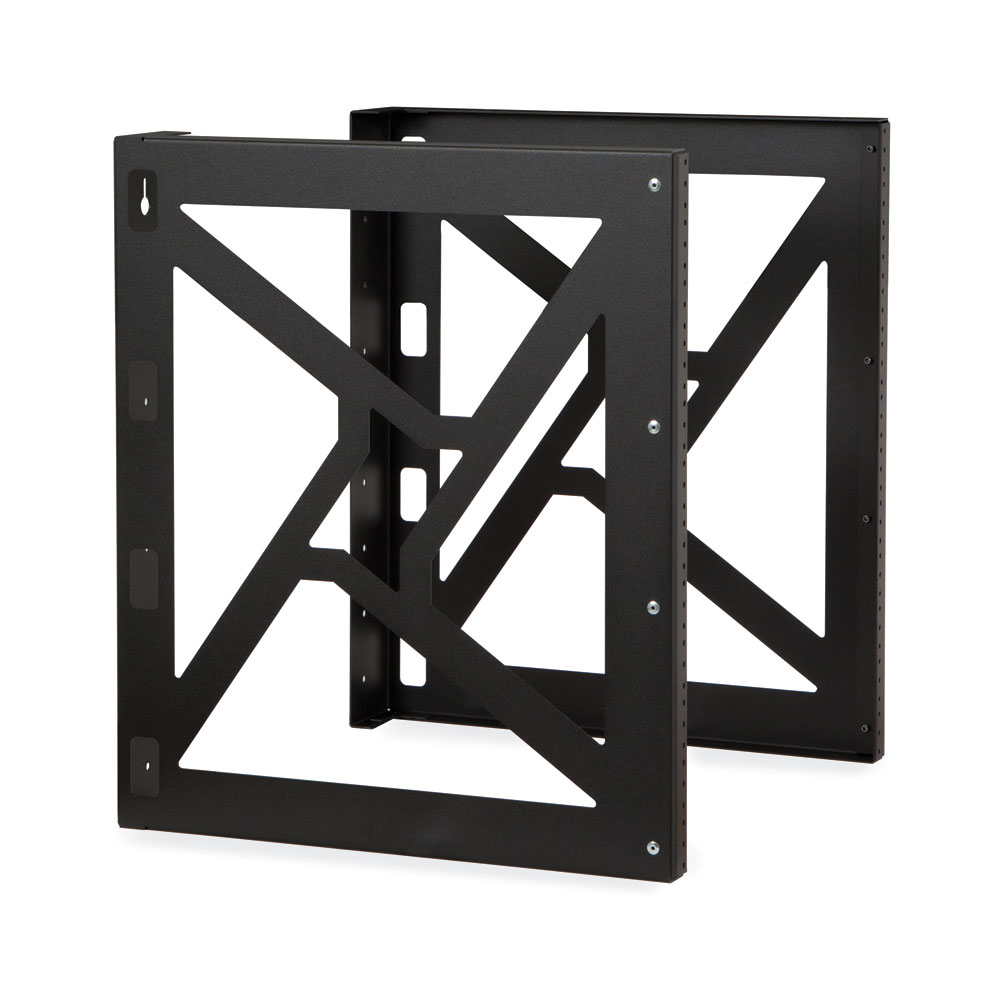

The Kendall Howard 12U Wall Mount Rack was the first of its kind! It did not take long for this rack to become the standard that all wall mount racks are measured against. The two-piece design offers unlimited flexibility. This innovative design can adjust to any width so it can house either 19" EIA or 23" EIA rackmount equipment. The generous 18" depth has enough room for cables, switches, routers, and so much more. Whether you are mounting it under a desk, on a wall, or to the ceiling, the 12U Modular Wall Mount Rack is perfect for any application.
Features

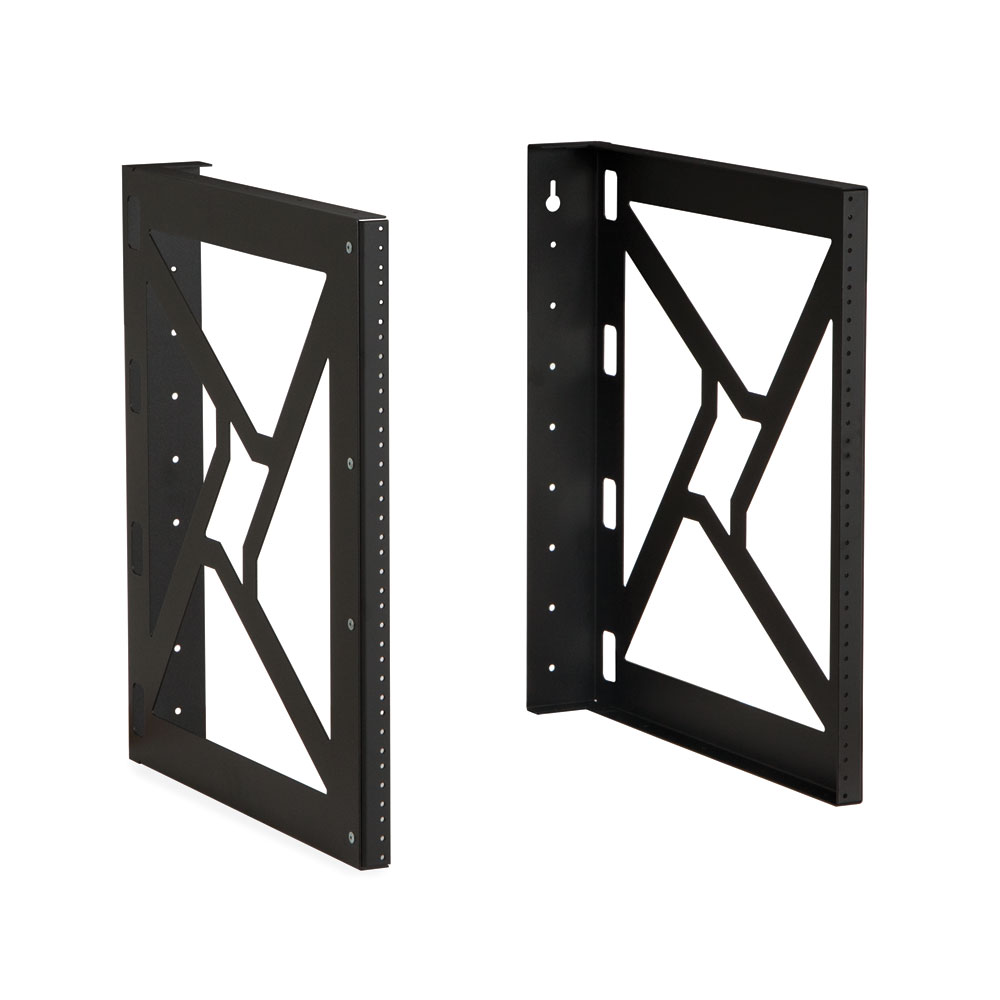

Two-Piece Design

The unique design allows you to choose the width. With equipment widths continuing to change, the two-piece wall rack can adapt to suit your needs.

Heavy Duty

Pure ingenuity and heavy gauge steel construction give this wall mount rack its impressive 350 lb. weight capacity.

Gangable

This modular wall mount rack can grow with your network. If you need more rack space, just gang two units together vertically.

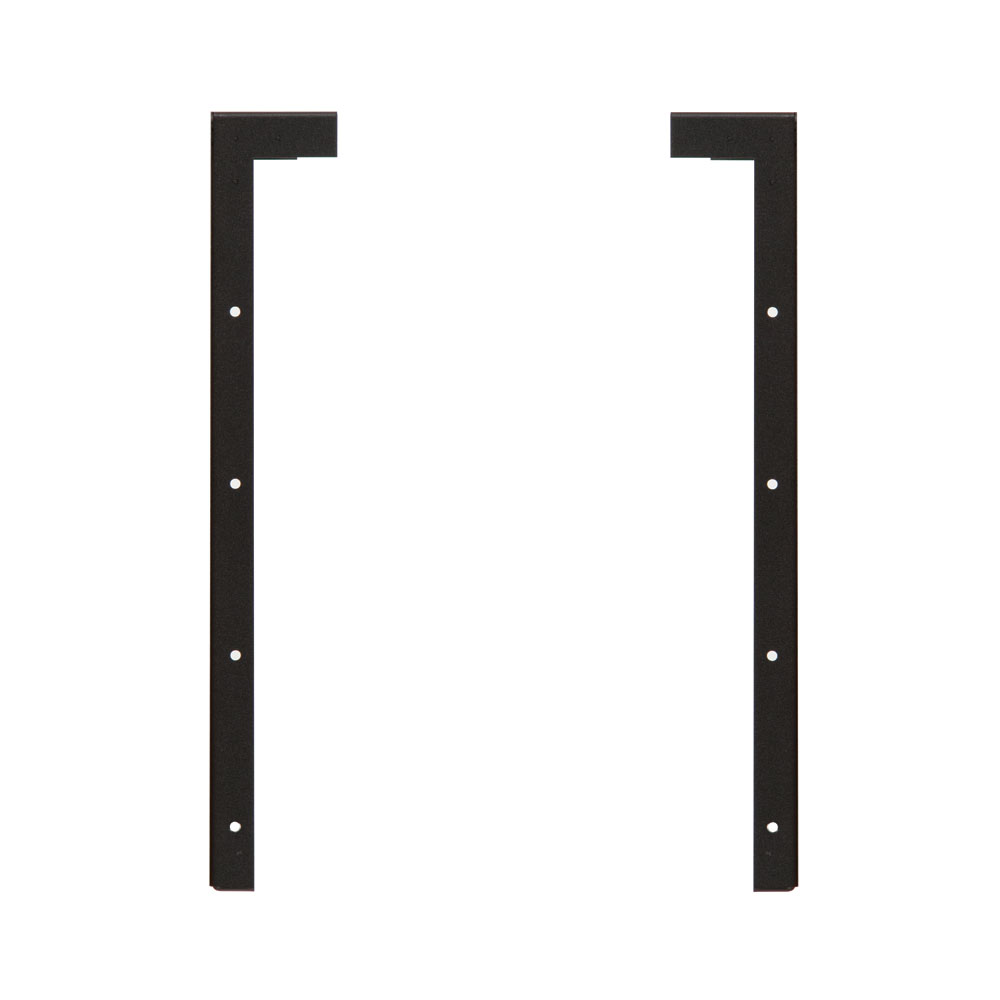

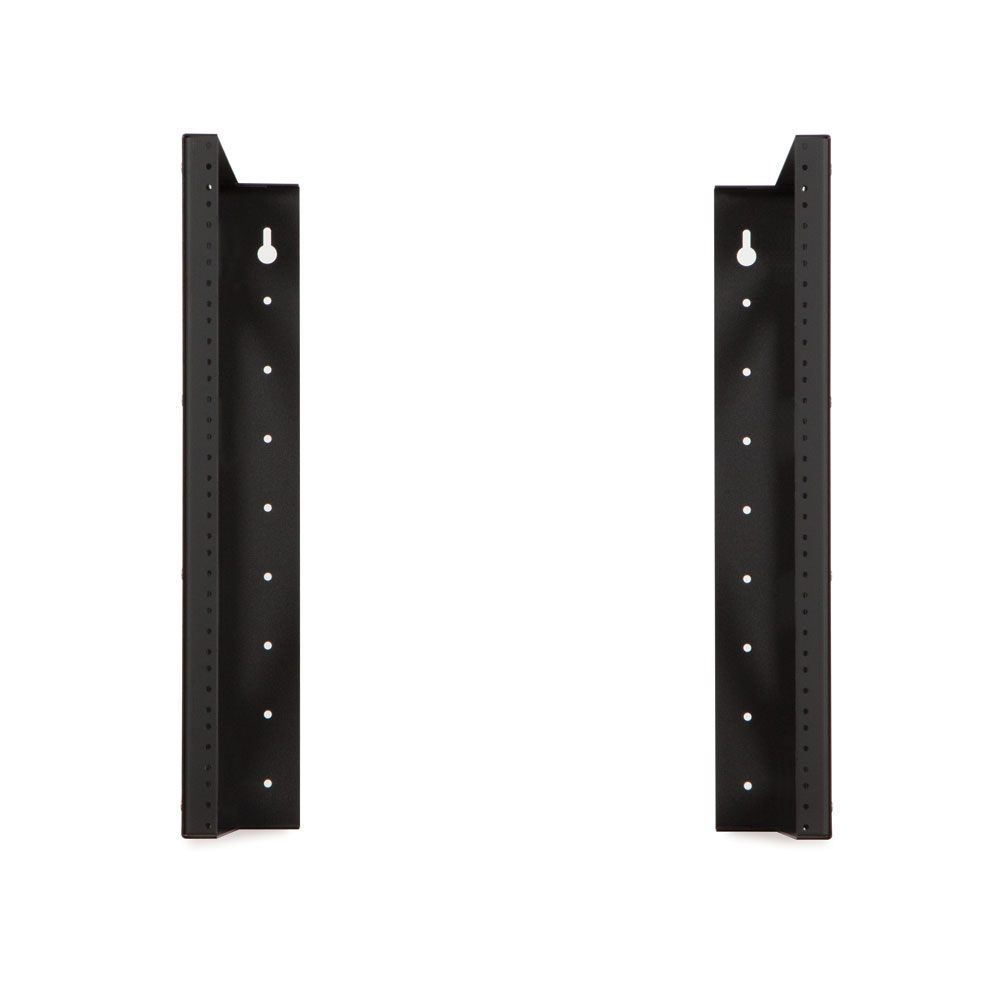

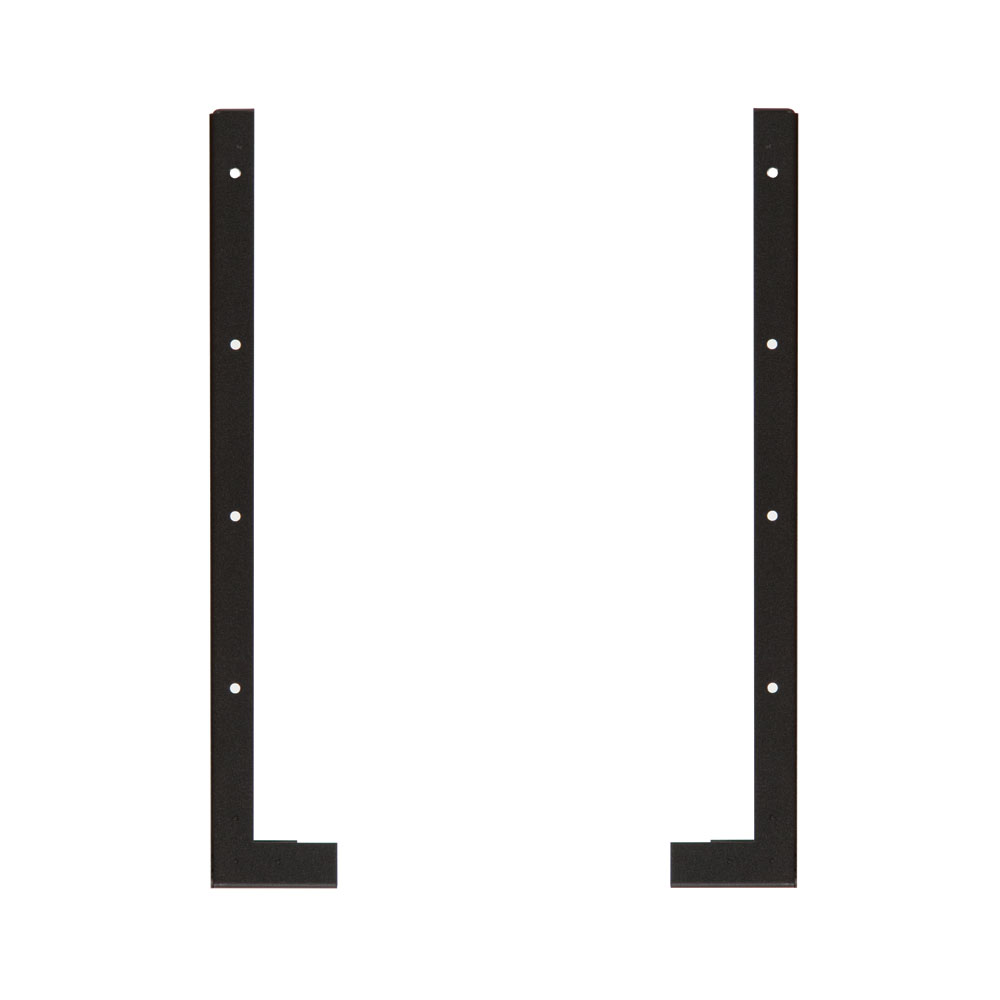

Standard Tapped Rails

The 10-32 pre-tapped mounting rails can be utilized to install network and other rackmount equipment with the use of 10-32 rack screws (not included).

Easy to Install

With the use of the included wall mount template, installation takes less than five minutes!

Specifications
Part Number 1915-3-001-12
Width Adjustable
Depth 18.13"
Height 21.25"
Weight 15.10 lbs.
Shipping Dimensions 24" L x 21" W x 6" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447000337
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
12U Wall Mount Rack Left Side 1
12U Wall Mount Rack Right Side 1
