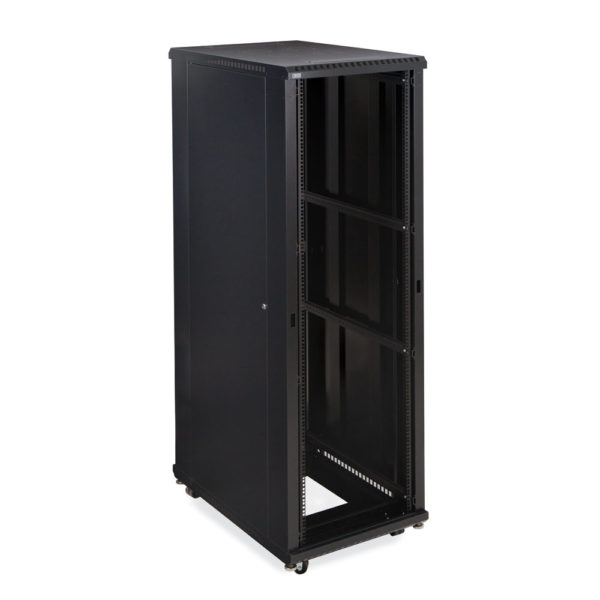

37U LINIER® Server Cabinet - No Doors - 36" Depth

Item #:3180-3-001-37

37U LINIER® Server Cabinet - No Doors - 36" Depth

Item #:3180-3-001-37
Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment.
Made in the USA
Certifications
19" EIA compliant
Add to List
Description
Unlike the 3100 series, the 3180 LINIER® Server Cabinets are built without doors making it easy to monitor and access the front and back of your network equipment. Side panels are included with this series to help enclose and protect your system. Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. Both front and rear access to your equipment is made available with the 3180 LINIER® Server Cabinets.
  • No doors

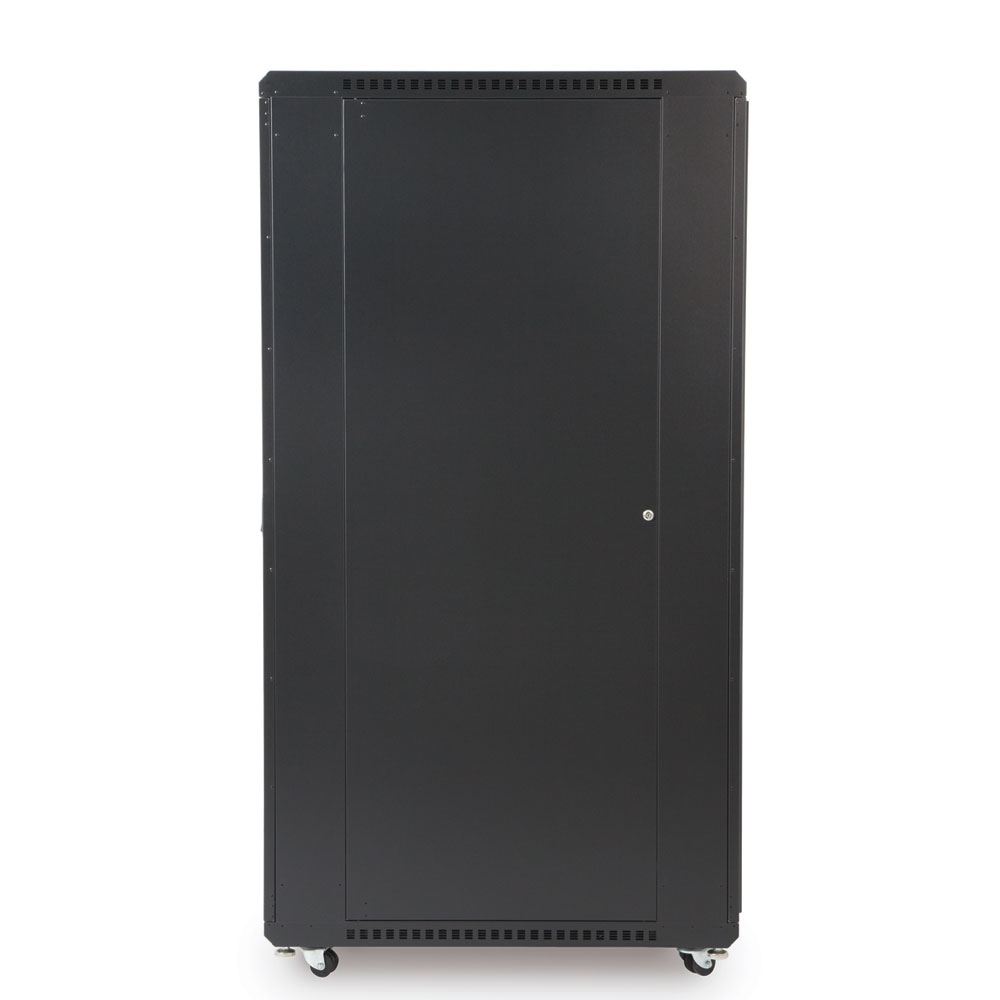

  • Removable locking side panels
  • 36" depth (Also available with a 24" depth)
  • Other sizes available: 22U27U42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Top includes removable laser knockouts
  • Includes two sets of adjustable cage nut style mounting rails
  • Includes preinstalled casters and levelers
  • 5-Year Limited Warranty
Features

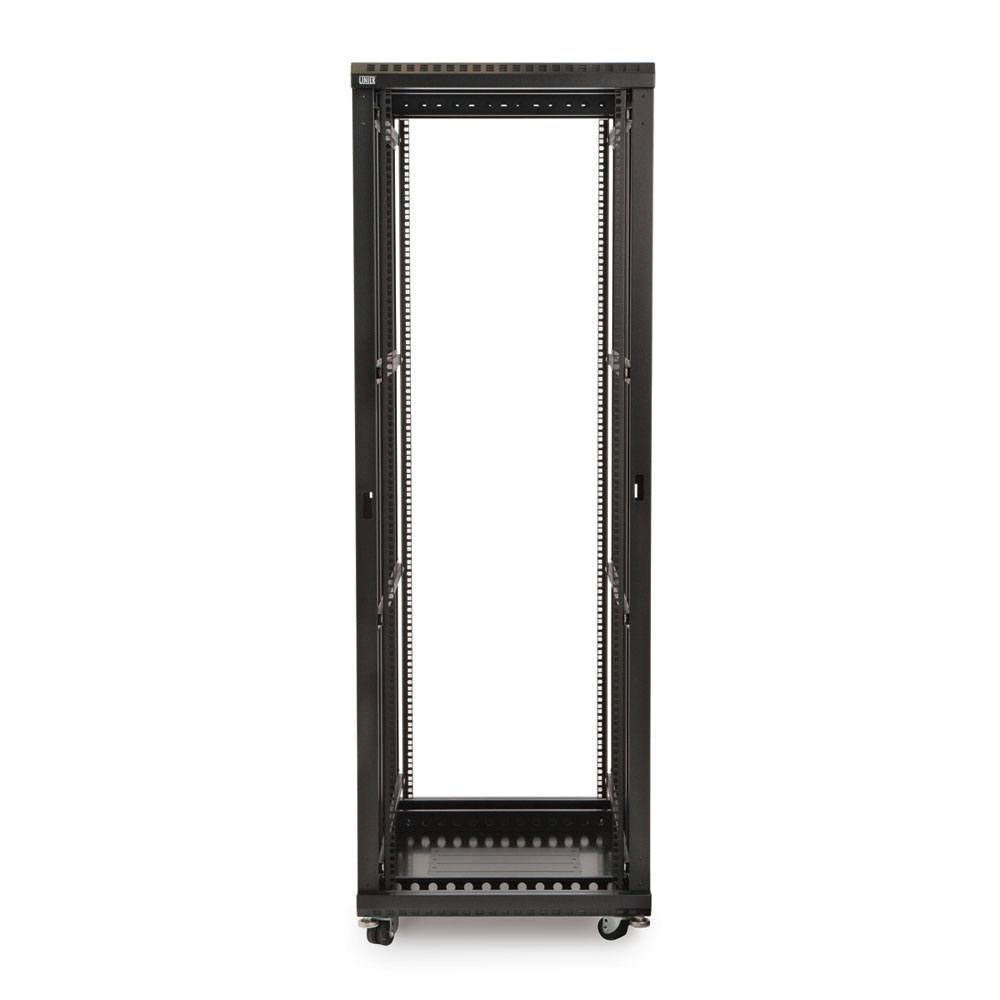

Open Frame Design

The open frame design allows for maximum air flow for your network equipment.

Easy Installation

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

Adjustable Rails

Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.

Specifications
Part Number 3180-3-001-37
Width 24"
Depth 37.72" (Useable 36.00")
Height 71.7"
Weight 167.00 lbs.
Shipping Dimensions 32" L x 45" W x 79" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447005066
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight
TAA Compliant Yes
What's in the Box
Item Quantity
37U LINIER Server Cabinet - No Doors - 36" Depth 1
Pre-installed Casters and Levelers 4
Set of Adjustable Cage Nut Style Mounting Rails 2
Resources
Title Type Date Version File Size
Title
37U LINIER® Server Cabinet - No Doors - 36" Depth (3180-3-001-37) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
250.81 KB
Download
Title
37U LINIER® Server Cabinet - No Doors - 36" Depth (3180-3-001-37) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
273.70 KB
Download
Title
3180-3-001-37.STEP
Type
3D CAD
Date
12/19
Version
1
File Size
3.15 MB
Download
Title
Full Size Linier® Server Cabinet Cut Sheet 36"
Type
Cut Sheet
Date
02/24
Version
1
File Size
293.83 KB
Download
