37U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth

Item #:3170-3-024-37

37U LINIER® Server Cabinet - No Doors/No Side Panels - 24" Depth

Item #:3170-3-024-37
This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment.
Made in the USA
Certifications
19" EIA compliant
Add to List
Description
Setting itself apart from the 3100 series, the LINIER® 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3170 LINIER® series is your answer.
  • No doors or side panels
  • 24" depth (Also available with a 36" depth)
  • Other sizes available: 22U27U42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Top includes removable laser knockouts
  • Includes two sets of adjustable cage nut style mounting rails
  • Includes preinstalled casters and levelers
  • 5-Year Limited Warranty
Features
Open Frame Design

The open frame design allows for maximum air flow for your network equipment.

Easy Installation

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

Adjustable Rails

Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.

Cable and Fan Knockouts

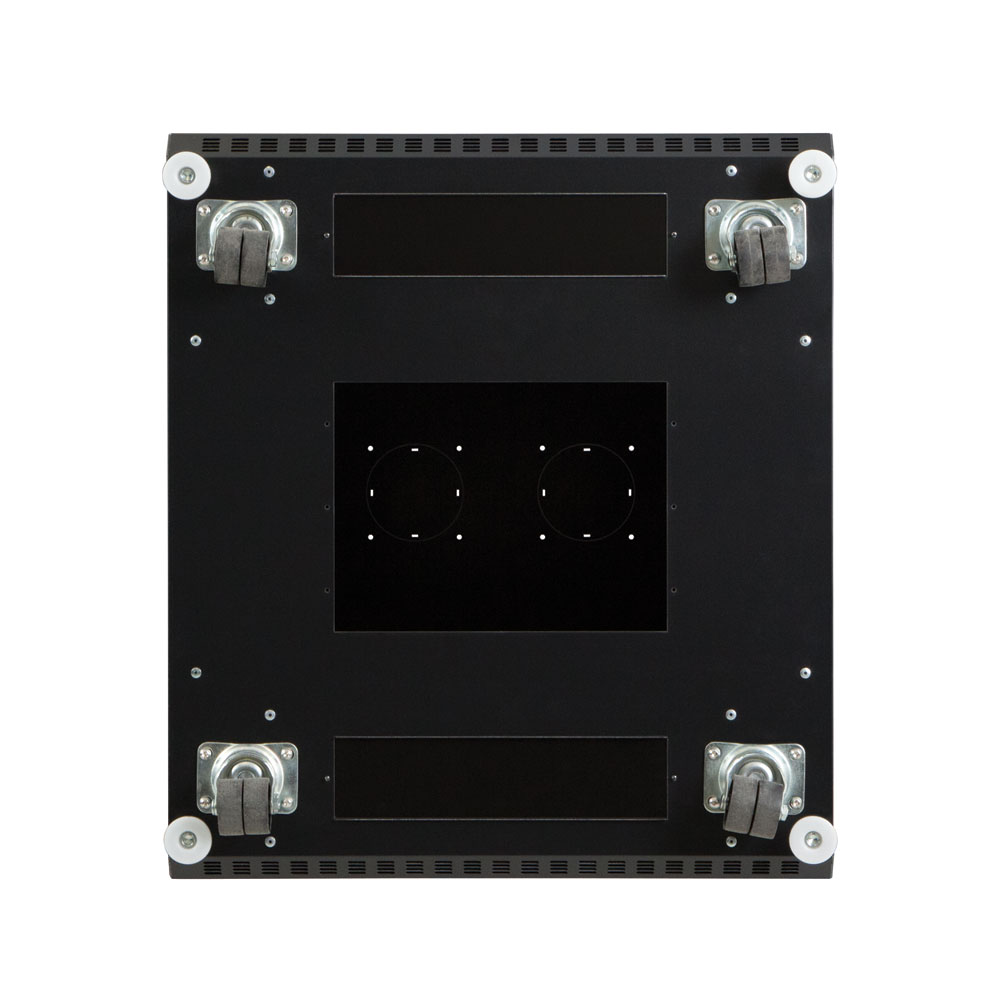

There are numerous cable entry points on both the top and bottom of this open frame rack. There are also four large knockouts on the top of the frame to install fans, or for added cable pass through.

Specifications
Part Number 3170-3-024-37
Width 24"
Depth 27.00" (Useable 24.00")
Height 71.7"
Weight 104.00 lbs.
Shipping Dimensions 32" L x 45" W x 79" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447005103
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight
What's in the Box
Item Quantity
37U LINIER Server Cabinet - No Doors/No Side Panels - 24" Depth 1
Pre-installed Casters and Levelers 4
Set of Adjustable Cage Nut Style Mounting Rails 2
