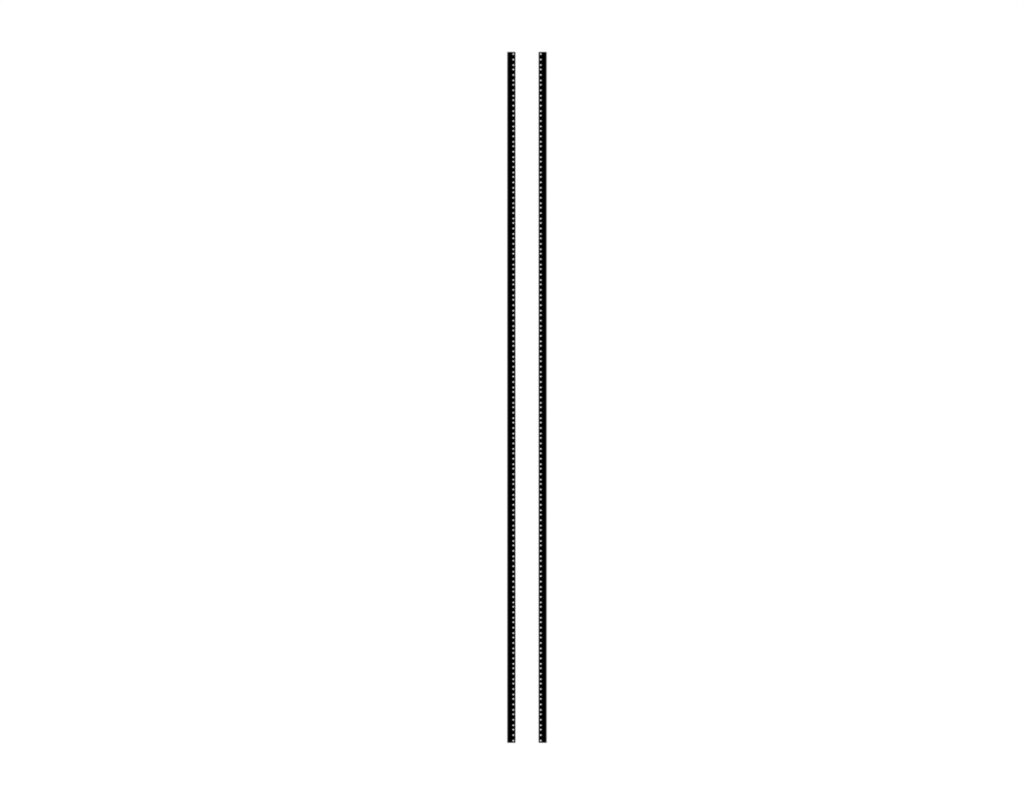

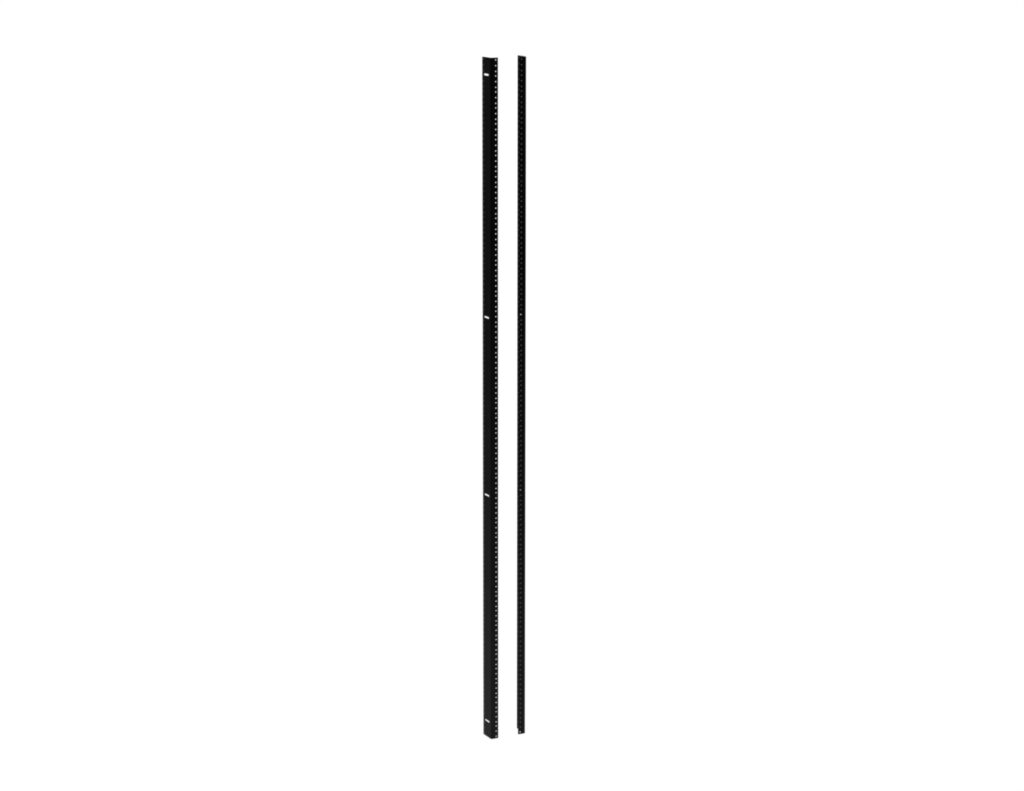

45U LINIER® Tapped Rails
45U LINIER® Tapped Rails
Made in the USA
Limited Lifetime Warranty
Description
The LINIER® 45U Server Cabinet Vertical Rail Kit can be installed in any of the LINIER® Full Size Cabinets to provide a 10-32 tapped rail solution. This tapped rail kit can replace the cage nut style rails that are included with the LINIER® Server Cabinets for installers who prefer a tapped rail mounting solution.
- Includes two 45U cage nut style rails
- Can be used with the LINIER® Full Size Server Cabinets
- Installation hardware included
- Made in the USA
- Limited Lifetime Warranty
Features
10-32 Tapped Rail Kit
Many installers enjoy the convenience of pre-tapped mounting rails. A tapped mounting rail features holes that contain internal threads. These threaded holes accept rack screws without the need for additional hardware such as cage nuts. This mounting style requires less hardware and less installation time.
Specifications
| Part Number | 3160-3-002-45 |
| Width | .912 |
| Depth | 2.0 |
| Height | 78.78 |
| Weight | 13.0 |
| Shipping Dimensions | 80 X 4 X 4 |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447006377 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | Ground |
What's in the Box
| Item | Quantity |
|---|---|
| 45U cage nut style rails | 2 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 45U LINIER® Tapped Rails (3160-3-002-45) STEP |
Type 3D CAD |
Date 02/24 |
Version 1 |
File Size 219.67 KB |
Download |
Title 45U LINIER® Tapped Rails Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 525.03 KB |
Download |
Title 3160-3-002-45 DATA SHEET |
Type Data Sheet |
Date 02/24 |
Version 1 |
File Size 73.21 KB |
Download |
