4U V-Rack with Tapped Rails
4U V-Rack with Tapped Rails
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description

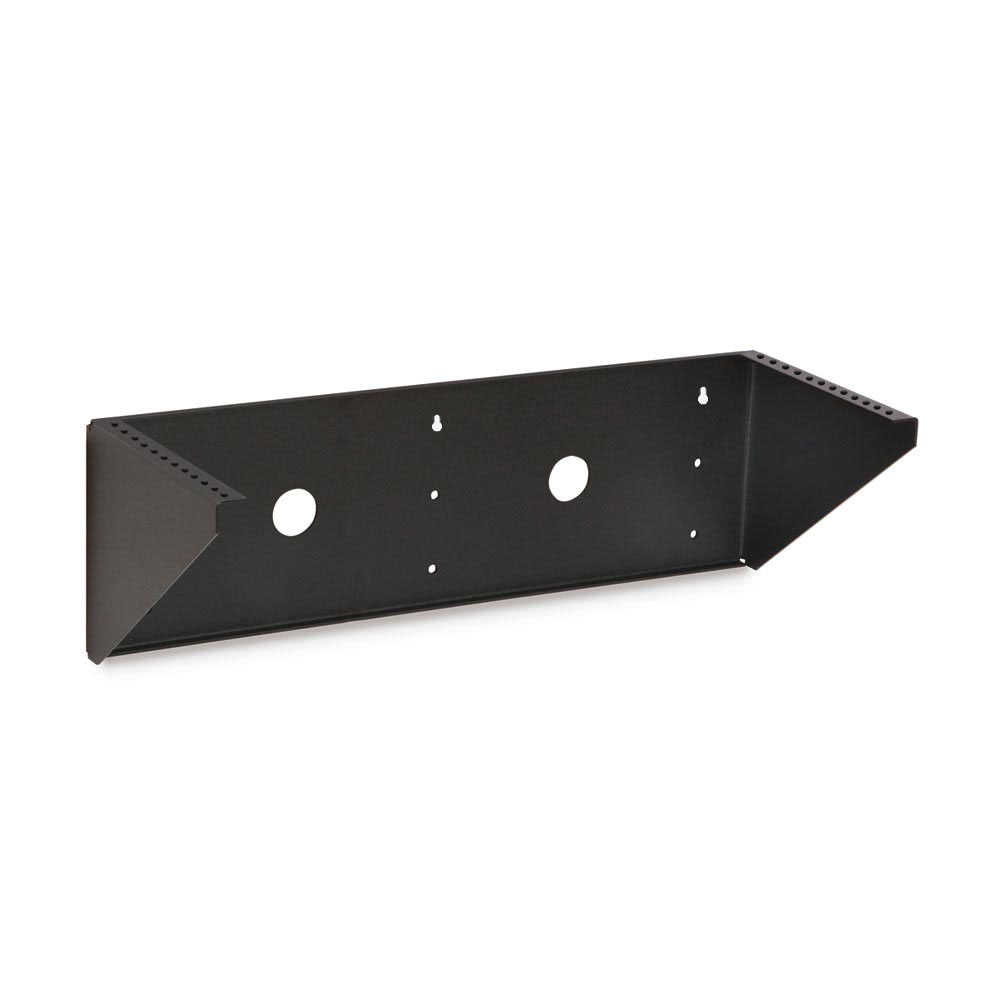

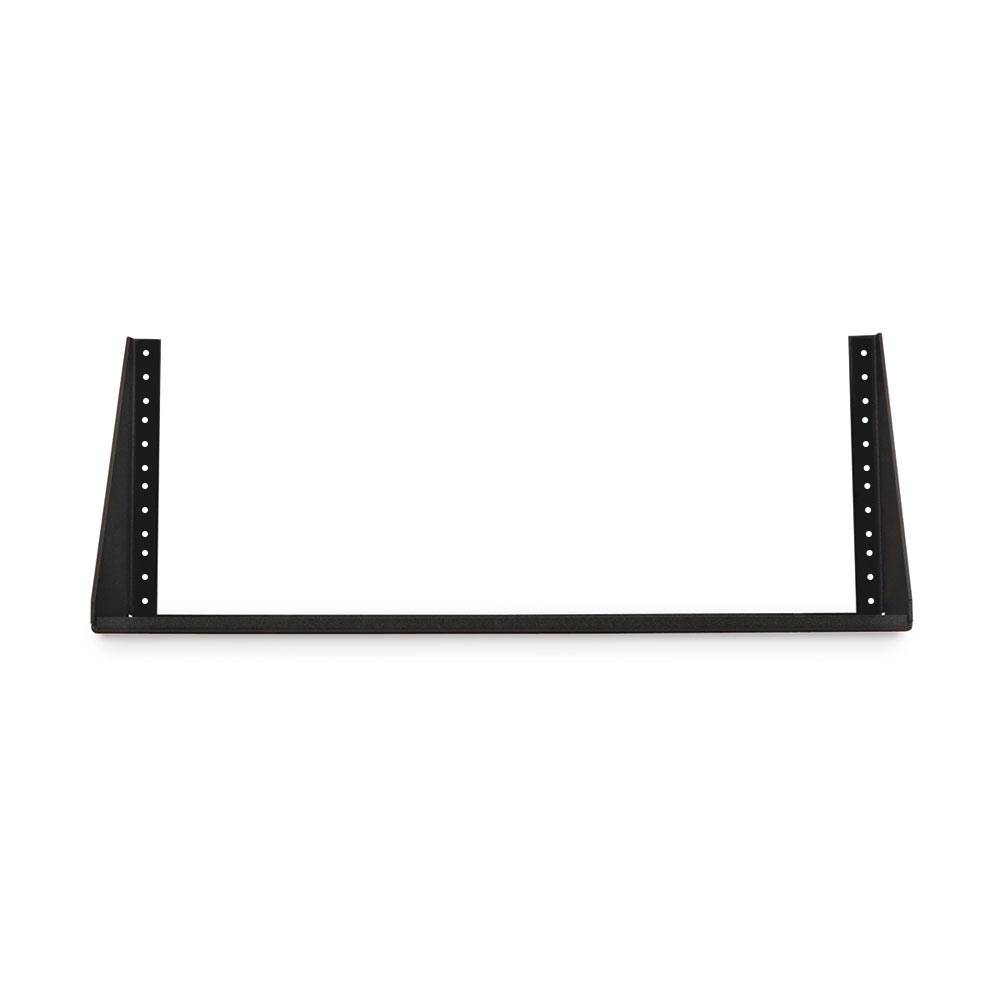

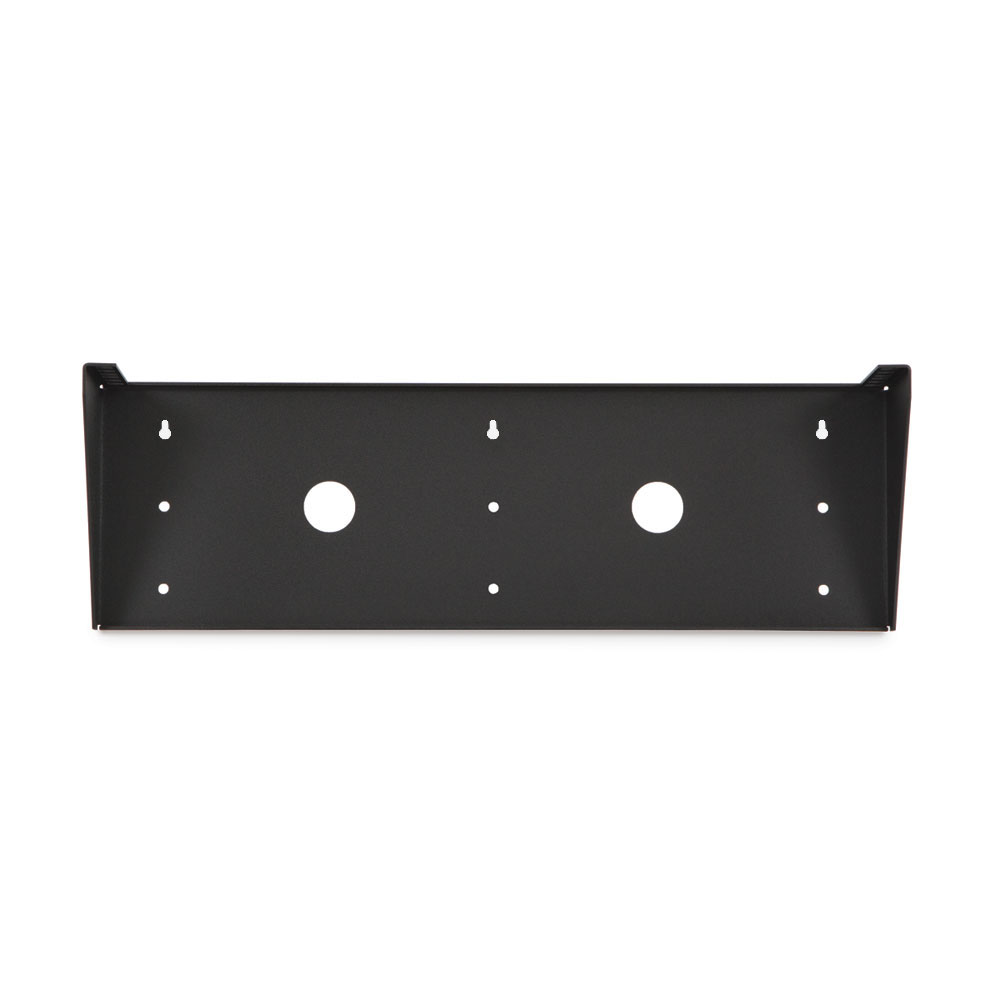

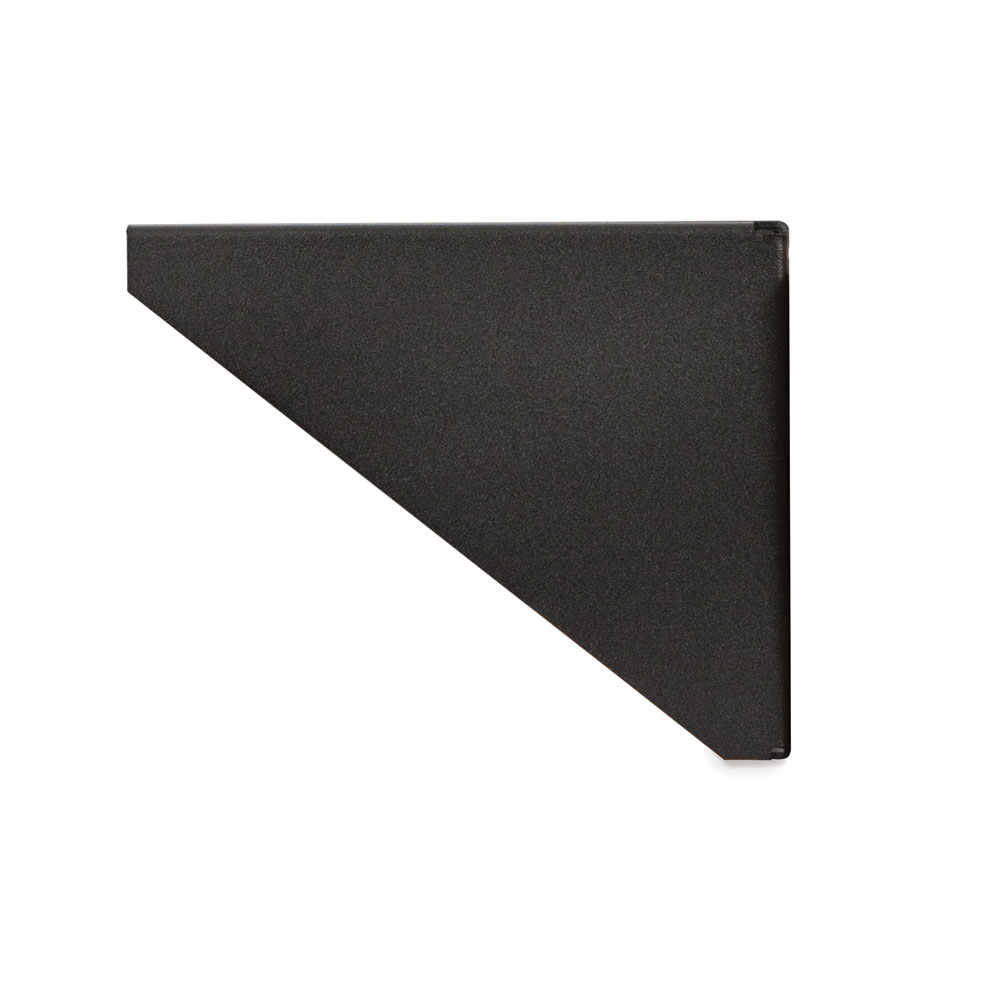

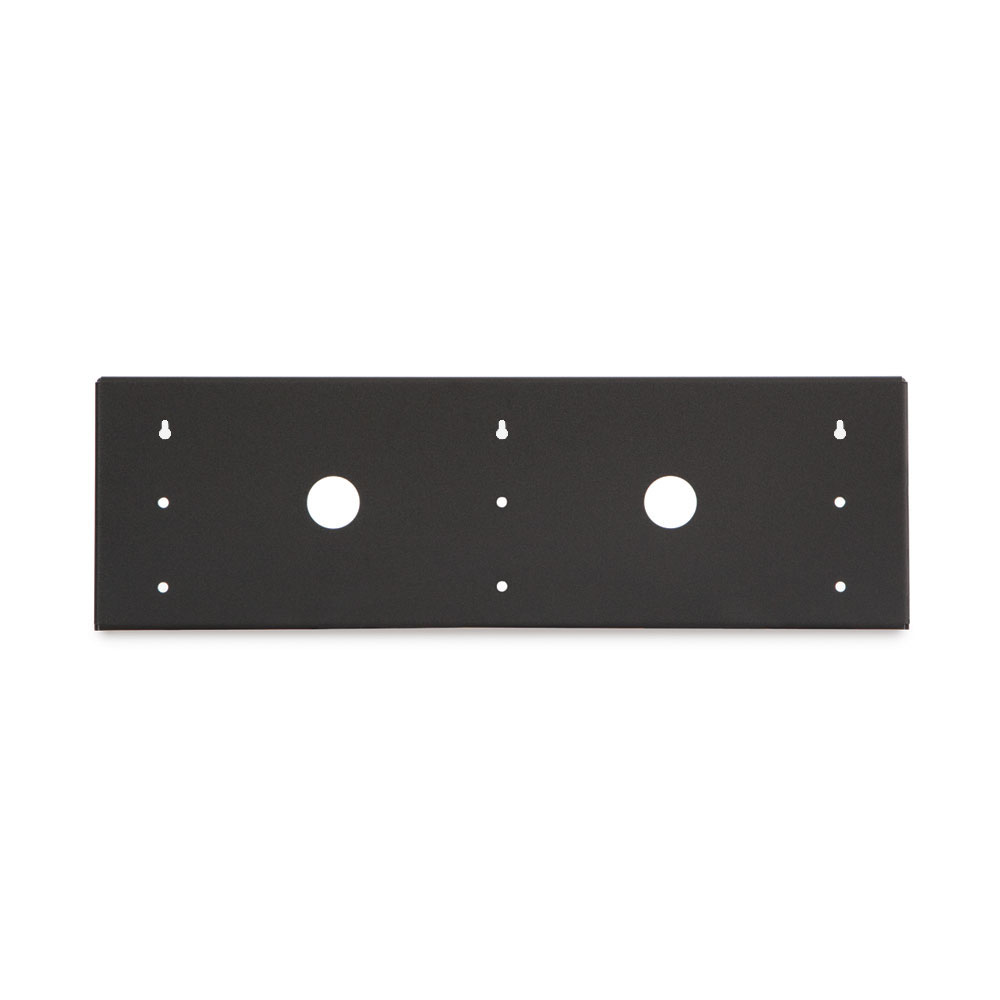

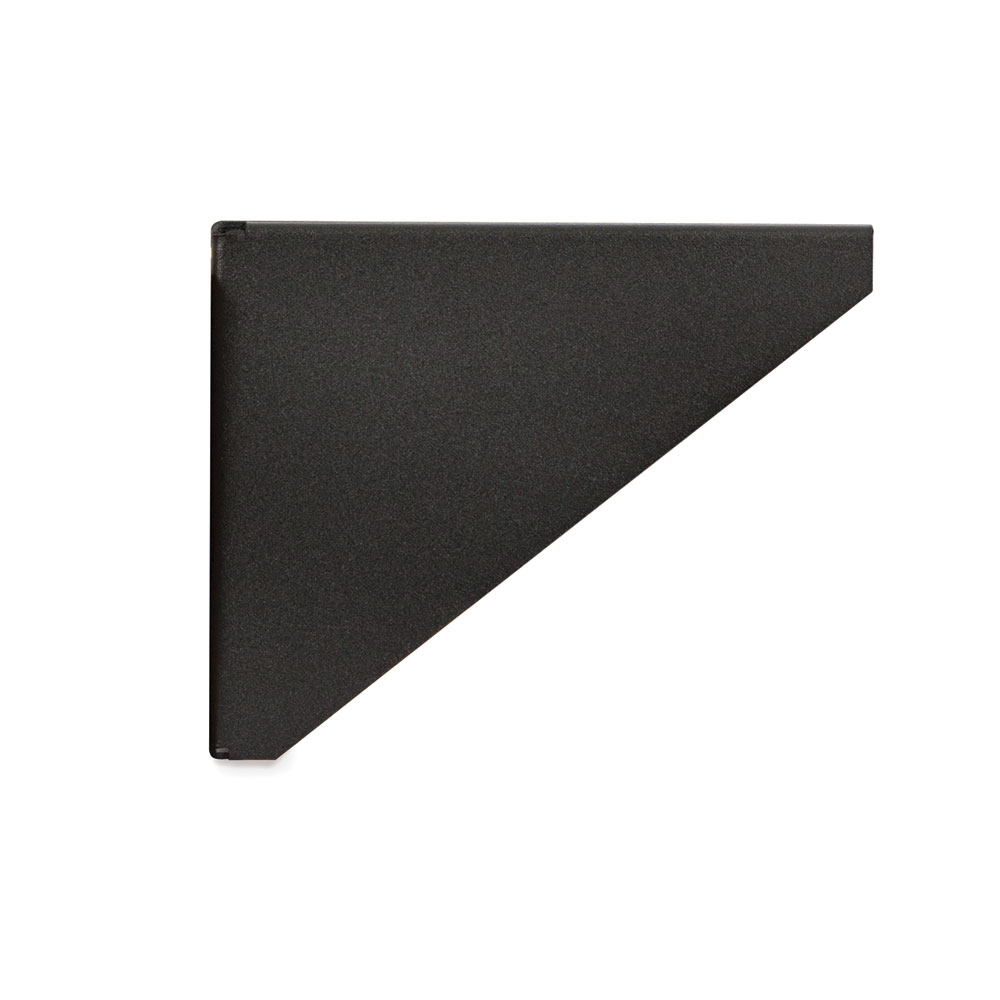

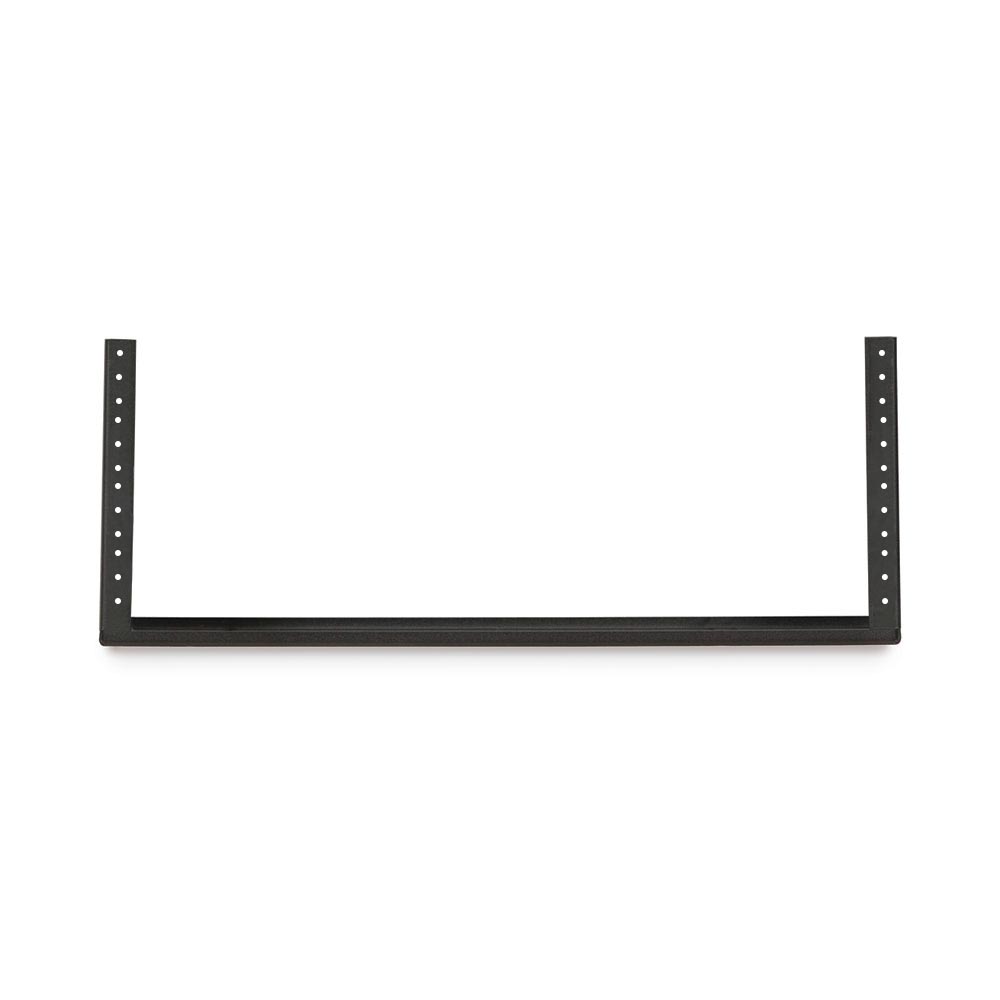

Kendall Howard V-Racks is our space-saving solution for mounting servers or other rack-mountable devices in a versatile manner. Our V-Racks, equipped with 10-32 tapped rails, are perfect for smaller rackmount equipment. Whether you want to mount them vertically or horizontally, these racks can accommodate devices of any depth. Designed to be wall-mounted or placed under a desk, the Kendall Howard V-Rack offers the flexibility to position your products wherever you need them while optimizing space utilization.
- Low profile design
- Tapped rails
- Includes 24 10-32 Rack Screws
- 4U V-Rack - Tapped Rails
- No depth restrictions
- 150 lb. weight capacity
- 19" EIA compliant
- Made in the USA
- BABA Act Compliant
- Limited Lifetime Warranty
Features
Low Profile Design
The V-Rack sticks out less than 4″ from the wall! Mounting equipment like this is perfect for applications where space is at a premium.
No Depth Restrictions
The open design allows you to install servers, switches, and other network equipment regardless of depth.
Multiple Uses
Designed to mount to the wall, under a desk or any surface to provide a 19″ EIA compliant rail system where needed. Users needing a 4-point mounting system can effectively do so by using two V-Rack systems.
Tapped Rails
Tapped rails are great when mounting small rackmount equipment. This rail style is especially useful for one-time installations.
Specifications
| Part Number | 1916-2-101-04 |
| Width | 19.25" |
| Depth | 7.39" |
| Height | 6" |
| Weight | 5.00 lbs. |
| Shipping Dimensions | 21" L x 8" W x 9.5" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447005547 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
| TAA Compliant | Yes |
What's in the Box
| Item | Quantity |
|---|---|
| 4U V-Rack | 1 |
| 10-32 Rack Screws | 24 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 4U V-Rack - Tapped Rails (1916-2-101-04) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size |
Download |
Title 4U V-Rack - Tapped Rails (1916-2-101-04) Instructions |
Type Instructions |
Date 10/23 |
Version 1 |
File Size 424.36 KB |
Download |
Title 1916-2-101-04.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 75.26 KB |
Download |
Title Vertical Racks Tapped and Cage Nut Style Cut Sheet |
Type Cut Sheet |
Date 12/23 |
Version 1 |
File Size 382.44 KB |
Download |
