2U V-Rack - Tapped Rails

Item #:1916-2-101-02

2U V-Rack - Tapped Rails

Item #:1916-2-101-02
The V-Racks with 10-32 tapped rails are great for smaller rackmount equipment, designed to mount on a wall or under a desk.
Certifications
19" EIA compliant
Add to List
Description

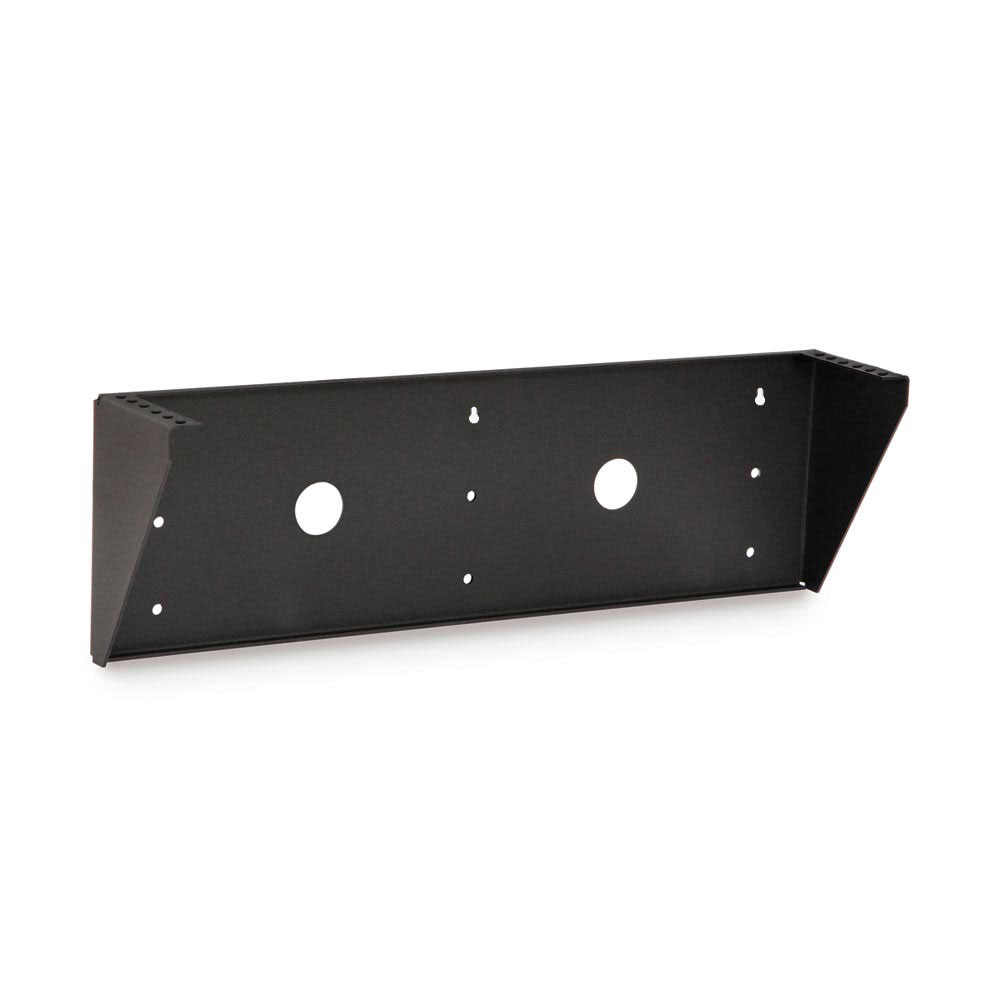

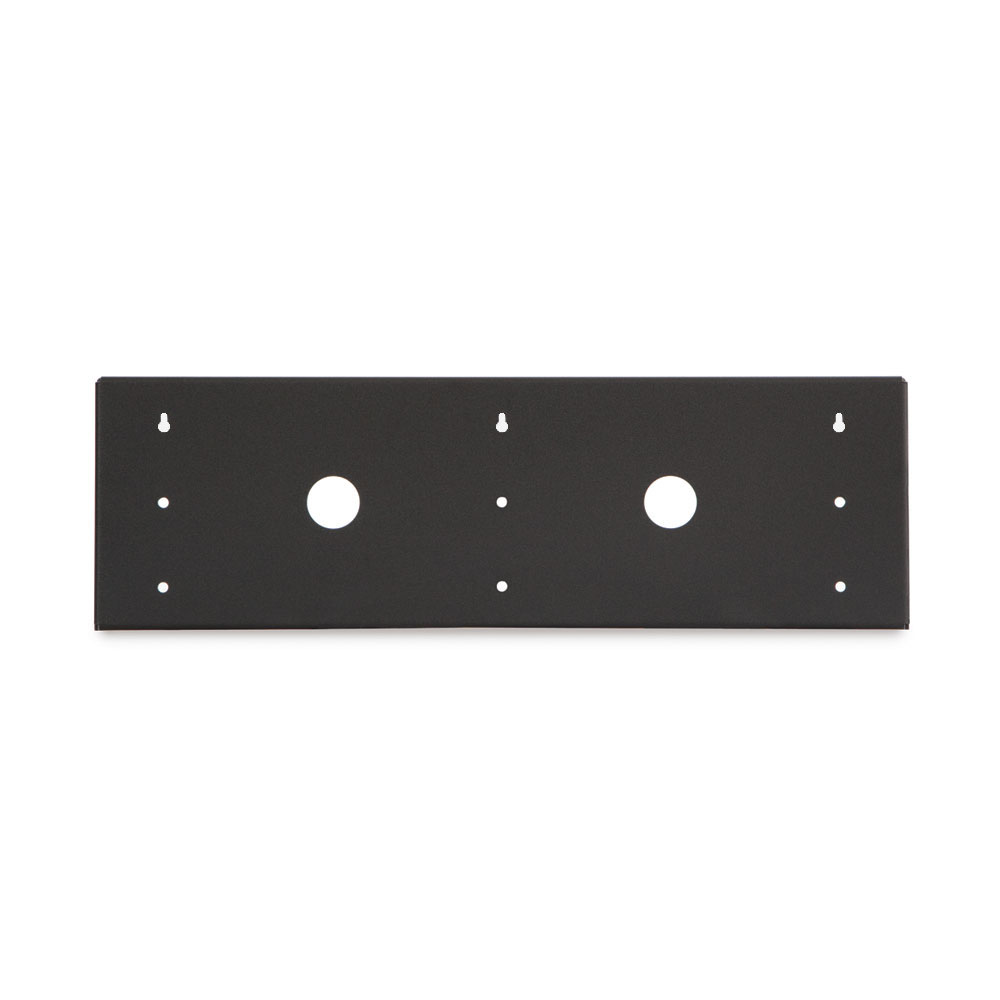

Kendall Howard V-Racks allow you to vertically or horizontally mount servers or other rackmountable devices regardless of depth. The V-Racks with 10-32 tapped rails are great for smaller rackmount equipment. Designed to mount on a wall or under a desk, the Kendall Howard V-Rack provides users more versatility on where they can place their products while saving them space.
  • Low profile design
  • Tapped rails
  • No depth restrictions
Features
Low Profile Design

The V-Rack sticks out less than 4″ from the wall! Mounting equipment like this is perfect for applications where space is at a premium.

No Depth Restrictions

The open design allows you to install servers, switches, and other network equipment regardless of depth.

Multiple Uses

Designed to mount to the wall, under a desk or any surface to provide a 19″ EIA compliant rail system where needed. Users needing a 4-point mounting system can effectively do so by using two V-Rack systems.

Tapped Rails

Tapped rails are great when mounting small rackmount equipment. This rail style is especially useful for one-time installations.

Specifications
Part Number 1916-2-101-02
Width 19.25"
Depth 3.89"
Height 6"
Weight 4.00 lbs.
Shipping Dimensions 21" L x 8" W x 6.25" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447005523
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
2U V-Rack 1
10-32 Rack Screws 12
Resources
Title Type Date Version File Size
Title
2U V-Rack - Tapped Rails (1916-2-101-02) Cut Sheet
Type
Cut Sheet
Date
05/19
Version
1.0
File Size
838 KB
Download
Title
2U V-Rack - Tapped Rails (1916-2-101-02) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
Download
Title
2U V-Rack - Tapped Rails (1916-2-101-02) Instructions
Type
Instructions
Date
05/19
Version
1.0
File Size
522 KB
Download
