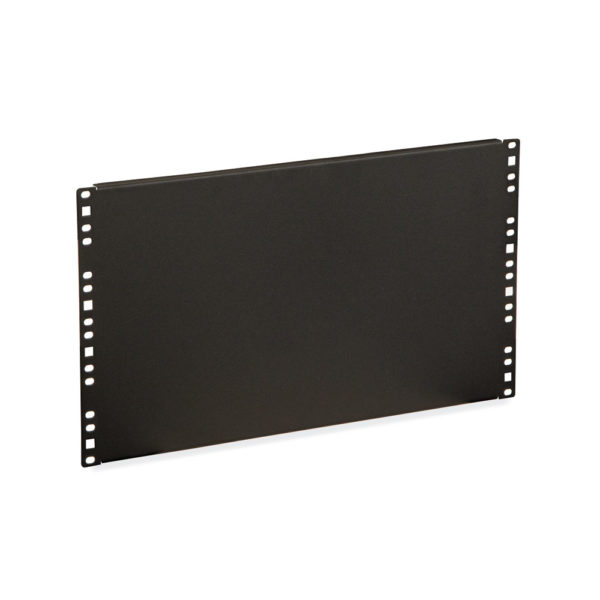

6U Flanged Spacer Blank

Item #:1901-1-006-06

6U Flanged Spacer Blank

Item #:1901-1-006-06
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
The Kendall Howard 6U Flanged Spacer Blanks are a cut above the rest. Spacer Blanks are often used as a way to fill in any gaps and conceal empty rack spaces in a rack or enclosure. The use of filler panels not only makes racks look neat, clean, and organized, but when installed properly they provide added support to the mounting rails. These rack panels are also critical for controlling proper airflow especially in cold aisle/hot aisle applications.
  • Four mounting holes per U space
  • Two 1/2" flanges
  • Tool-less mounting clips included
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features
Universal/Tool-Less Mounting

The 6U panel features oblong mounting holes that are compatible with any standard rack hardware. However, the included tool-less clips make installation a breeze with any universal cage nut style rail.

Rounded Corners

The rounded corners and durable powder coat finish provide a smooth edge for safe handling and installation.

Proper Airflow

Using spacer blanks to fill the gaps and openings throughout your rack installation is especially important if thermal management is a concern. Not only will the filler panels prevent unwanted debris, such as dust, from getting in, but it will also prevent hot air from being recirculated into your equipment.

Professional Look

Installing rack panels in the unused rack mount spaces (RMS) gives your overall installation a clean and organized appearance.

Added Support

The two 1/2″ flanges on the top and bottom of the spacer blank increase the strength of the panel. This in turn helps to better support the rack rails and can even help shore up a server rack or cabinet.

Specifications
Part Number 1901-1-006-06
Width 19"
Depth 0.5"
Height 10.47"
Weight 4.80 lbs.
Shipping Dimensions 20" L x 12" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447000146
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
6U Flanged Spacer Blank 1
Tool Less Fasteners 8
Resources
Title Type Date Version File Size
Title
Flanged Spacer Blank Cut Sheet
Type
Cut Sheet
Date
03/23
Version
1
File Size
521.81 KB
Download
Title
6U Flanged Spacer Blank (1901-1-006-06) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
68.30 KB
Download
Title
6U Flanged Spacer Blank (1901-1-006-06) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
249.73 KB
Download
Title
1901-1-006-06.STEP
Type
3D CAD
Date
12/19
Version
1
File Size
60.14 KB
Download
