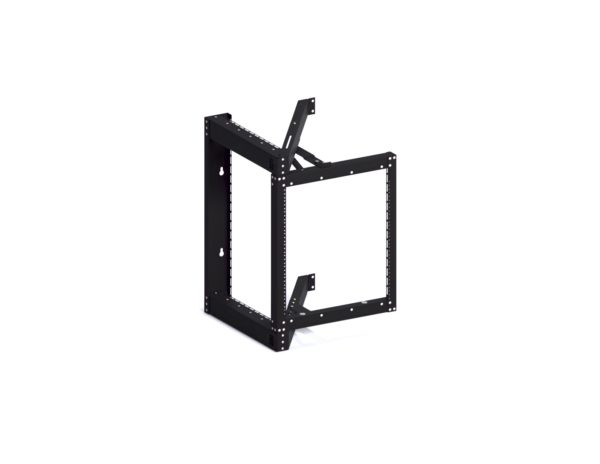

12U Phantom Class® Open Frame Swing-Out Rack

Item #:1915-3-800-12

12U Phantom Class® Open Frame Swing-Out Rack

Item #:1915-3-800-12
The unrivaled quality allows you to install rackmount equipment up off the floor, and it can easily support up to 150 lbs.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
The 12U Phantom Class® Open Frame Swing-Out Rack is truly in a class of its own. The unrivaled quality allows you to install rackmount equipment up off the floor, and it can easily support up to 150 lbs, with its 20" usable depth. The 90 degree swing-out provides installers the access they need to install and manage patch panels, routers, hubs, switches, cabling, and other networking devices.
Features
90 Degree Swing-Out

Pivoting rackmount frame swings out 90 degrees to easily access the rear of installed network equipment. Integrated positive stop prevents the gate from being opened more than 90 degrees to avoid causing damage or stress to cabling and connection points. A simple latching mechanism securely holds the swing gate in the closed position when finished.

Easy to Assemble

Knockdown design reduces shipping charges and assembles in a snap. With just a few steps the rack is easy to assemble, and with the 16″ on center mounting holes you can mount directly to your wall studs.

Numerous Cable Lacing Points

Both the front and rear of the wall rack feature oblong cut outs for securing cable bundles. Simply use your preferred cable ties or hook and loop straps.

Open Back Design

Backless design allows the rack to be installed over existing equipment such as network or electrical conduit, wall mounted equipment, and more. Perfect for upgrading a network that already is in use because you don’t have to disconnect cables and spend time re-terminating. Just feed the device through the top, back or sides and mount into place.

Specifications
Part Number 1915-3-800-12
Width 21.09"
Depth 22.12"
Height 31.24"
Weight 38.50 lbs.
Shipping Dimensions 25" L x 34" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447004182
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
Main Frame 1
Front Angled Brace 2
Rear Angled Brace 2
Swing-Out Brace 2
Upper Stop Bracket w/ Latch 1
Lower Stop Bracket 1
Assembly Parts Pack 1
