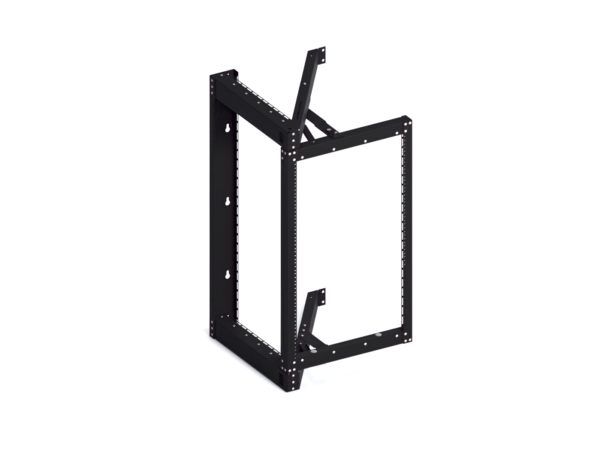

18U Phantom Class® Open Frame Swing-Out Rack
18U Phantom Class® Open Frame Swing-Out Rack
- One set of 10-32 tapped rails
- 150 lb. weight capacity
- 20" usable mounting depth
- 19" EIA compliant
- Ships knocked down
- Made in the USA
- Limited Lifetime Warranty
Pivoting rackmount frame swings out 90 degrees to easily access the rear of installed network equipment. Integrated positive stop prevents the gate from being opened more than 90 degrees to avoid causing damage or stress to cabling and connection points. A simple latching mechanism securely holds the swing gate in the closed position when finished.
Knockdown design reduces shipping charges and assembles in a snap. With just a few steps the rack is easy to assemble, and with the 16″ on center mounting holes you can mount directly to your wall studs.
Both the front and rear of the wall rack feature oblong cut outs for securing cable bundles. Simply use your preferred cable ties or hook and loop straps.
Backless design allows the rack to be installed over existing equipment such as network or electrical conduit, wall mounted equipment, and more. Perfect for upgrading a network that already is in use because you don’t have to disconnect cables and spend time re-terminating. Just feed the device through the top, back or sides and mount into place.
Part Number | 1915-3-800-18 |
Width | 21.09" |
Depth | 22.12" |
Height | 41.74" |
Weight | 42.65 lbs. |
Shipping Dimensions | 25" L x 45" W x 7" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Black Powder Coated Finish |
UPC | 879447004199 |
Warranty | Limited Lifetime Warranty |
Shipping Method | FedEx Ground |
Item | Quantity |
---|---|
Main Frame | 1 |
Front Angled Brace | 2 |
Rear Angled Brace | 2 |
Swing-Out Brace | 2 |
Upper Stop Bracket w/ Latch | 1 |
Lower Stop Bracket | 1 |
Assembly Parts Pack | 1 |
Title | Type | Date | Version | File Size | |
---|---|---|---|---|---|
Title 18U Phantom Class® Open Frame Swing-Out Rack (1915-3-800-18) Data Sheet |
Type Data Sheet |
Date 05/19 |
Version 1.0 |
File Size 129 KB |
Download |
Title 18U Phantom Class® Open Frame Swing-Out Rack (1915-3-800-18) Instructions |
Type Instructions |
Date 05/19 |
Version 1.0 |
File Size 3 MB |
Download |
Title 1915-3-800-18.STEP |
Type 3D CAD |
Date 09/20 |
Version 1 |
File Size 1 MB |
Download |
Title Phantom Class® Open Frame Swing-Out Rack |
Type |
Date 02/21 |
Version 1 |
File Size 408 KB |
Download |
-
