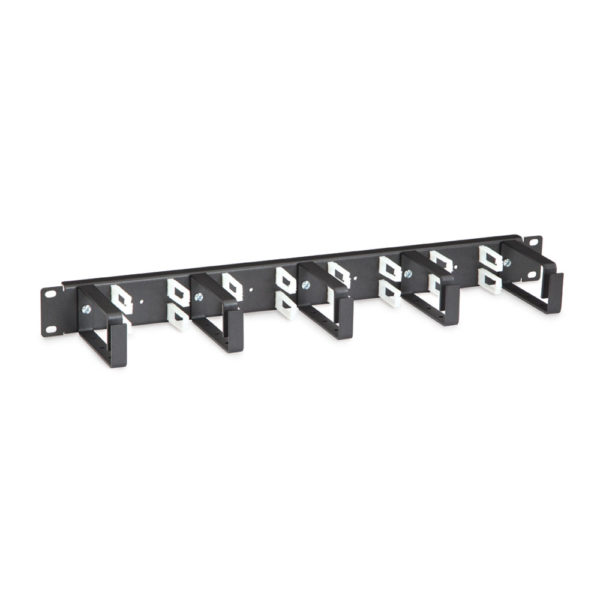

1U D-Ring Cable Management Kit

Item #:1901-1-000-01

1U D-Ring Cable Management Kit

Item #:1901-1-000-01
The 1U D-Ring Cable Management Kit gives installers and network technicians a flexible and functional cable management bracket that will easily manage all types of cables.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
The Kendall Howard 1U D-Ring Cable Management Kit gives installers and network technicians a flexible and functional cable management bracket that will easily manage all types of cables. With more than 40 different configurations, it is easy to manage cables vertically, horizontally, and diagonally. This cable management kit eliminates the need for dozens of other cable management brackets. Finally, there is a cable manager that can do it all.
  • Includes five Steel D-Rings
  • Includes 16 Snap-in Nylon Clips
  • Nylon Clips are UL 94V-2 recognized
  • More than 40 different configurations
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Features

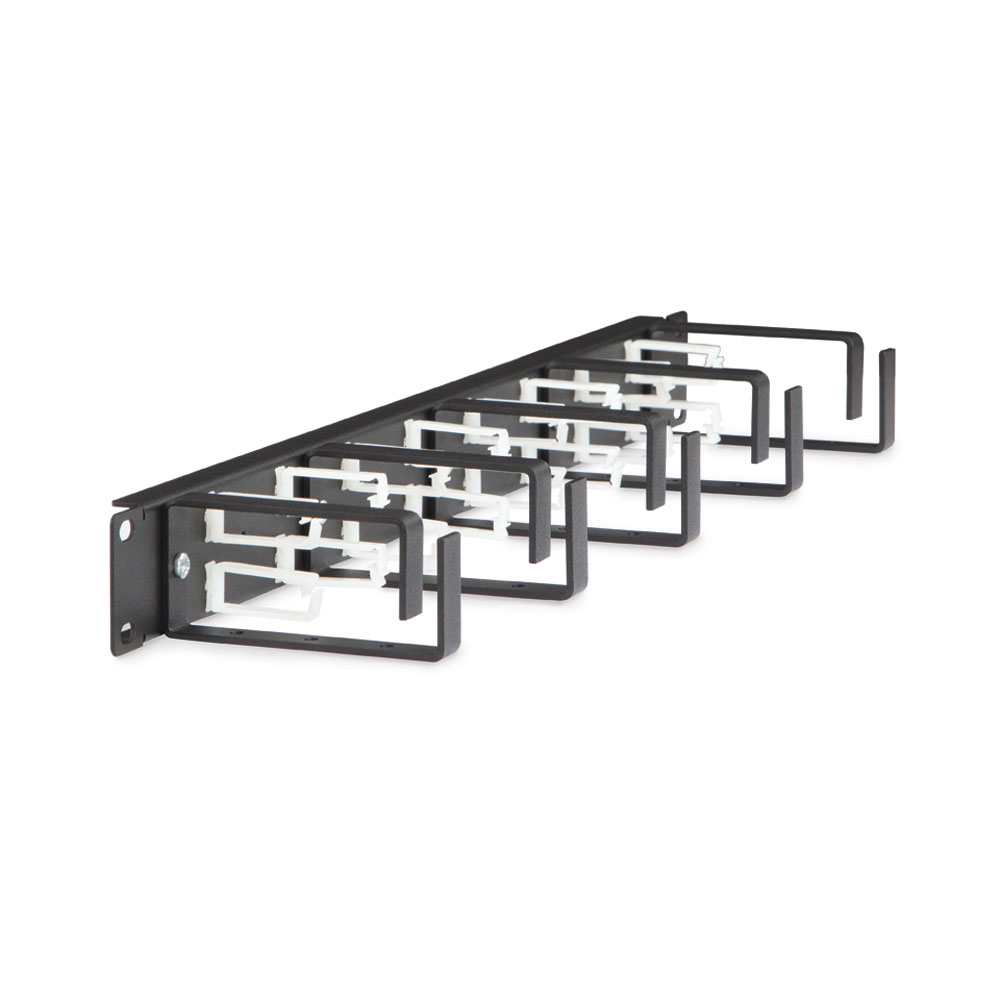

Five Heavy Duty Steel D-Rings

Steel, powder coated D-rings feature numerous through holes so that they can be installed to the rackmount panel vertically or horizontally. Pre-threaded holes on the mounting panel make installation a snap!

16 Flexible Nylon Clips

Latch gate style clips install with only fingertip pressure. The rectangular cable clips can be installed to run cables vertically or horizontally.

Flanged Support Panel

Rack mountable panel is flanged for added strength and durability.

Universal Compatibility

Unique cable manager can be installed in just about any rack configuration. From 2-post racks, 4-post racks, and server enclosures, to wall mount racks, and cabinets.

Specifications
Part Number 1901-1-000-01
Width 19"
Depth 4.3"
Height 1.72"
Weight 2.00 lbs.
Shipping Dimensions 21" L x 5" W x 5" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447001143
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
D-Ring Base Panel 1
Plastic Snap-in Wire Minders 16
Mobile D-Rings 5
Pan Head Screws 5
