37U LINIER® Server Cabinet - Glass/Glass Doors - 24" Depth

Item #:3103-3-024-37

37U LINIER® Server Cabinet - Glass/Glass Doors - 24" Depth

Item #:3103-3-024-37
Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment.
Made in the USA
Certifications
19" EIA compliant
Add to List
Description
The 3103 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and other small network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!
  • Includes two locking tempered glass doors
  • Removable locking side panels
  • 24” depth (Also available with a 36” depth)
  • Other sizes available: 22U, 27U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Top includes removable laser knockouts
  • Includes two sets of adjustable cage nut style mounting rails
  • Includes preinstalled casters and levelers
  • 5-Year Limited Warranty
Features
Easy Installation

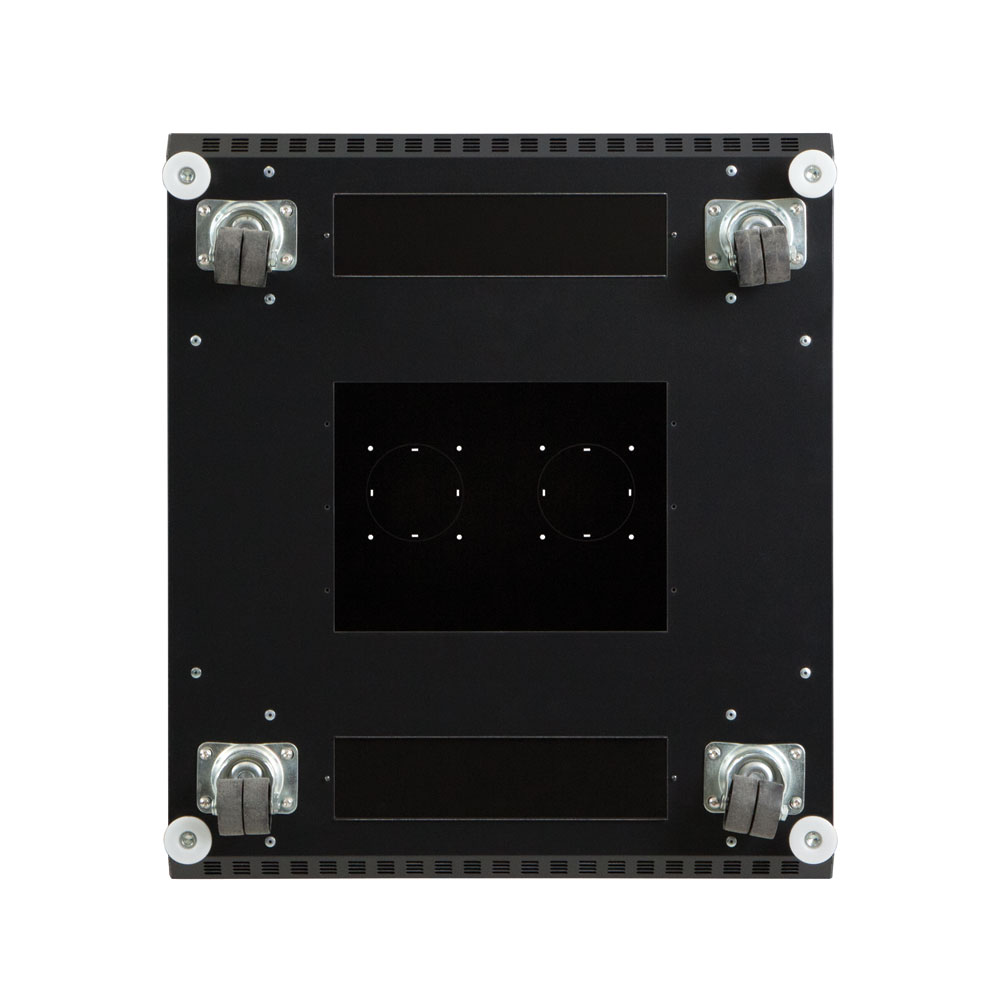

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

Removable Cable Access Panels

The top of the server cabinet includes removable laser knockouts for cable access and added versatility.

Locking, Removable Side Panels

For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.

Adjustable Rails

Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options.

Secured System

Both doors are equipped with locks to help protect and secure your valuable equipment.

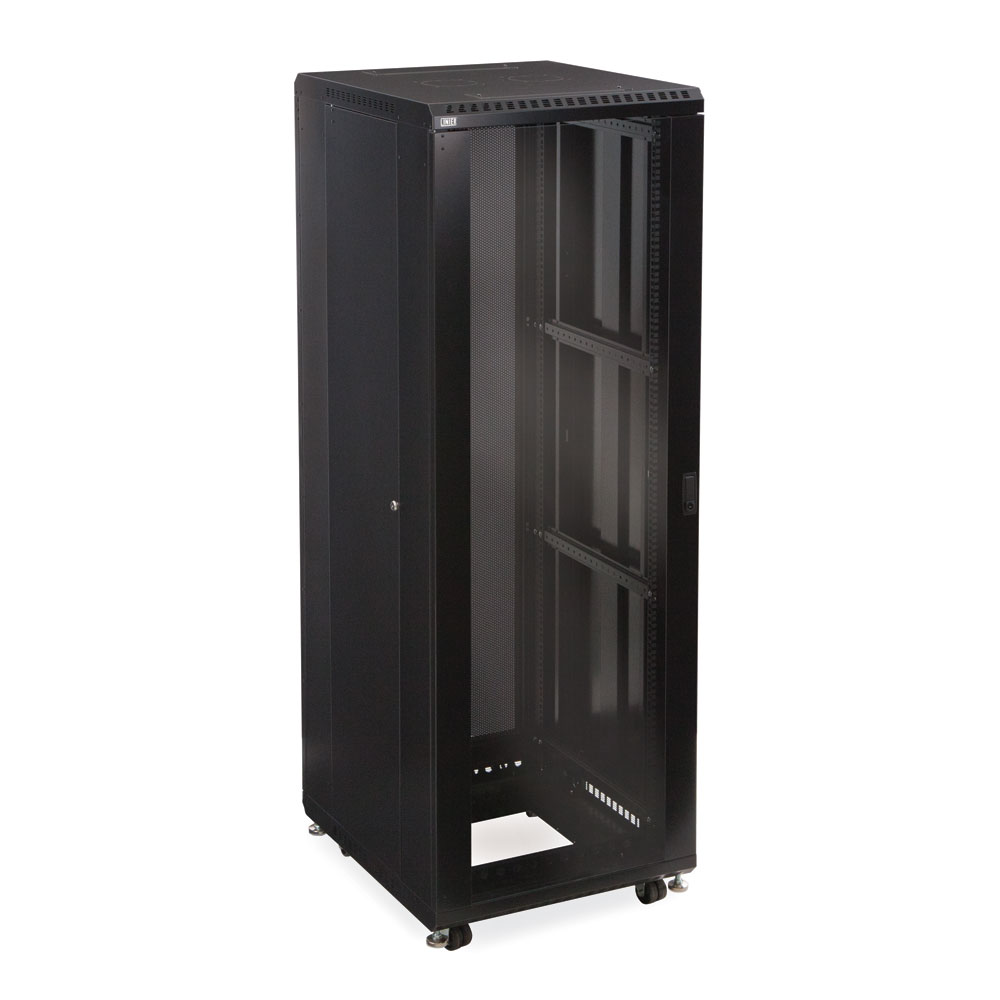

Locking Tempered Glass Doors

The locking tempered glass doors allow installers to easily access and view their network equipment.

Specifications
Part Number 3103-3-024-37
Width 24"
Depth 27.00" (Useable 24.00")
Height 71.75"
Weight 192.00 lbs.
Shipping Dimensions 32" L x 45" W x 79" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447004786
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight
What's in the Box
Item Quantity
37U LINIER Server Cabinet - Glass/Glass Doors - 24" Depth 1
