37U LINIER® Server Cabinet - Vented/Vented Doors - 36" Depth

Item #:3107-3-001-37

37U LINIER® Server Cabinet - Vented/Vented Doors - 36" Depth

Item #:3107-3-001-37
Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment.
Made in the USA
Certifications
19" EIA compliant
Add to List
Description
The 3107 series is one of Kendall Howard's best looking LINIER® enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 36" depth, this LINIER® Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER® brand delivers big!
  • Includes two locking vented doors
  • Removable locking side panels
  • 36" depth (Also available with a 24" depth
  • Other sizes available: 22U, 27U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Top includes removable laser knockouts
  • Includes two sets of adjustable cage nut style mounting rails
  • Includes preinstalled casters and levelers
  • 5-Year Limited Warranty
Features

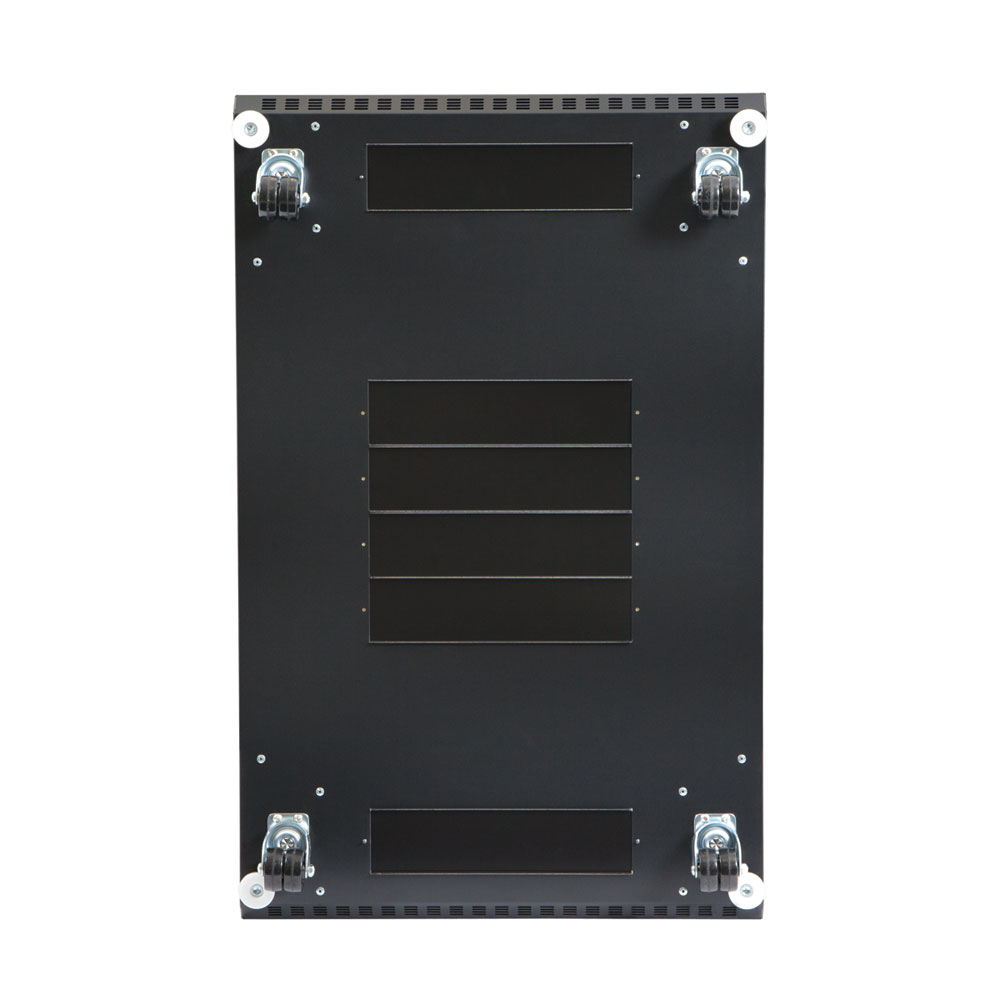

Easy Installation

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

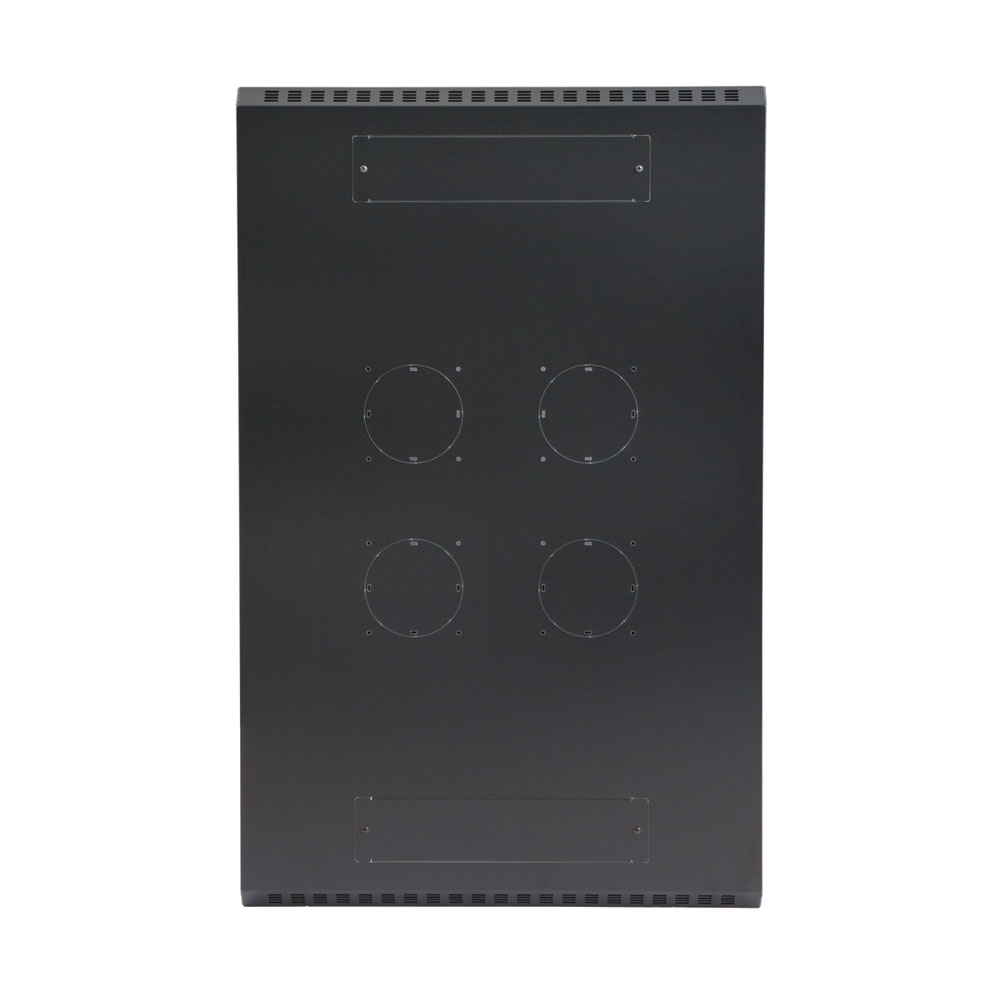

Removable Cable Access Panels

The top of the server cabinet includes removable laser knockouts for cable access and added versatility.

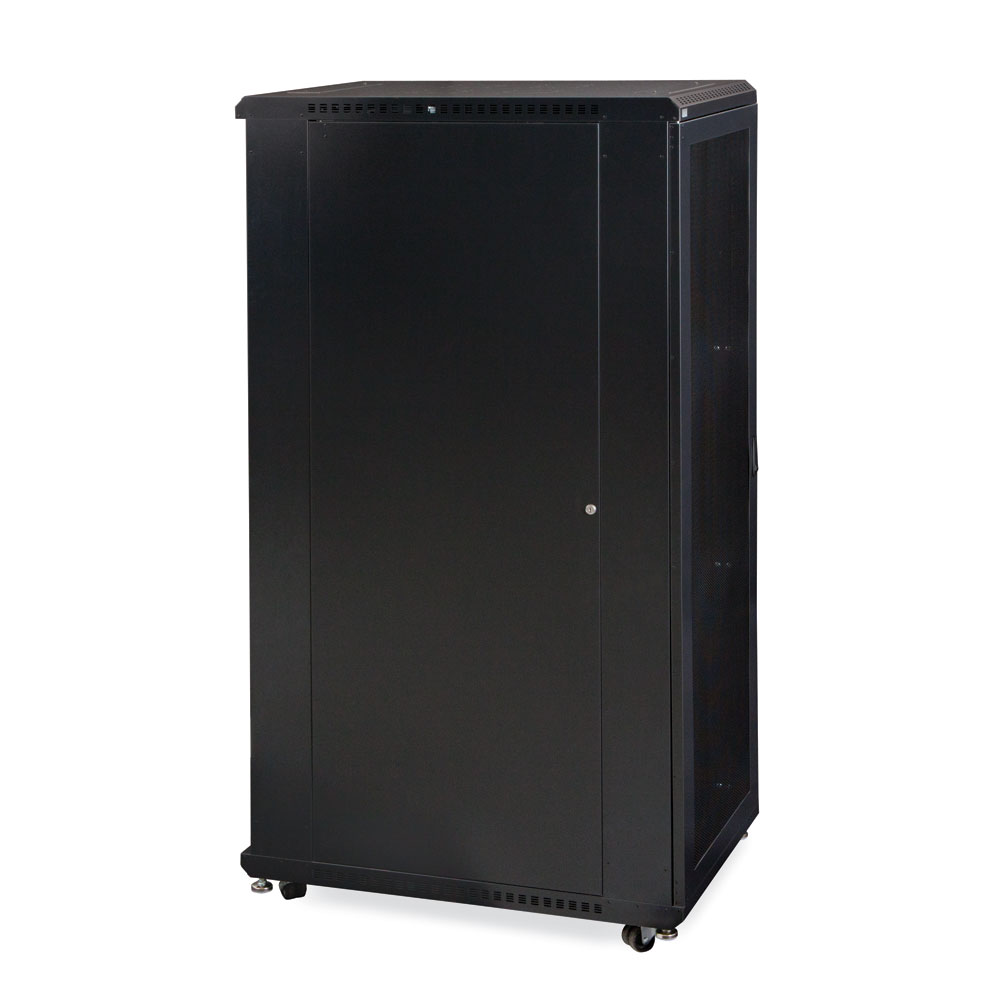

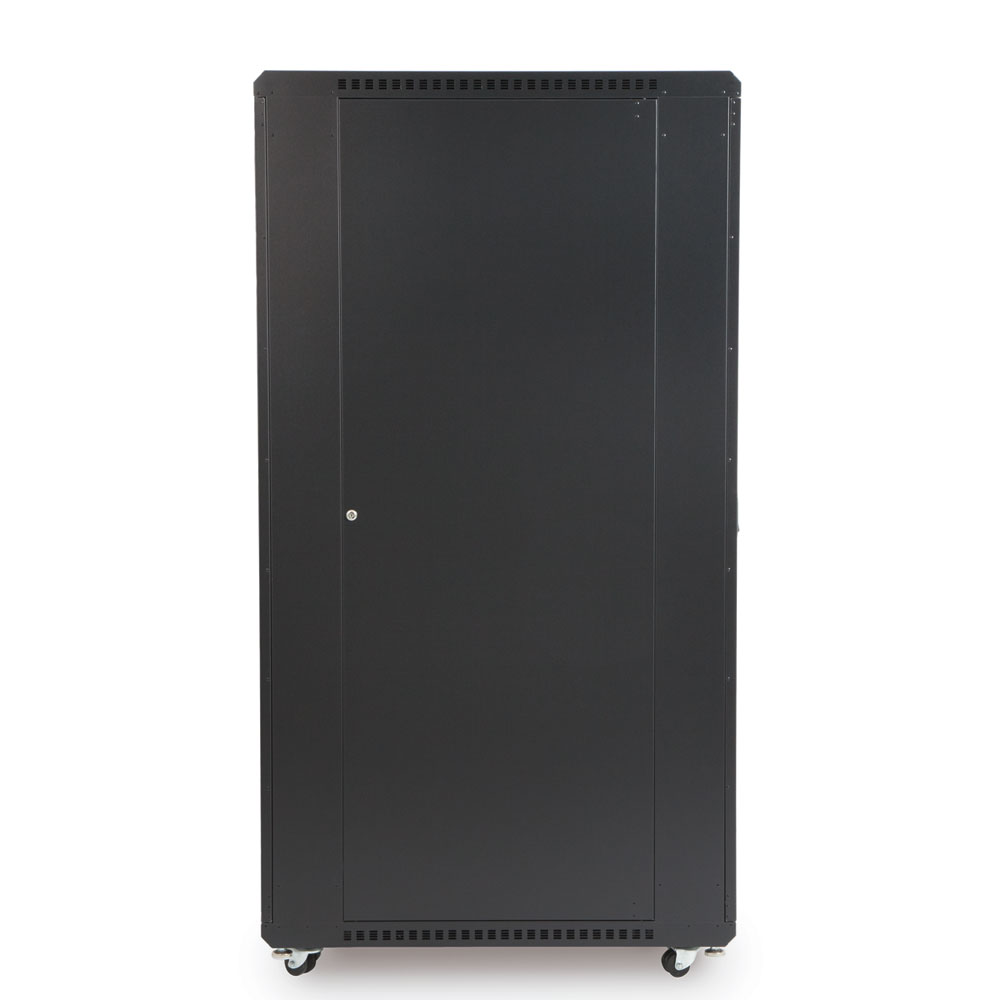

Locking, Removable Side Panels

For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.

Adjustable Rails

Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.

Secured System

Both doors are equipped with locks to help protect and secure your valuable equipment.

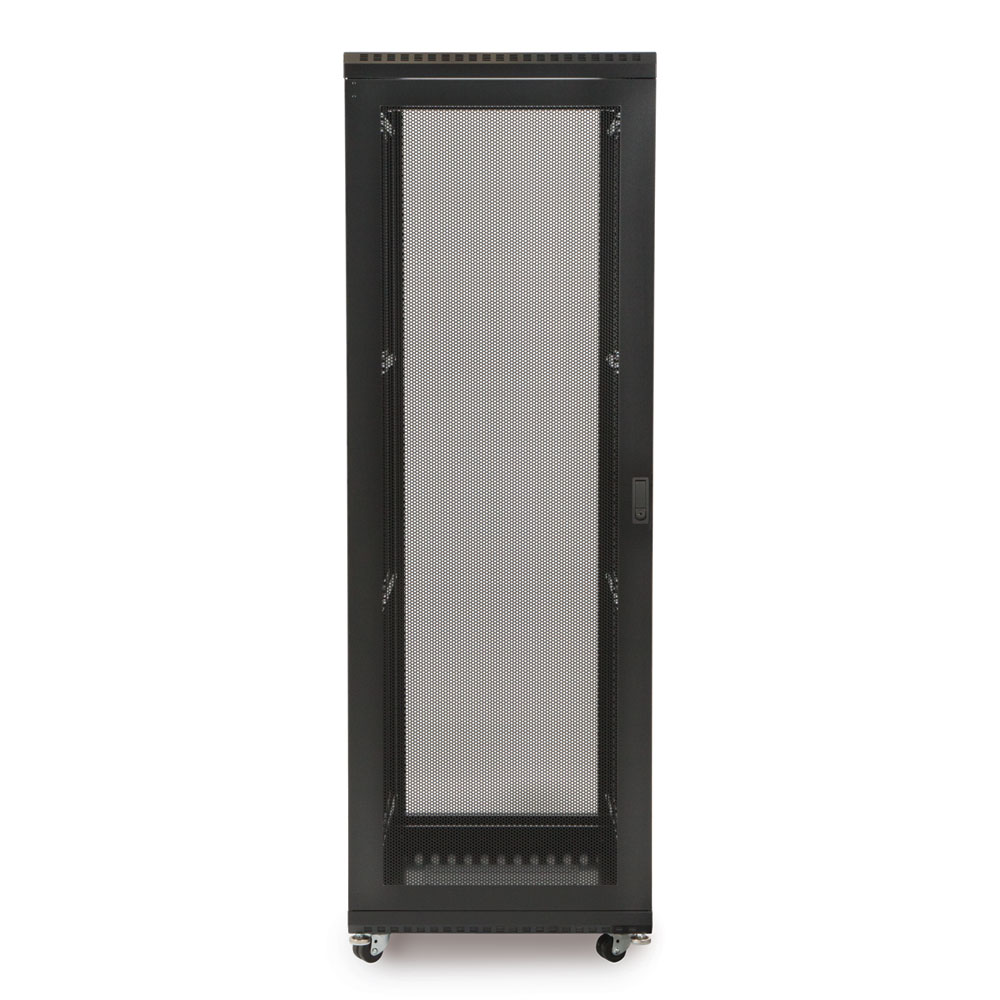

Locking Vented Doors

The locking perforated doors promote better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.

Specifications
Part Number 3107-3-001-37
Width 24"
Depth 37.72" (Useable 36.00")
Height 71.75"
Weight 193.00 lbs.
Shipping Dimensions 32" L x 45" W x 79" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Medium Texture Black
UPC 879447004625
Warranty 5-Year Limited Warranty
Shipping Method LTL Freight
TAA Compliant Yes
What's in the Box
Item Quantity
37U LINIER Server Cabinet - Vented/Vented Doors - 36" Depth 1
Resources
Title Type Date Version File Size
Title
37U LINIER® Server Cabinet - Vented/Vented Doors - 36" Depth (3107-3-001-37) Data Sheet
Type
Data Sheet
Date
05/19
Version
1.0
File Size
242.64 KB
Download
Title
37U LINIER® Server Cabinet - Vented/Vented Doors - 36" Depth (3107-3-001-37) Instructions
Type
Instructions
Date
10/21
Version
1
File Size
273.70 KB
Download
Title
3107-3-001-37.STEP
Type
3D CAD
Date
12/19
Version
1
File Size
3.95 MB
Download
Title
Full Size Linier® Server Cabinet Cut Sheet 36"
Type
Cut Sheet
Date
02/24
Version
1
File Size
293.83 KB
Download
