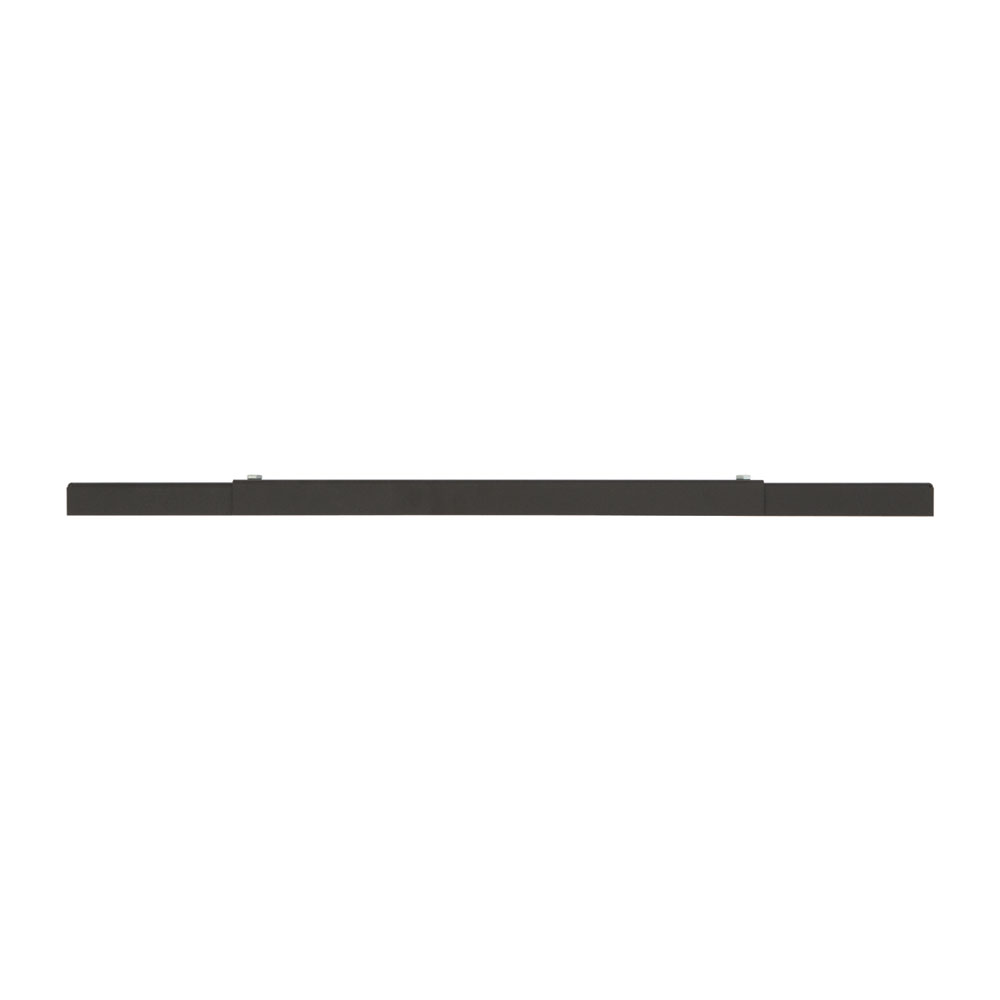

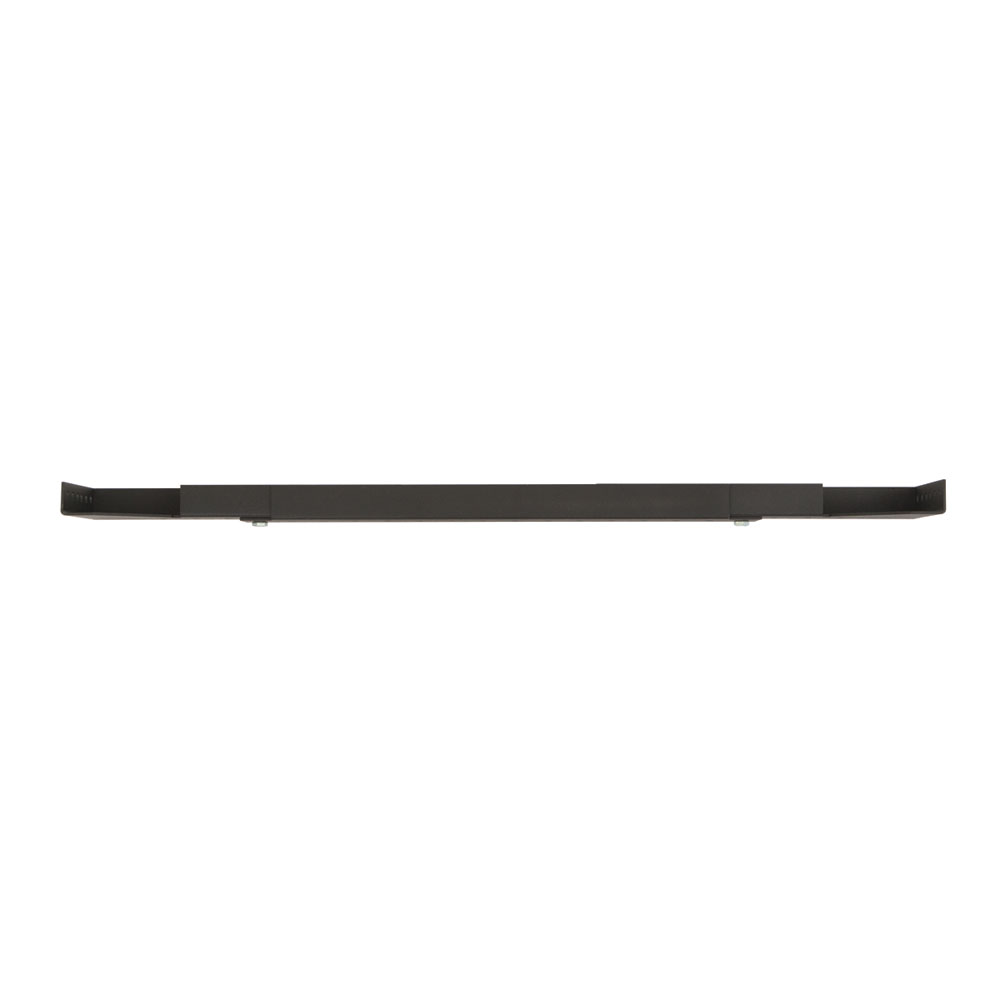

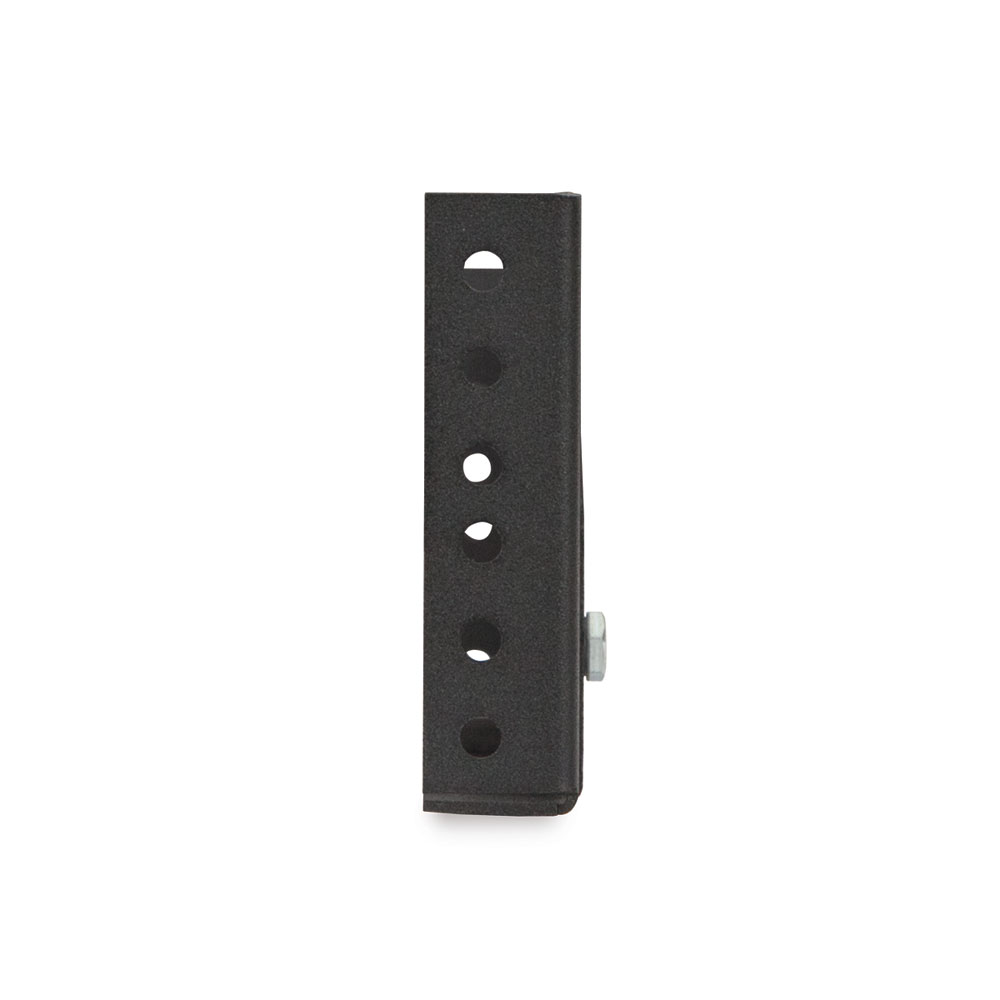

4-Piece Rack Conversion Kit
4-Piece Rack Conversion Kit
Whether anchoring two racks together or bracing them to the wall, the 4-Piece Conversion Kit provides a safe and dependable solution.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Description
The Kendall Howard 4-Piece Conversion Kit is one of the handiest bracing systems on the market today. Not only do conversion kits anchor a 2-post rack to the wall, but they also limit the risk of the rack tipping over. The 4-Piece Conversion Kit allows you to also upgrade any 2-post rack to a 4-post rack with an adjustable depth of 24 - 40". If you have to move or replace the rack, the conversion kit will help keep repair costs low because patching holes typically costs significantly less than removing anchors. Whether anchoring two racks together or bracing them to the wall, the 4-Piece Conversion Kit provides a safe and dependable solution.
- Provides added support to a 2-post rack
- Creates a 4-post rack with two 2-post racks
- Adjustable from 20" to 35"
- Mounting hardware not included
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
Features
Adjustable Depth
Each support bracket can adjust from 20″ to 35″ deep to suit your particular installation requirements.
Added Support
This easy to use bracket system adds strength and stability to any 2-post rack and it will convert two 2-post racks into one 4-post rack.
Cable Lacing Available
These horizontal brackets provide a great option for securing heavy and obtrusive trunk cabling up and out of the way.
Only Uses 2U of Space
The support braces mount directly on to the vertical rack rails with standard rack hardware. Each brace requires only 2U of rack space leaving you plenty of room for your network, A/V, and other rackmount equipment.
Specifications
| Part Number | 1927-3-004-00 |
| Width | 1" |
| Depth | Adjustable 20" - 35" |
| Height | 4" |
| Weight | 13.50 lbs. |
| Shipping Dimensions | 21" L x 7" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000429 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
What's in the Box
| Item | Quantity |
|---|---|
| Conversion Kit Left Arms | 4 |
| Conversion Kit Right Arms | 4 |
| Conversion Kit Center Arms | 4 |
| Assembly Parts Pack | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 4-Piece Rack Conversion Kit (1927-3-004-00) Cut Sheet |
Type Cut Sheet |
Date 05/19 |
Version 1.0 |
File Size 849.74 KB |
Download |
Title 4-Piece Rack Conversion Kit (1927-3-004-00) Data Sheet |
Type Data Sheet |
Date 10/19 |
Version 1 |
File Size 50.29 KB |
Download |
Title 4-Piece Rack Conversion Kit (1927-3-004-00) Instructions |
Type Instructions |
Date 11/21 |
Version 1 |
File Size 418.08 KB |
Download |
Title 1927-3-004-00.STEP |
Type 3D CAD |
Date 10/20 |
Version 1 |
File Size 276.70 KB |
Download |
