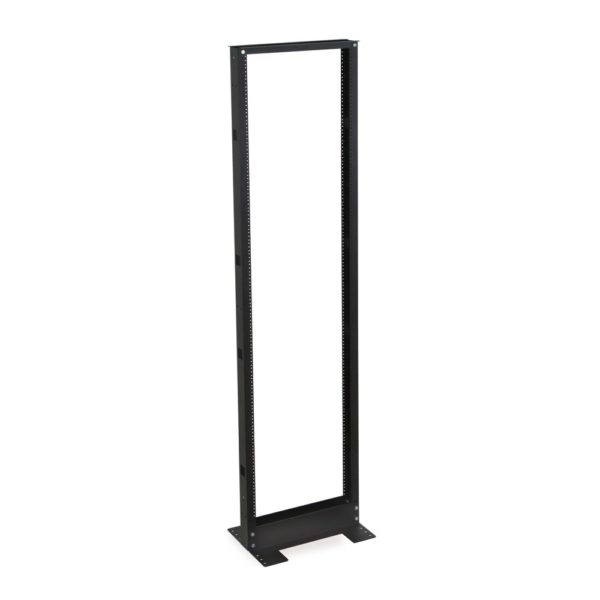

45U 2-Post Relay Rack

Item #:1911-3-200-45

45U 2-Post Relay Rack

Item #:1911-3-200-45
The 2-Post Relay Rack is the ideal racking solution. Its sturdy construction makes a rigid, reliable rack that can hold up to 800 lbs. of equipment.
Made in the USA
Limited Lifetime Warranty
Certifications
19" EIA compliant
Add to List
Description
Whether working with a wiring closet, telecom room, or data center, the Kendall Howard 2-Post Relay Rack is the ideal racking solution. Its sturdy construction makes a rigid, reliable rack that can hold up to 800 lbs. of equipment, including switches, patch panels, UPS’s, rack shelves, rackmount keyboard trays, and more. The rack features four ¼-20 x 0.5”grounding studs on the inside of the rails that allow you to ground your equipment directly to those studs. Also included with the rack are serrated tooth washers that, when tightened, dig in and remove paint from the rack,establishing electrical continuity throughout the rack. When multiple 2-Post Relay Racks are needed, simply gang them together with the ganging holes on both sides of the frame. You can even gang both the 24U and 45U size racks together because the holes align. Cable pass through slots are also included on the frames to allow cabling to pass through between racks. The completely open top design allows the 2-Post Relay Rack to accept cable bundles. It also makes the rack compatible with most ladder racks and coordinating accessories. When you need a 2-post rack that offers both strength and dependability, there is none other than the 2-Post Relay Rack.
  • 10-32 tapped rails
  • Gangable
  • Ships knocked down
  • Constructed of 14 gauge steel
Features
Durability

The 2-Post Relay Rack’s welded L-bracket base and cold rolled steel design forms a sturdy, reliable rack. To maintain its weight capacity, the rack must be bolted or secured to the floor. We always recommend installing your heaviest equipment at the lowest points on the rack.

Gangable

Ganging holes on both sides of the rack make it easy to gang and secure multiple racks together. The sides also feature cable pass through holes to allow cabling to pass from one rack to the next.

Electrical Grounding

The rack features four ¼-20 x 0.5” grounding studs on the inside of the rails. These studs allow you to ground your equipment directly to the stud or with the use of bus bars, not included. The rack also includes serrated tooth washers to allow the frame to be grounded during the assembly process.

Open Top Design

The 2-Post Relay Rack’s completely open top allows for smaller trunk cabling, and makes the rack compatible with most ladder racks and accessories.

Specifications
Part Number 1911-3-200-45
Width 20.81"
Depth 15.04"
Height 84.12"
Weight 40.00 lbs.
Shipping Dimensions 85.75” L x 7.25” W x 5.5” H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
UPC 879447005639
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
What's in the Box
Item Quantity
45U Rails 2
L Bases 2
Upper Support Brackets 2
1/4 - 20 Grounding Studs 4
10-32 Rack Screws 25
Assembly Hardware Pack 1
