45U LINIER® Server Cabinet - No Doors With No Side Doors- 24" Depth
45U LINIER® Server Cabinet - No Doors With No Side Doors- 24" Depth
This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment.
Made in the USA
Limited Lifetime Warranty
Description
Setting itself apart from the 3100 series, the LINIER® 3180 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum air flow for your network equipment. Built with a 24" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3180 LINIER® series is your answer.
- No doors or side panels
- 24" depth (Also available with a 36" depth)
- Other sizes available: 22U, 27U, 37U, and 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- Top includes removable laser knockouts
- Includes two sets of adjustable cage nut style mounting rails
- Includes preinstalled casters and levelers
- 5-Year Limited Warranty
Features

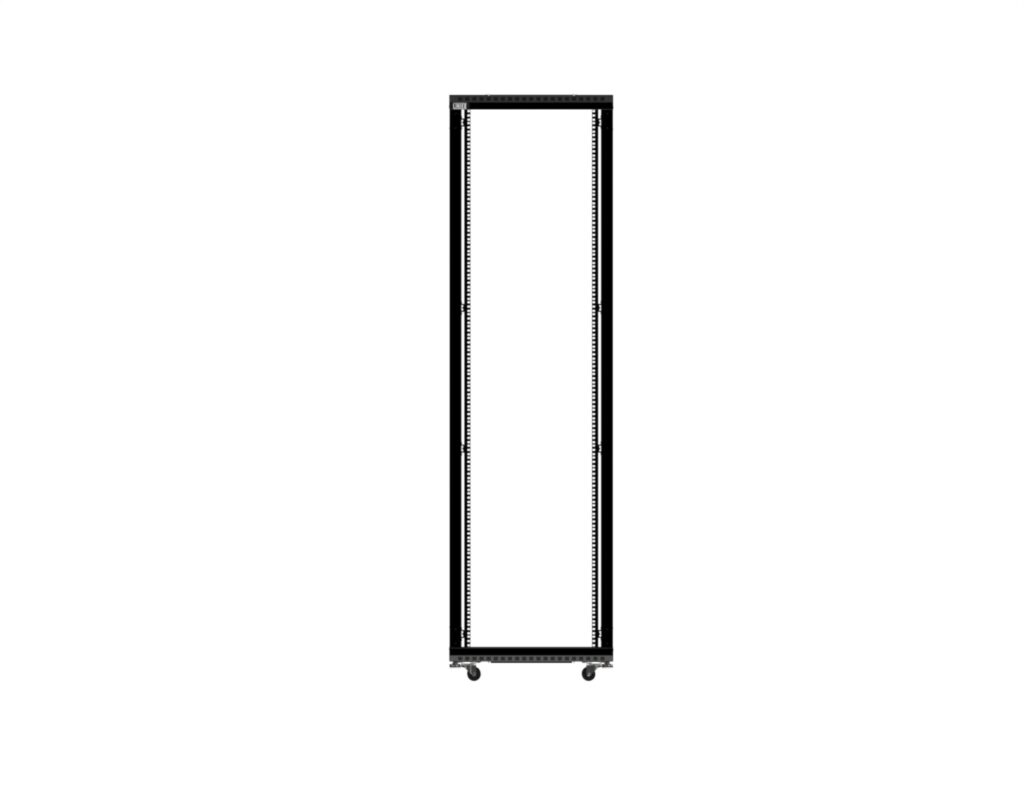

Open Frame Design
The open frame design allows for maximum air flow for your network equipment.
Easy Installation
Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

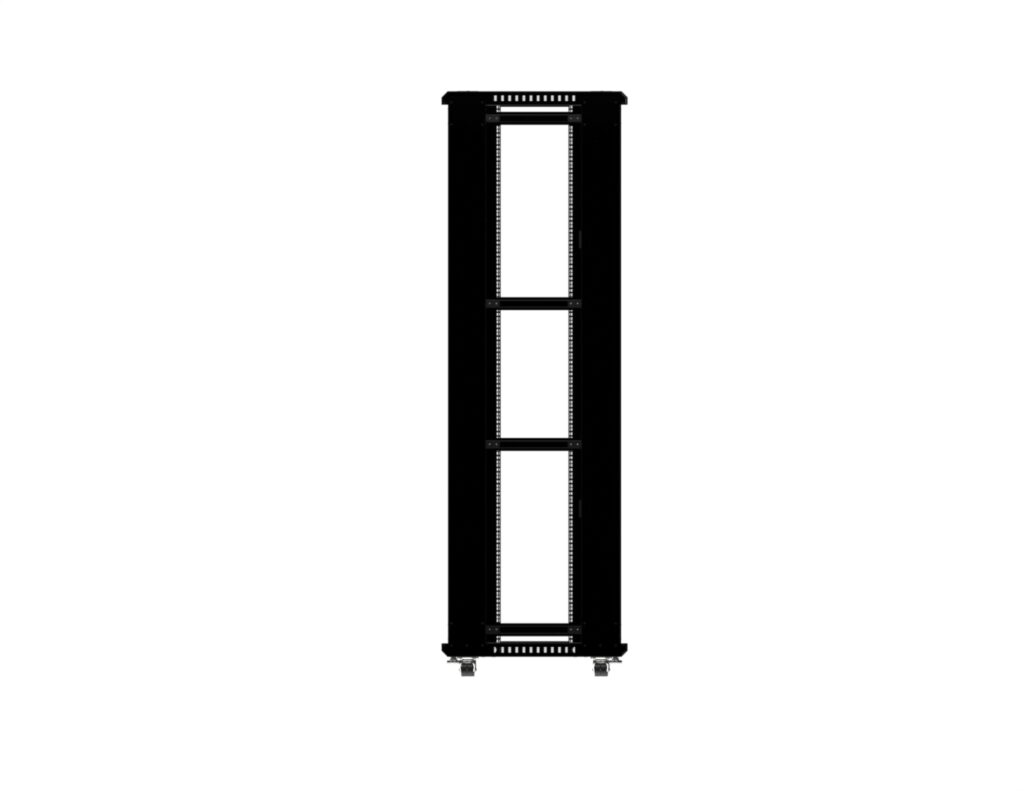

Adjustable Rails
Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24″ for versatile mounting options..

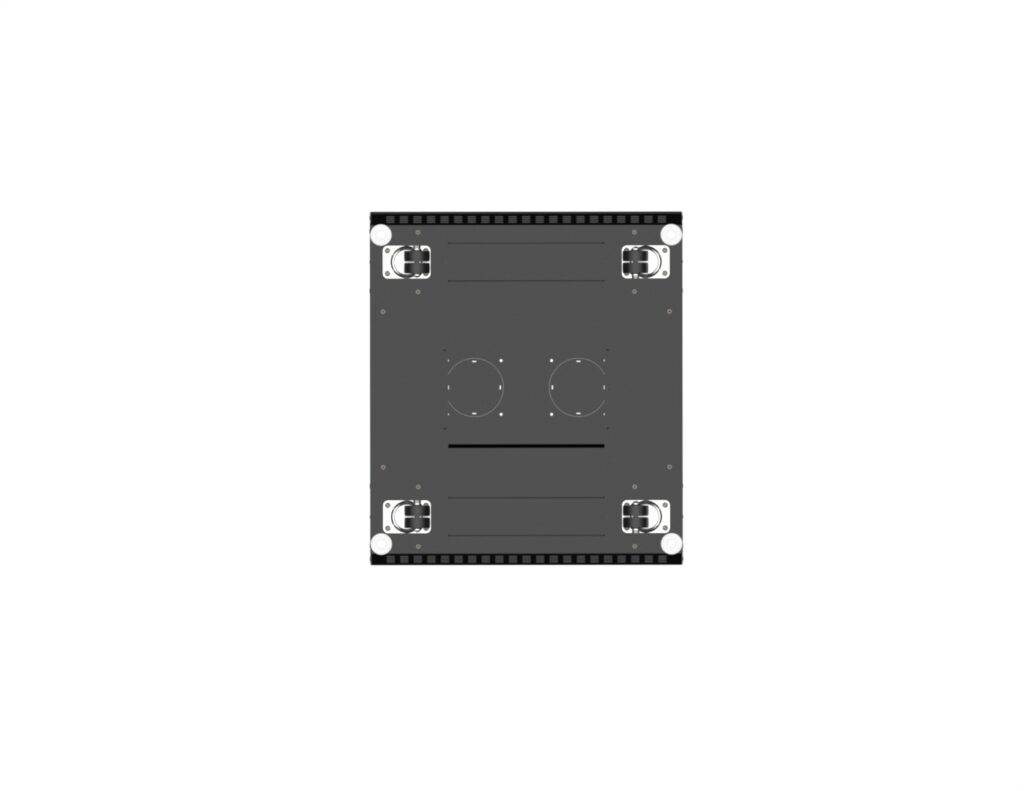

Cable and Fan Knockouts
There are numerous cable entry points on both the top and bottom of this open frame rack. There are also four large knockouts on the top of the frame to install fans, or for added cable pass through.
Specifications
| Part Number | 3180-3-024-45 |
| Width | 24" |
| Depth | 27" (Useable 24") |
| Height | 86 w/ casters |
| Weight | 150 |
| Shipping Dimensions | 32" X 45" X 91" |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black |
| UPC | 879447006513 |
| Warranty | 5-Year Limited Warranty |
| Shipping Method | LTL Freight |
What's in the Box
| Item | Quantity |
|---|---|
| 45U LINIER® Server Cabinet - No Doors With No Side Doors- 24" Depth | 1 |
Resources
| Title | Type | Date | Version | File Size | |
|---|---|---|---|---|---|
Title 45U LINIER® Server Cabinet - No Doors With No Side Doors- 24" Depth (3180-3-024-45) STEP |
Type 3D CAD |
Date 02/24 |
Version 1 |
File Size 4.24 MB |
Download |
Title 45U LINIER® Server Cabinet – No Doors With No Side Doors- 24″ Depth Instructions |
Type Instructions |
Date 02/24 |
Version 1 |
File Size 273.70 KB |
Download |
Title 3180-3-024-45 DATA SHEET |
Type Data Sheet |
Date 02/24 |
Version 1 |
File Size 119.14 KB |
Download |
Title Full Size Linier® Server Cabinet Cut Sheet 24" |
Type Cut Sheet |
Date 11/23 |
Version 1 |
File Size 362.21 KB |
Download |
